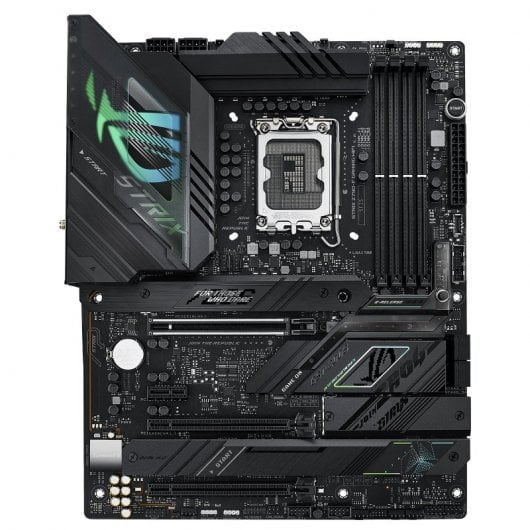

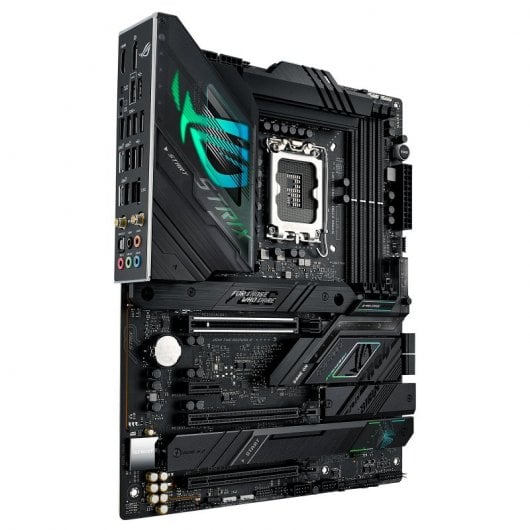

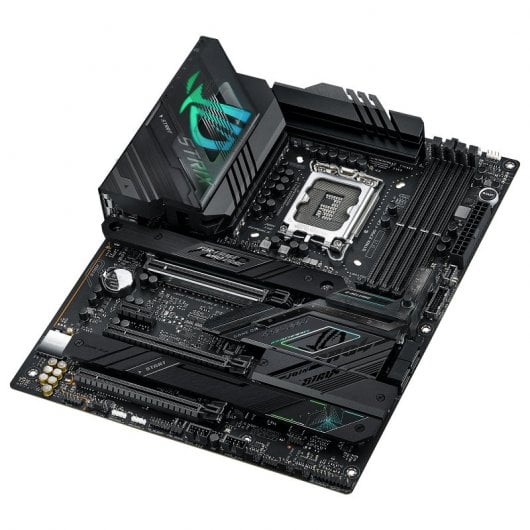

ASUS ROG STRIX Z790-F GAMING WIFI Reacondicionado

Tarjeta madre Intel® Z790 LGA 1700 ATX con 16 + 1 fases de poder, DDR5, cuatro puertos M.2, SafeSlot PCIe® 5.0 con Q-Release, Wi-Fi 6E, dos puertos Thunderbolt™ 4, USB 3.2 Gen 2x2 Type-C® trasero y puerto para panel frontal con PD 3.0 hasta 30W, AI Overclocking, AI Cooling II e iluminación Aura Sync RGB

Características

• Socket Intel® LGA 1700: Listo para procesadores Intel® Core de 13a generación y procesadores Intel Core™, Pentium® Gold y Celeron® de 12.ª generación.
• Solución de alimentación dominante: 16 + 1 fases de poder combinadas clasificadas para 90A con conectores de alimentación dobles ProCool II, chokes de aleación de alta calidad y condensadores metálicos de primera calidad para admitir procesadores multinúcleo.
• Temperaturas VRM optimizadas: Disipadores de calor masivos integrados con la cubierta de E/S, unidos por un tubo de calor en forma de L.
• Compatibilidad con M.2 de próxima generación: Puerto M.2 PCIe® 4.0 con disipador y placa posterior, y tres puertos PCIe 4.0 M.2, todos con disipadores.
• Abundante conectividad: Puerto USB 3.2 Gen 2x2 Type-C® posterior y puerto adicional en el panel frontal con PD 3.0 de hasta 30W, puertos USB 3.2 Gen 2 y Gen 1, PCIe 5.0 x16 SafeSlot, HDMI® 2.1 y DisplayPort™ 1.4.
• Redes de alto rendimiento: Intel Wi-Fi 6E (802.11ax) integrado, Marvell® AQtion 10 Gb, Intel 2.5 Gb Ethernet y ASUS LANGuard.
• Control inteligente: AI Overclocking, AI Cooling II, AI Networking y Two-Way AI Noise Cancelling exclusivos de ASUS para simplificar la configuración y mejorar el rendimiento.
• Audio inmersivo: ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III.
• Personalización inigualable: Iluminación Aura Sync RGB exclusiva de ASUS, que incluye un puerto RGB y tres puertos Gen 2 direccionables.
• Diseño de fácil montaje: ROG Water Cooling Zone, PCIe Slot Q-Release, M.2 Q-Latch, placa de E/S premontada, Q-Code, Q-LED, botón FlexKey , botón Inicio, botón BIOS FlashBack™ y botón Clear CMOS.
• Software de renombre: Suscripción de prueba AIDA64 Extreme de 1 año incluida y panel intuitivo UEFI BIOS con MemTest86 integrado.

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z790 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR5
  • 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
  • Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.
  • ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset
  • 2 x PCIe 4.0 x16 slots (support x4 mode)
  • 1 x PCIe 3.0 x1 slot
  • * Please check the PCIe bifurcation table
  • on the support site (https://www.asus.com/support/FAQ/1037507/).
  • ** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
  • Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth® v5.3
  • * WiFi 6E 6GHz regulatory may vary between countries.
• USB
  • Rear USB (Total 12 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers supports 4 additional USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • - Impedance sense for front and rear headphone outputs
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • - SupremeFX Shielding Technology
  • - Savitech SV3H712 AMP
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Audio cover
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Gold-plated audio jacks*
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™  button
  • 1 x Clear CMOS button
  • *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connectors
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
  • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Start button
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™  header
  • Special Features
  • Extreme Engine Digi+
  • - 5K Black Metallic Capacitors
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - PCIe Slot Q-Release
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink backplate
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Clear CMOS button
  • - CPU Socket lever protector
  • - ProCool II
  • - Pre-mounted I/O shield
  • - SafeSlot
  • - SafeDIMM
  • Aura Sync
  • - Aura RGB header
  • - Addressable Gen 2 headers
  • Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
  • - Support: up to 30W charging
  • - Output: 5/9V max. 3A, 12V max. 2.5A
  • - Compatible with PD3.0
• Software Features
  • ROG Exclusive Software
  • - GameFirst VI
  • - ROG CPU-Z
  • - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • - Sonic Radar III
  • - DTS® Sound Unbound
• ASUS Exclusive Software
  • Armoury Crate
  • - AIDA64 Extreme (60 days free trial)
  • - Aura Creator- Aura Sync
  • - Xpert 4 (with AI Cooling II)
  • - Power Saving
  • - Two-Way AI Noise Cancellation
  • AI Suite 3
  • - Easy Optimization with AI Overclocking
  • - TPU
  • - DIGI+ VRM
  • - Turbo app
  • - PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • FlexKey
  • MemTest86
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
  • 1 x DDR5 fan holder
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties package
  • 1 x M.2 backplate Q-Latch package
  • 1 x M.2 Q-Latch package
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 1 x ROG Strix thank you card
  • 2 x M.2 Rubber Packages
  • 1 x M.2 backplate Rubber
  • PackageDocumentation
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
