Alquiler ASUS PRIME Z790-P

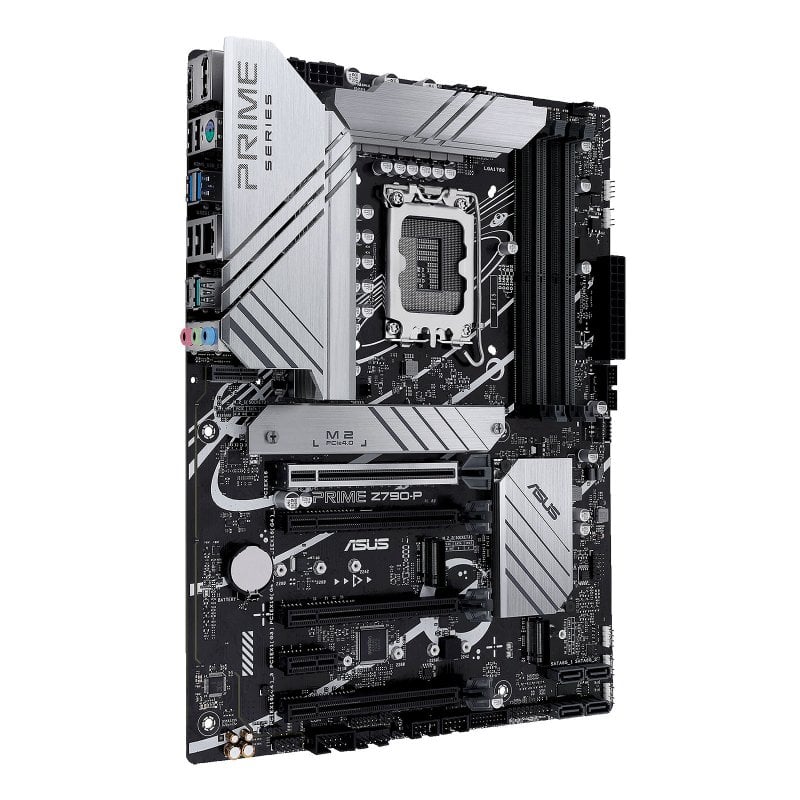

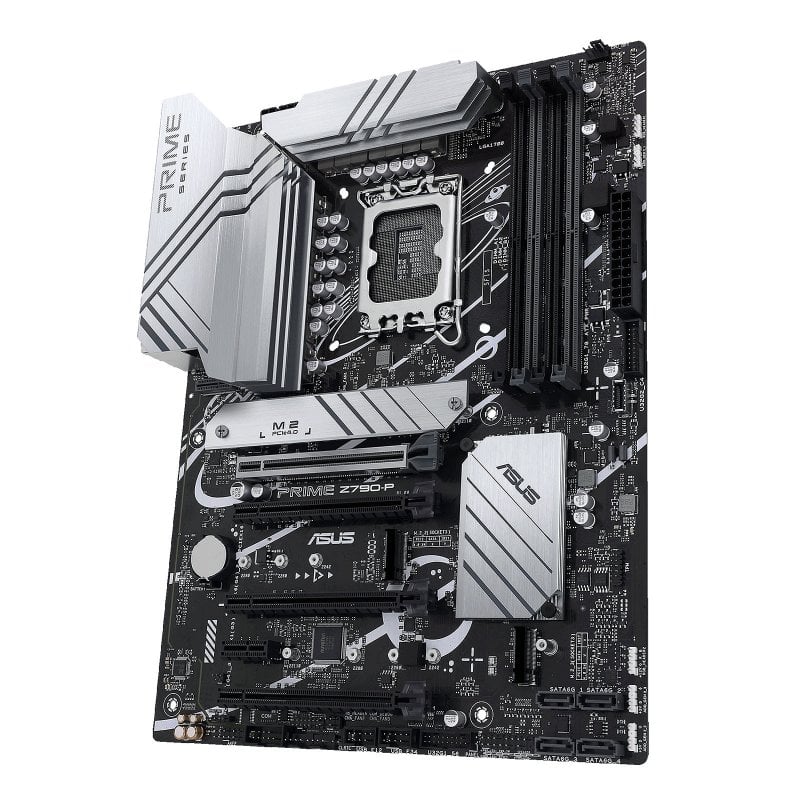

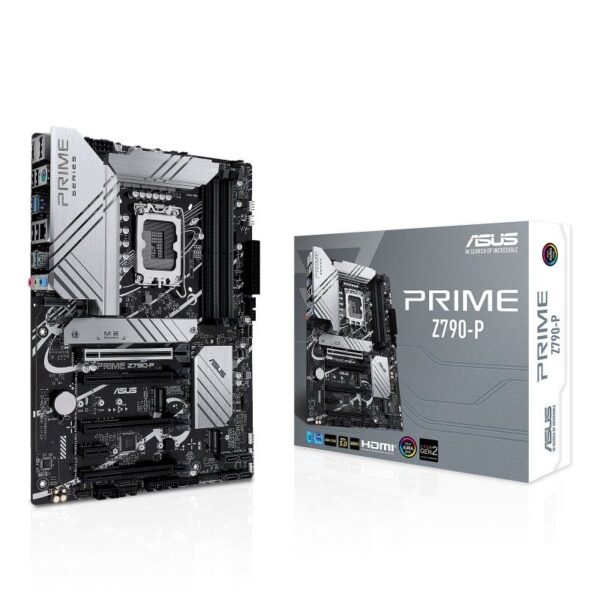

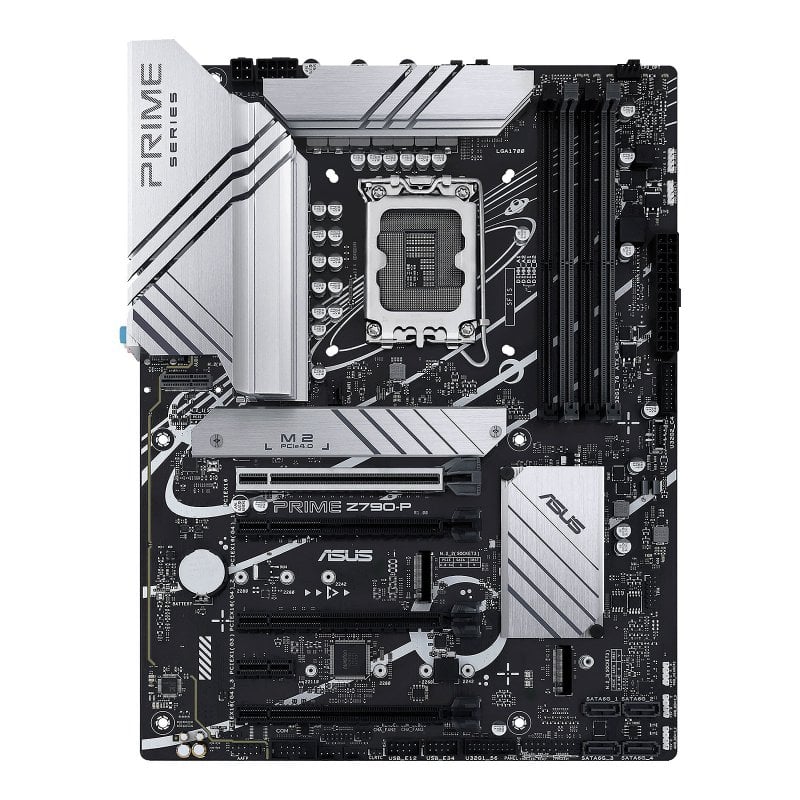

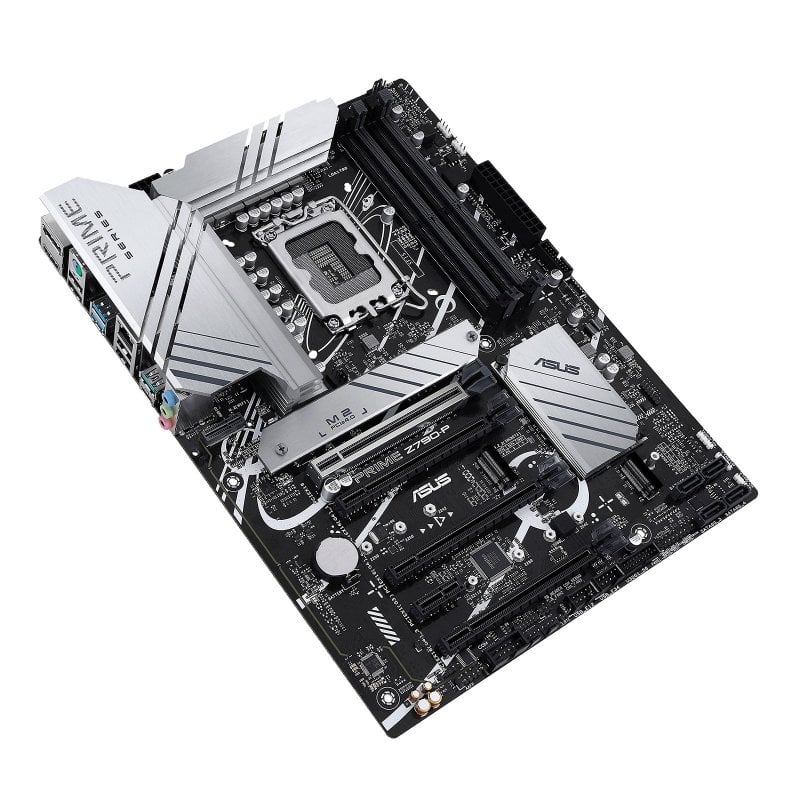

ASUS Prime Z790-P, una placa madre Intel Z790 LGA 1700 ATX con PCIe® 5.0, tres ranuras M.2, 14+1 DrMOS, DDR5, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2×2 Type-C®, USB frontal 3.2 Gen 2 Type-C®, compatibilidad con Thunderbolt? (USB4®), Aura Sync

Características

• Zócalo Intel® LGA 1700: Listo para procesadores Intel® de 12.ª y 13.ª generación
• Solución de alimentación mejorada: 14+1 DrMOS, PCB de 6 capas, conectores ProCool, estranguladores de aleación y condensadores duraderos para un suministro de energía estable
• Conectividad de próxima generación: memoria DDR5, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, USB 3.2 Gen 2 Type-C® en el panel frontal, compatibilidad con encabezado Thunderbolt? (USB4®), 3 PCIe® 4.0 M .2
• Tecnología de memoria exclusiva: ASUS Enhanced Memory Profile II y ASUS OptiMem II
• Refrigeración integral: disipadores de calor VRM grandes, disipador de calor M.2 flexible, disipador de calor PCH, encabezados de ventilador híbrido y Fan Xpert 4 con AI Cooling II

Especificaciones:

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core? Processors & 12th Gen Intel® Core?, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z790 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors*
  • 1 x PCIe 5.0 x16 slot
  • Intel® Z790 Chipset
  • 3 x PCIe 4.0 x16 slots (support x4 mode)
  • 1 x PCIe 3.0 x1 slot
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth
  • Vertical M.2 slot only (Key E, CNVi & PCIe)*
  • *Wi-Fi module is sold separately.
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
  • * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • – Audio Shielding
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Vertical M.2 slot (Key E)
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-5pin System Panel header
  • 1 x Thunderbolt? (USB4®) Header
• Special Features
  • ASUS 5X PROTECTION III
  • – DIGI+ VRM (- Digital power design with DrMOS)
  • – LANGuard
  • – Overvoltage Protection
  • – SafeSlot Core+
  • – Stainless-Steel Back I/O
  • ASUS Q-Design
  • – Q-DIMM
  • – Q-Slot
  • – Q-LED Core
  • ASUS Thermal Solution
  • – Flexible M.2 heatsink
  • – VRM heatsink design
  • ASUS EZ DIY
  • – ProCool
  • Aura Sync
  • – Aura RGB headers
  • – Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – Aura Sync
  • – Fan Xpert 4 (with AI Cooling II)
  • – Power Saving
  • AI Suite 3
  • -TurboV EVO
  • -PC Cleaner
  • -DIGI+ VRM
  • ASUS CPU-Z
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 2 x Screw packages for M.2 SSD
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
