Alquiler ASUS PRO WS WRX90E-SAGE SE Reacondicionado

La placa base para estaciones de trabajo ASUS Pro WS WRX90E-SAGE SE está diseñada para usuarios que buscan un alto rendimiento. Es compatible con los potentes procesadores multinúcleo AMD Ryzen Threadripper PRO 7000 WX en zócalo AMD sTR5, memoria RAM DDR5 de 4 canales, unidades PCIe 5.0 M. 2 y tarjetas gráficas PCI-Express 5. 0 para un rendimiento excepcional. Estas increíbles características te permitirán montar una estación de trabajo superpotente preparada para el futuro, diseñada para Realidad Virtual, multitarea ultraintensiva, edición digital o edición de música y vídeo.

Características:

• El zócalo AMD sTR5 admite CPU de hasta 96 núcleos: listo para procesadores AMD Ryzen? Threadripper? PRO 7000 WX-Series.
• Conectividad ultrarrápida: siete ranuras PCIe® 5.0 x16, dos puertos LAN de 10 Gb, cuatro ranuras M.2, dos USB4® traseros de 40 Gbps Type-C® y compatibilidad con SlimSAS NVMe.
• Overclocking de CPU y memoria: Compatibilidad con módulos de memoria DDR5 ECC R-DIMM de hasta 2 TB (1DPC).
• Diseño térmico y de potencia robusto: 32+3+3+3 etapas de potencia con dos conectores de alimentación de 8 pines para la CPU, refrigeración VRM masiva, chipset y disipadores térmicos M.2 con ventiladores activos y almohadilla térmica M.2.
• PCIe Q-release Slim: retire la tarjeta gráfica tirando de ella directamente hacia arriba, en lugar de presionar un pestillo PCIe.
• Administración remota IPMI de nivel de servidor y BMC integrado: nivel de hardware y software con un enlace de puerto LAN dedicado a un controlador BMC AST2600 integrado, además del software ASUS Control Center Express para monitoreo y administración en tiempo real.
• Estabilidad confiable: validado para una amplia compatibilidad con las últimas tecnologías, una lista QVL amplia y probado para funcionamiento 24 horas al día, 7 días a la semana.

Especificaciones ASUS PRO WS WRX90E-SAGE SE

• CPU
  • AMD Socket sTR5 for Ryzen?  Threadripper?  PRO 7000 WX-Series*
  • *Refer to www.asus.com for CPU support list.
• Chipset
  • AMD WRX90 Chipset
• Memory
  • 8 x DIMM slots, DDR5, ECC Registered Memory*
  • 8 Channel Memory Architecture
  • *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Expansion Slots
  • AMD Ryzen? Threadripper? PRO 7000 WX-Series Processors*
  • 6 x PCIe 5.0 x16 slots
  • 1 x PCIe 5.0 x16 slot (x8 mode)
  • *Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
  • **To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
  • AMD Ryzen? Threadripper? PRO 7000 WX-Series Processors*
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • AMD WRX90 Chipset
  • 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
  • 4 x SATA 6Gb/s ports
  • * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
  • 1 x Intel® dual 10Gb Ethernet
  • ASUS LANGuard
• USB
  • Rear USB (Total 9 ports)
  • 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 ports (2 x Type-A )
  • Front USB (Total 7 ports)
  • 1 x USB 20Gbpsconnector (supports USB Type-C®)
  • 1 x USB 5Gbps header supports 2 additional USB 5G ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek ALC1220P Surround Sound High Definition Audio CODEC*
  • – Impedance sense for front and rear headphone outputs
  • – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • – Supports up to 32-Bit/192 kHz playback
  • Audio Features
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
  • – Unique de-pop circuit
  • *A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
  • * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

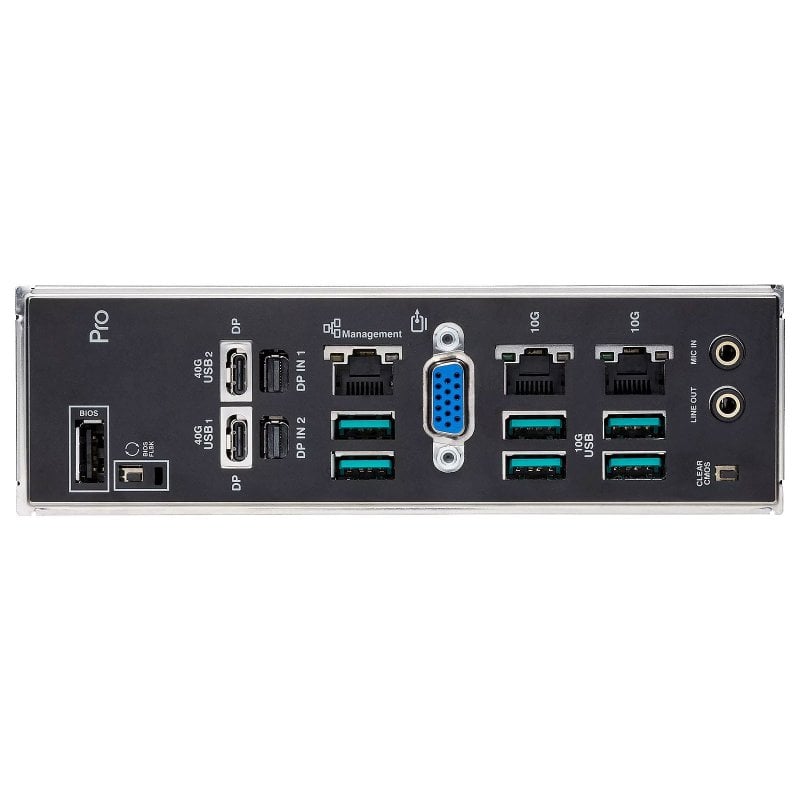

• Back Panel I/O Ports
  • 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 port (2 x Type-A)
  • 1 x VGA port
  • 2 x mini DisplayPort IN
  • 1 x Intel® dual 10Gb Ethernet ports
  • 1 x Realtek 1Gb Ethernet port
  • 2 x Audio jacks
  • 1 x BIOS FlashBack?  button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x W_PUMP+ header
  • 5 x 4-pin Chassis Fan headers
  • 2 x 4-pin VRM Fan header (with VRM FAN onboard)
  • 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
  • Power related
  • 1 x 24-pin Main Power connectors
  • 2 x 8-pin +12V Power connectors
  • 2 x 8-pin PCIe to CPU power connectors
  • 2 x 8-pin PCIe Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • 2 x SlimSAS port
  • USB
  • 1 x USB 20Gbps connector supports USB Type-C®
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 1 x Chassis intrusion header
  • 1 x COM port header
  • 1 x FlexKey button
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x LN2 mode jumper
  • 1 x M.2 slot (Key E)
  • 7 x ProbeIt measurement points
  • 1 x ReTry button
  • 1 x RSVD switch
  • 1 x Slow mode switch
  • 1 x Safe boot button
  • 1 x SPI TPM header (14-1 pin)
  • 1 x Start button
  • 1 x 10-1 pin system panel header
  • 1 x Thermal sensor header
• Special Features
  • ASUS 5X PROTECTION III
  • – DIGI+ VRM (- Digital power design with SPS)
  • – ESD Guards
  • – LANGuard
  • – Overvoltage protection
  • – SafeSlot
  • – Stainless-steel back I/O
  • ASUS Q-Design
  • – M.2 Q-Latch
  • – Q-Release Slim (with PCIe SafeSlot)
  • – Q-Code
  • – Q-Connector
  • – Q-DIMM
  • – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – Q-Slot
  • ASUS Thermal Solution
  • – M.2 heatsink backplate and onboard thermal pads
  • – M.2 heatsink
  • – Steel backplate
  • – VRM heatsink design with active fans
  • ASUS EZ DIY
  • – BIOS FlashBack? button
  • – BIOS FlashBack? LED
  • – Clear CMOS button
  • – ProCool II
  • – Pre-mounted I/O shield
  • – SafeSlot
  • – SafeDIMM
  • Bespoke Motherboard Design & Business Focused Features
  • – 24/7 Reliability
  • – Overcurrent Protection
  • BMC Related
  • 1 x BMC switch
  • 1 x BMC LAN fixed IP switch
  • 1 x IPMI switch
  • 1 x Message LED header
  • 1 x microSD card socket
  • 2 x LAN LED headers
  • 1 x Location LED header
  • 1 x Location button header
  • 1 x PSU_SMB header
  • 1 x SMART_PSU switch
  • 1 x VGA switch
  • 1 x VGA header (Dedicated Management for AST2600)
  • 1 x VPP_I2C header
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – Fan Xpert 4
  • ASUS CPU-Z
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 for Deluxe (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUSTeK. EzFlash Utility
  • FlexKey
  • IT Management software supported
  • – ASUS Control Center Express(ACCE)
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS(text-based)
• Manageability
  • WOL by PME, PXE (UEFI mode)
• Accessories
  • Cables
  • 2 x PCIe 8-pin to CPU power cables
  • 1 x 24-pin power cable (Y cable)
  • 2 x Mini DisplayPort cables
  • 4 x SATA 6Gb/s cables
  • 1 x Thermistor cable pack
• Miscellaneous
  • 1 x Q-connector
  • 1 x M.2 Q-Latch package
  • 1 x AMI license sticker
  • 4 x M.2 rubber packages
  • 1 x Screw package for M.2 Key E
• Documentation
  • 1 x ACC Express Activation Key Card
  • 1 x Quick start guide
• Operating System
  • Windows® 11
  • Windows® 10 64-bit
• Form Factor
  • EEB Form Factor
  • 12 inch x 13 inch (30.5 cm x 33 cm)
