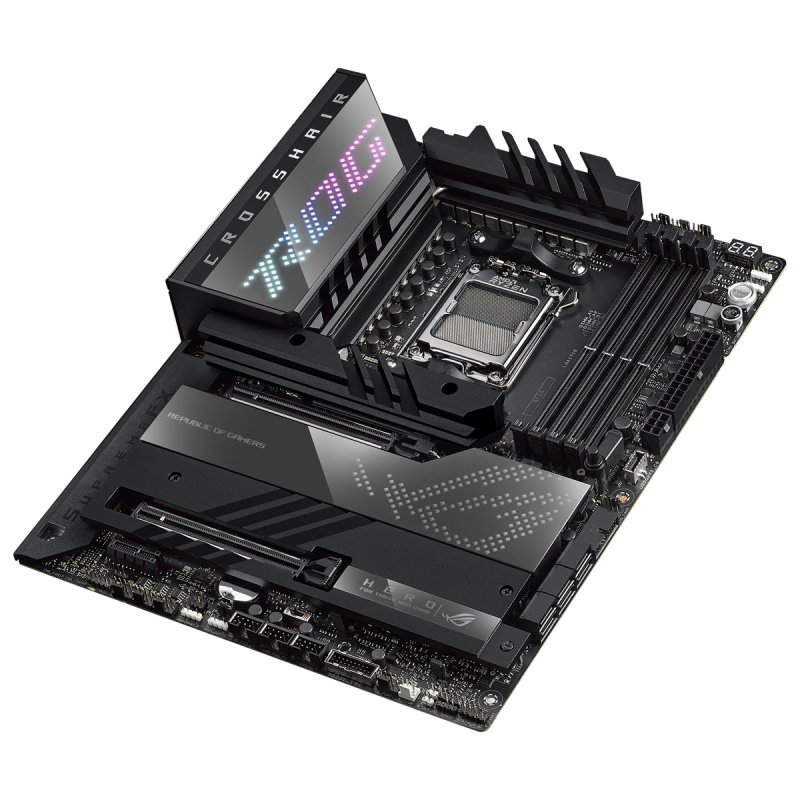

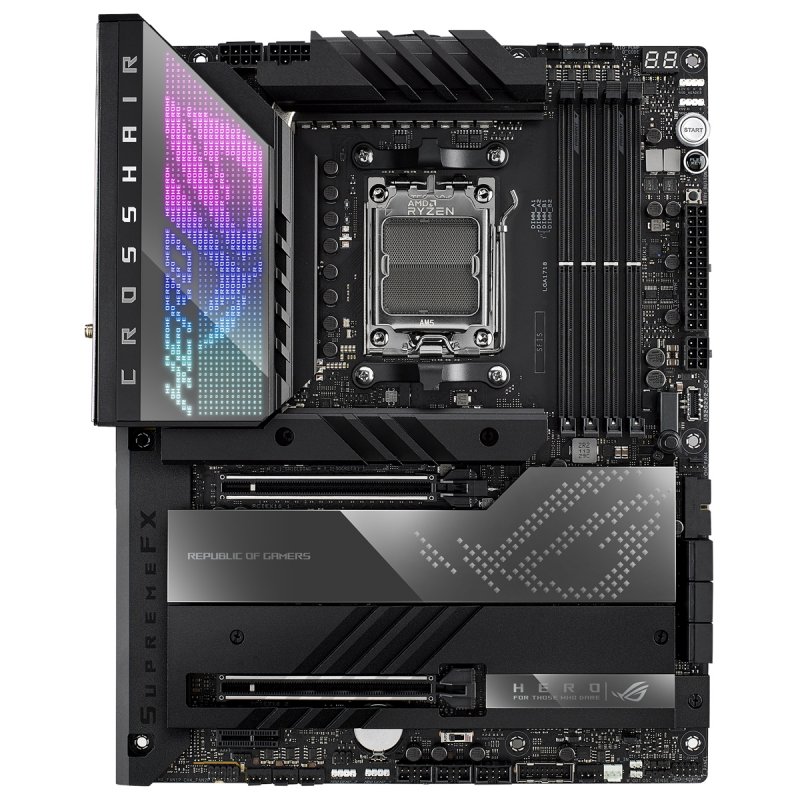

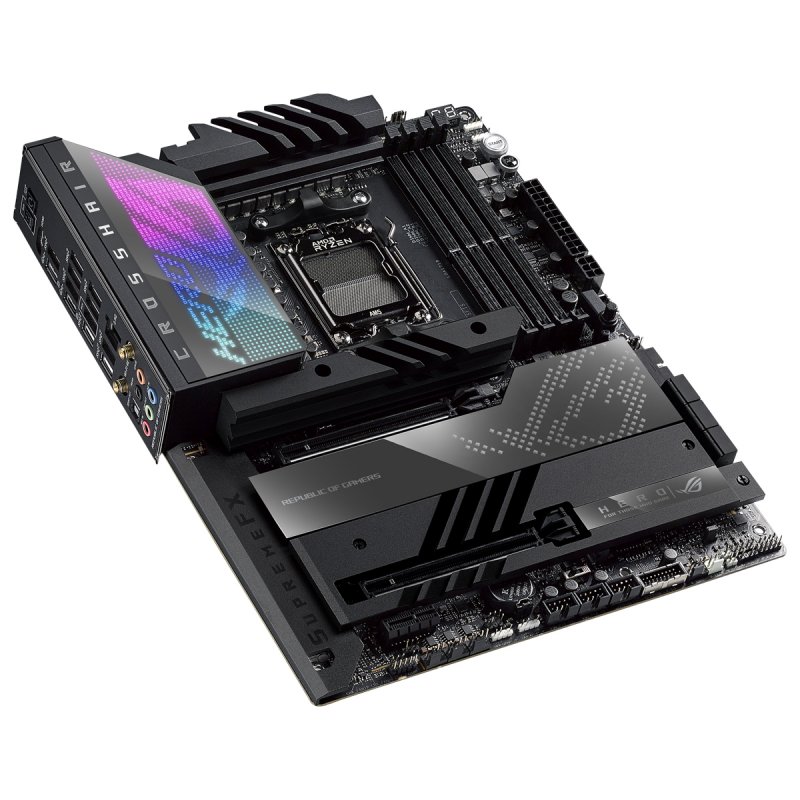

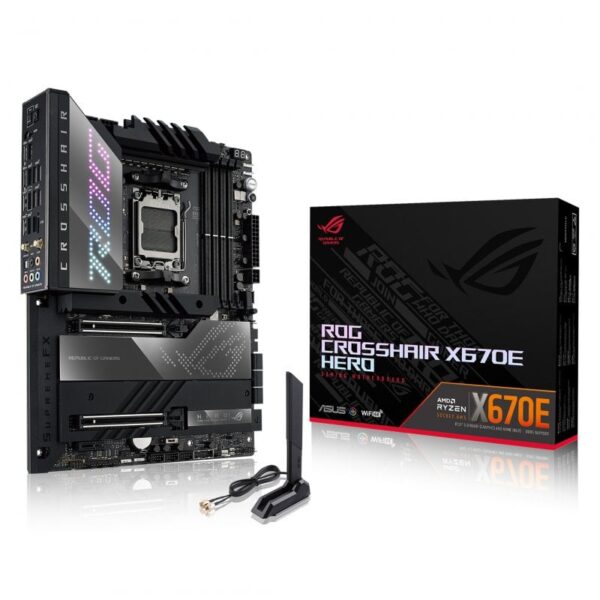

Alquiler ASUS ROG CROSSHAIR X670E HERO

La entrega de energía inquebrantable y la gestión térmica robusta forman los principios indelebles de su credo. La conectividad de hipervelocidad, la compatibilidad integral con PCIE 5.0 y DDR5 y la iluminación Polymo agregan potentes capas de personalización de construcción en la parte superior. Y los toques finales se agregan mediante utilidades exclusivas y controles de overclocking que le permiten flexionar de manera única el rendimiento de los procesadores de la serie Ryzen 7000. Define tu construcción AM5 con el ROG Crosshair X670E Hero.

Características:

• ACTUACIÓN: Las extenuantes demandas de los procesadores más potentes de la serie AMD Ryzen? 7000 no son rival para la solución de potencia de dieciocho etapas 110A del ROG Crosshair X670E Hero. Su enorme headroom abre un increíble potencial de overclocking, reforzado por un ataque combinado de tecnologías ROG únicas y velocidades DDR5 de nivel campeón.
• ENFRIAMIENTO: Cada capa de la armadura del Héroe se ha forjado minuciosamente para mantenerla fresca bajo estrés. Se han tallado estratégicamente enormes disipadores térmicos para ofrecer un enorme margen térmico al VRM, mientras que ambos conjuntos de chips comparten una gran placa central para una disipación generalizada. Para llenar los vacíos, las ranuras M.2 tienen extensos difusores de calor para permitir que las unidades instaladas realicen intensas transferencias PCIe 5.0 sin sudar.
• CONECTIVIDAD: El diseño de chipset dual del ROG Crosshair X670E Hero brinda una gran cantidad de ancho de banda para dispositivos conectados para que pueda tenerlo todo. WiFi 6E, 2.5G LAN y dos puertos USB4 adornan la E/S trasera, flanqueada por una gran cantidad de puertos adicionales para todos sus dispositivos. El audio SupremeFX incorporado ofrece un sonido inmersivo de primera calidad, ahora con un amplificador ESS quad-DAC mejorado. Y debajo del capó, se pueden cargar hasta cinco unidades PCIe 5.0 M.2 para tiempos de carga y velocidades de transferencia increíblemente rápidos.
• MEJORAMIENTO: El ROG Crosshair X670E Hero proporciona una gran variedad de herramientas intuitivas y flexibles para optimizar todos los aspectos de su sistema.
• PERSONALIZACIÓN: La iluminación de la cubierta de E/S del ROG Crosshair X670E Hero es una colorida matriz microestructural llamada Polymo Lighting. Dos patrones elegantes están disponibles para que los constructores jueguen en Armory Crate y se sincronicen con el resto de su sistema para una brillante exhibición de individualidad.

Especificaciones:

• CPU
  • AMD Socket AM5 for AMD Ryzen? 7000 Series Desktop Processors*
  • * Refer to www.asus.com for CPU support list.
  • Chipset
  • AMD X670
• Memory
  • 4 x DIMM, Max. 128GB, DDR5
  • 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD® Extended Profiles for Overclocking (EXPO?)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
• Graphics
  • 1 x HDMI® port*
  • 2 xUSB4® ports support USB Type-C® display outputs**
  • *Supports 4K@60Hz as specified in HDMI 2.1.
  • **VGA resolution support depends on processors’ or graphic cards’ resolution.
• Expansion Slots
  • AMD Ryzen? 7000 Series Desktop Processors
  • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*
  • AMD X670 Chipset
  • 1 x PCIe 4.0 x1 slots
  • * When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.
• Storage
  • Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
  • AMD Ryzen? 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
  • AMD X670 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
  • 6 x SATA 6Gb/s ports
  • *AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
  • **Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.
• Ethernet
  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 6E
  • 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth v5.3**
  • * WiFi 6E 6GHz regulatory may vary between countries, and function will be
  • ready in Windows 11 or later.
  • ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
• USB
  • Rear USB (Total 12 ports)
  • 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
  • 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
  • 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
  • Front USB (Total 11 ports)
  • 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)*
  • 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
  • 3 x USB 2.0 headers support additional 6 USB 2.0 ports
  • *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
• Audio
  • ROG SupremeFX 7.1 Surround Sound High
  • Definition Audio CODEC ALC4082
  • – Impedance sense for front and rear
  • headphone outputs
  • – Supports: Jack-detection,
  • Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback
  • output and 113 dB SNR recording input
  • – Supports up to 32-Bit/384 kHz playback»
  • Audio Features
  • – SupremeFX Shielding Technology
  • – ESS® ES9218 QUAD DAC
  • – Gold-plated audio jacks
  • – Rear optical S/PDIF out port
  • – Premium audio capacitors
  • – Audio cover
• Back Panel I/O Ports
  • 2 x USB4® ports with Intel® JHL8540 USB4®
  • controller (2 x USB Type-C®)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 9 x USB 3.2 Gen 2 ports(8 x Type-A + 1 x Type-C®)
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet
  • 5 x Gold-plated audio jacks*
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack?  button
  • 1 x Clear CMOS button
  • *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • 1 x W_PUMP+ header
  • 1 x 2-pin Water In header
  • 1 x 2-pin Water Out header
  • 1 x 3-pin Water Flow header
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V Power connector
  • 1 x 6-pinPCIe Power connector
  • Storage related
  • 4 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 3 x USB 2.0 headers support additional 6USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x Alteration Mode Switch
  • 1 x Aura RGB header
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (AAFP)
  • 1 x ReTry button
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal Sensor header
• Special Features
  • Extreme OC Kit
  • – FlexKey button
  • – ReTry button
  • – Start button
  • Extreme Engine Digi+
  • – 10K Black Metallic Capacitors
  • – MicroFine Alloy Choke
  • ASUS Q-Design
  • – M.2 Q-Latch
  • – PCIe Slot Q-Release
  • – Q-Code
  • – Q-Connector
  • – Q-DIMM
  • – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – Q-Slot
  • ASUS Thermal Solution
  • – M.2 heatsink backplate
  • – M.2 heatsink
  • – VRM heatsink design
  • ASUS EZ DIY
  • – BIOS FlashBack? button
  • – Clear CMOS button
  • – ProCool II
  • – Pre-mounted I/O shield
  • – SafeSlot
  • – SafeDIMM
  • Aura Sync
  • – Aura RGB header
  • – Addressable Gen 2 headers
  • Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
  • – Support: up to 60W charging*
  • – Output: 5/9/15/20V max. 3A, PPS:3.3?21V max. 3A
  • – Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
  • * To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W
• Software Features
  • ROG Exclusive Software
  • – GameFirst VI
  • – ROG CPU-Z
  • – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
  • – Sonic Radar III
  • – DTS® Sound Unbound
  • – BullGuard Internet Security (1-year full version)
  • ASUS Exclusive Software
  • Armoury Crate
  • – AIDA64 Extreme (1 year full version)
  • – Aura Creator
  • – Aura Sync
  • – Fan Xpert 4 with AI Cooling II
  • – Power Saving
  • – Polymo Lighting
  • – Two-Way AI Noise Cancellation
  • AI Suite 3
  • TPU
  • DIGI+ Power Control
  • Turbo app
  • PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• BIOS
  • 256Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 1 x ARGB RGB extension cable
  • 1 x RGB extension cable
  • 4 x SATA 6Gb/s cables

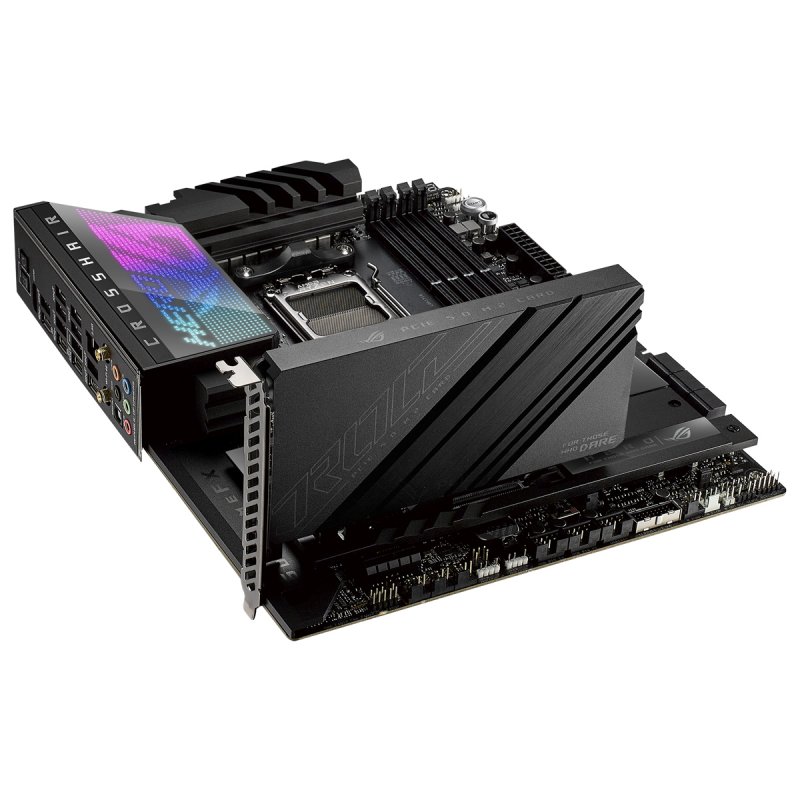

  • PCIe 5.0 M.2 Card with Heatsink
  • 1 x PCIe 5.0 M.2 Card with heatsink
  • 1 x M.2 screw package for PCIe 5.0 M.2 Card
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
• Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 3 x Rubber Packages for M.2 backplate
  • 1 x Q-connector
  • 1 x M.2 Q-Latch package
  • 3 x M.2 Q-Latch packages for M.2 backplate
  • 1 x ROG Graphics card holder
  • 1 x ROG key chain
  • 1 x ROG stickers
  • 1 x ROG thank you card
  • Installation Media
  • 1 x USB drive with utilities and drivers
• Documentation
  • 1 x User guide
• Operating System
  • Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
