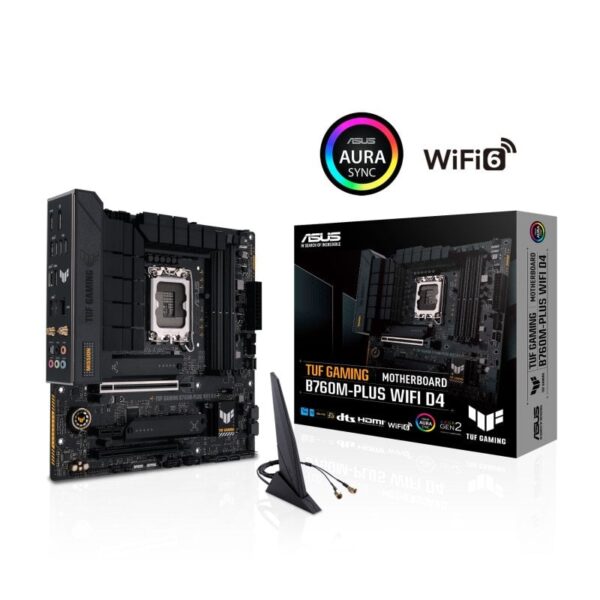

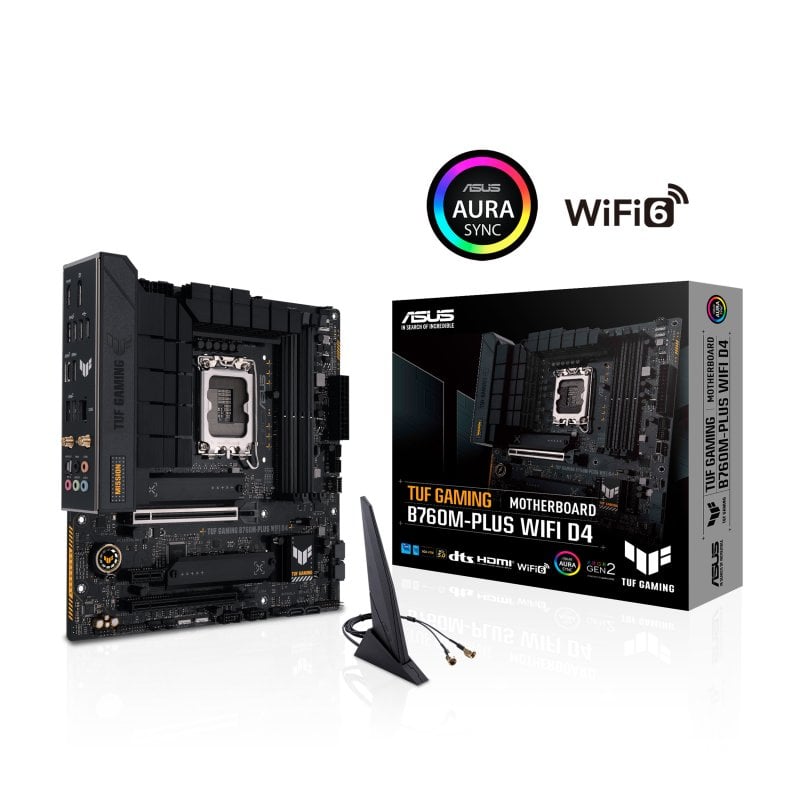

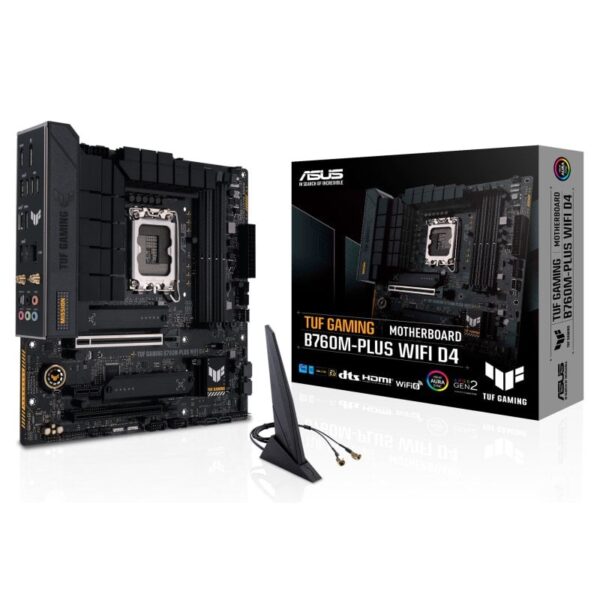

Alquiler ASUS TUF GAMING B760M PLUS WIFI D4

La placa base ASUS TUF GAMING B760M-PLUS WIFI D4 diseñada para procesadores híbridos Intel Core de 12ª y 13ª generación es ideal para montar una potente configuración de juegos. Las placas base ASUS TUF Gaming están diseñadas para jugadores exigentes que buscan rendimiento y fiabilidad a largo plazo. Te permiten sacar el máximo partido a tus componentes con un diseño único fabricado con materiales robustos y utilidades exclusivas. Incorporan funciones para juegos y combinan las ventajas de los nuevos procesadores Intel con el diseño y las características icónicas de ASUS.

Características:

• Compatibilidad con los procesadores Intel Core de 12ª y 13ª generación en el zócalo LGA 1700
• Compatible con memoria DDR4, hasta 5333 MHz (OC)
• 2 x 4 ranuras M.2 PCIe 4.0 + 4 puertos SATA 6 Gbps
• Ranura PCI-Express 5.0 16x
• ASUS TUF PROTECTION con DIGI+ VRM, ESD Guards, LANGuard, Protección contra sobretensiones
• LAN de 2,5 GbE
• Wi-Fi 6 AX/Bluetooth 5.2
• Puerto USB 3.2 Tipo C
• Compatible con ventilador Aura Sync y ARGB
• Formato Micro ATX

Especificaciones

• CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core? & 12th Gen Intel® Core?, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® B760 Chipset
• Memory
  • 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • ***Supports 4K@60Hz as specified in HDMI 2.1.
• Expansion Slots
  • Intel® 13th & 12th Gen Processors
  • 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x1 slot
  • – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® 13th & 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • Intel® B760 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
• Wireless & Bluetooth®
  • Wi-Fi 6
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth® v5.2*
  • *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
• USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 7 ports)
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
  • * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • – Audio Shielding
  • – Rear optical S/PDIF out port
  • – Premium audio capacitors
  • – Dedicated audio PCB layers
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt? (USB4®) header
• Special Features
  • ASUS TUF PROTECTION
  • – DIGI+ VRM (- Digital power design with DrMOS)
  • – ESD Guards
  • – TUF LANGuard
  • – Overvoltage Protection
  • – SafeSlot Core+
  • – Stainless-Steel Back I/O
  • ASUS Q-Design
  • – M.2 Q-Latch
  • – Q-DIMM
  • – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • – Q-Slot
  • ASUS Thermal Solution
  • – M.2 heatsink
  • – VRM heatsink design
  • ASUS EZ DIY
  • – CPU Socket lever protector
  • – ProCool
  • – Pre-mounted I/O shield
  • – SafeDIMM
  • AURA Sync
  • – AURA RGB header
  • – Addressable Gen 2 headers
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – AURA Creator
  • – AURA Sync
  • – Fan Xpert 2+
  • – Power Saving
  • – Two-Way AI Noise Cancelation
  • AI Suite 3
  • DIGI+ VRM
  • – PC Cleaner
  • TUF GAMING CPU-Z
  • DTS Audio Processing
  • MyASUS
  • Norton 360 for Gamers
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – ASUS EZ Flash 3
  • – ASUS UEFI BIOS EZ Mode
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE

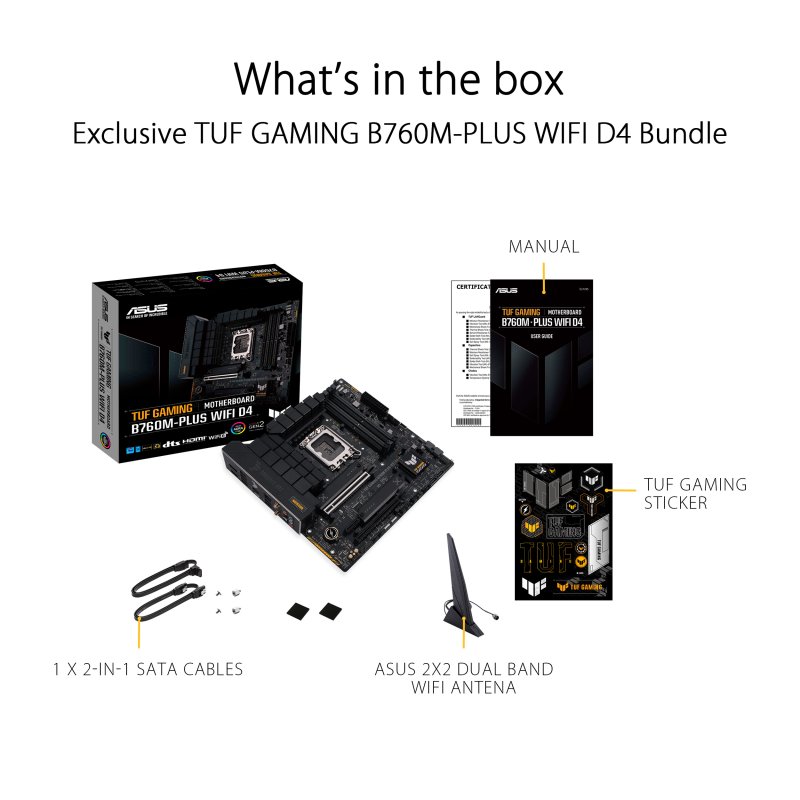

• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
  • 1 x TUF Gaming sticker
• Documentation
  • 1 x TUF Certification card
  • 1 x User guide
• Operating System
  • Windows® 11, Windows® 10 64-bit
• Form Factor
  • mATX Form Factor
  • 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
