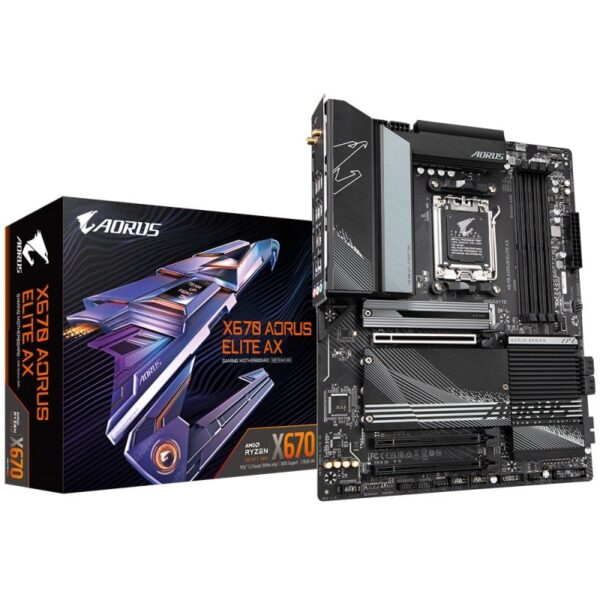

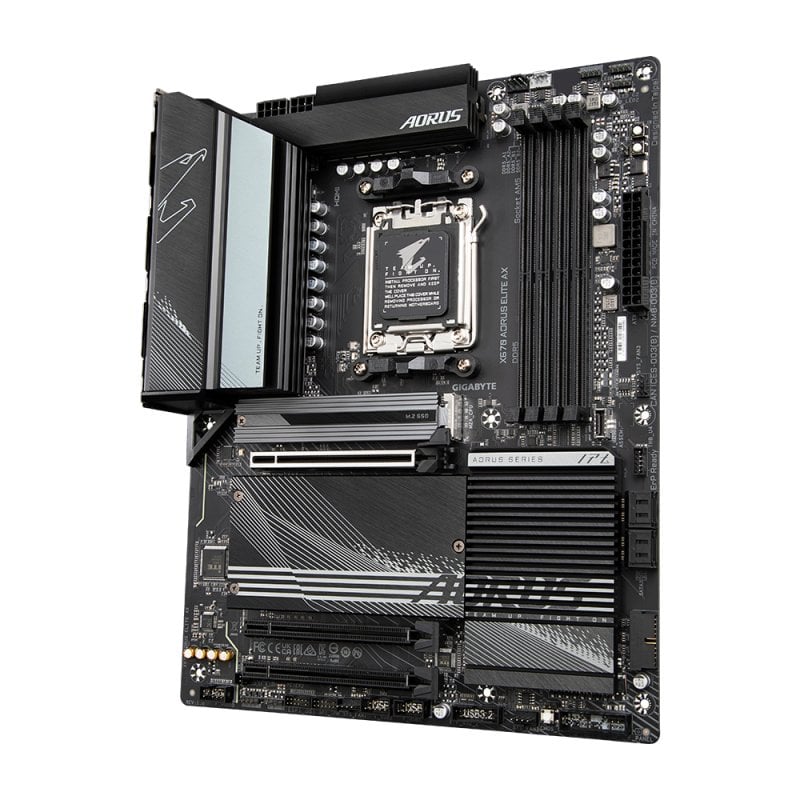

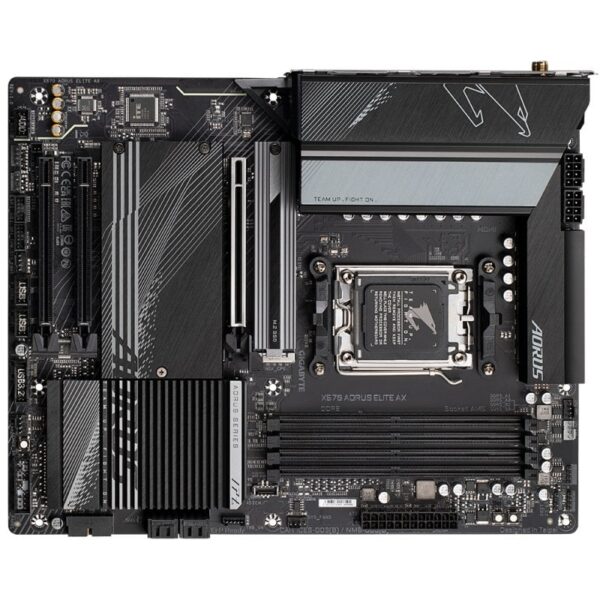

Alquiler Gigabyte X670 AORUS ELITE AX

Con el rápido movimiento de los cambios tecnológicos, GIGABYTE sigue las últimas tendencias y brinda a los clientes funciones avanzadas y las últimas tecnologías. Las placas base GIGABYTE vienen con una solución de energía mejorada, los últimos estándares de almacenamiento y una conectividad excepcional para permitir optimizar el rendimiento para las necesidades de los juegos.

Características:

• El rendimiento sin restricciones de las placas base GIGABYTE está garantizado por un diseño térmico innovador y optimizado para garantizar la mejor estabilidad de la CPU, el chipset y la SSD y las bajas temperaturas bajo aplicaciones de carga completa y rendimiento de juegos.
• Las placas base GIGABYTE permiten la mejor experiencia de conexión con velocidades de transferencia de datos increíbles a través de la red, el almacenamiento y la conectividad Wi-Fi de próxima generación.
• Las placas base GIGABYTE incluyen varios software útiles e intuitivos para ayudar a los usuarios a controlar todos los aspectos de la placa base y proporcionar un efecto de iluminación personalizable con una estética excepcional para adaptarse a su personalidad única.
• El diseño GIGABYTE Ultra Durable? brinda durabilidad al producto y un proceso de fabricación de alta calidad. Las placas base GIGABYTE utilizan los mejores componentes y refuerzan todas las ranuras para que cada una de ellas sea sólida y duradera.

Especificaciones:

• CPU
  • AMD Socket AM5, support for: AMD Ryzen? 7000 Series Processors
  • (Please refer «CPU Support List» for more information.)
• Chipset
  • AMD X670
• Memory
  • Support for DDR5 5200/4800/4400 MHz memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory modules
  • (Please refer «Memory Support List» for more information.)
• Onboard Graphics
  • Integrated Graphics Processor:
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  • * Support for HDMI 2.0 version and HDCP 2.3.
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
  • AMD Wi-Fi 6E RZ616 (MT7922A22M)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
  • Support for AMD CrossFire? technology (PCIEX16 and PCIEX4)
• Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
  • (Note) Actual support may vary by CPU.
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  • Chipset:
  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • CPU + USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 4 x SATA 6Gb/s connectors
  • 4 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x THB_U4 add-in card connector
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x Clear CMOS button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI 2.0 port
  • 6 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
  • LAN bandwidth management software
• Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
