Alquiler Gigabyte Z690 AORUS MASTER Reacondicionado

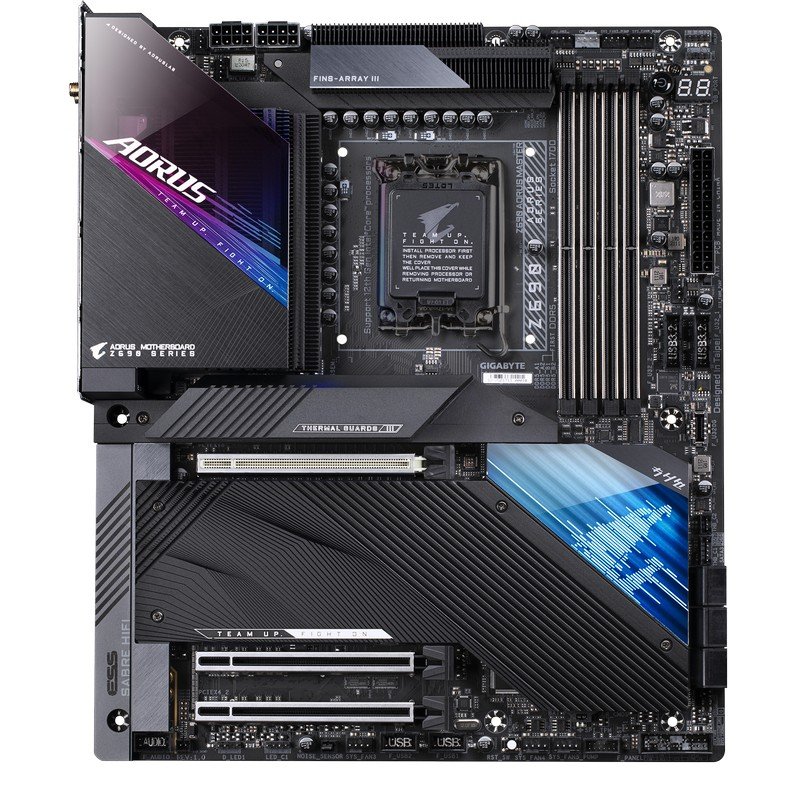

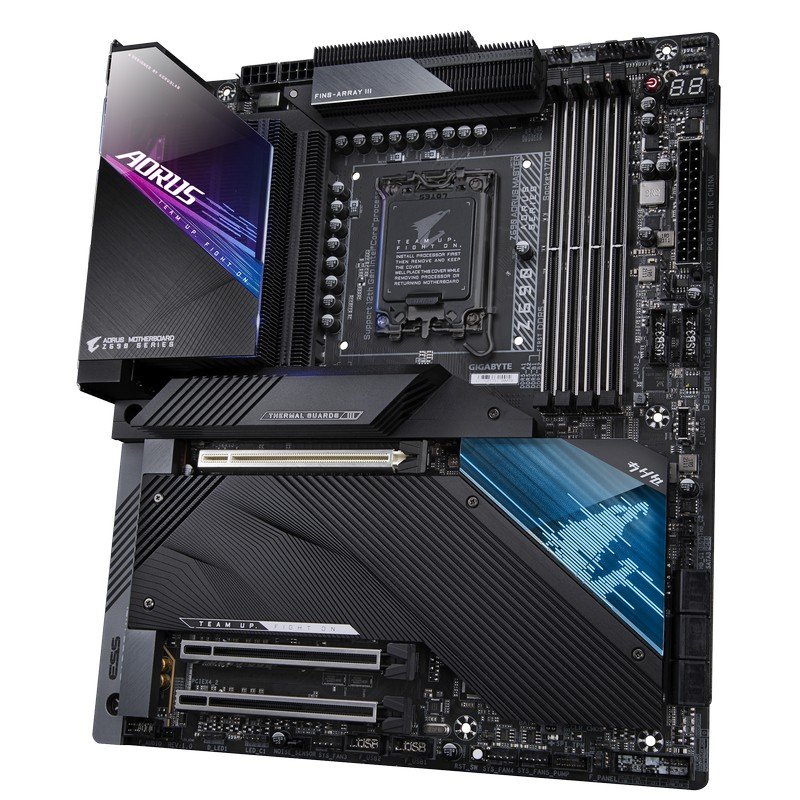

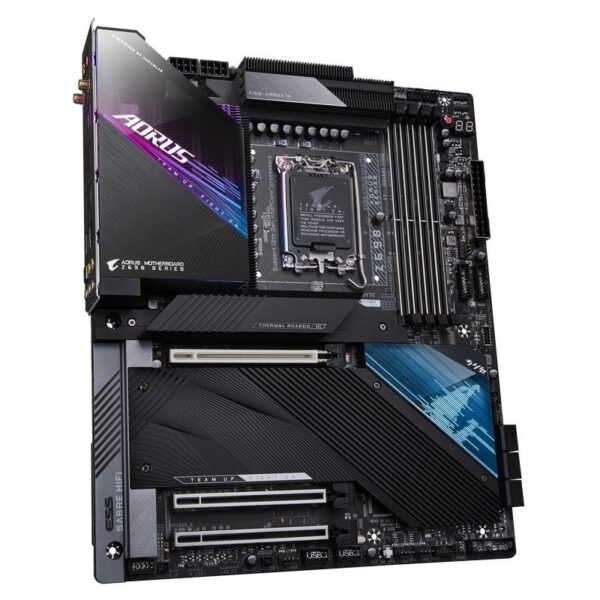

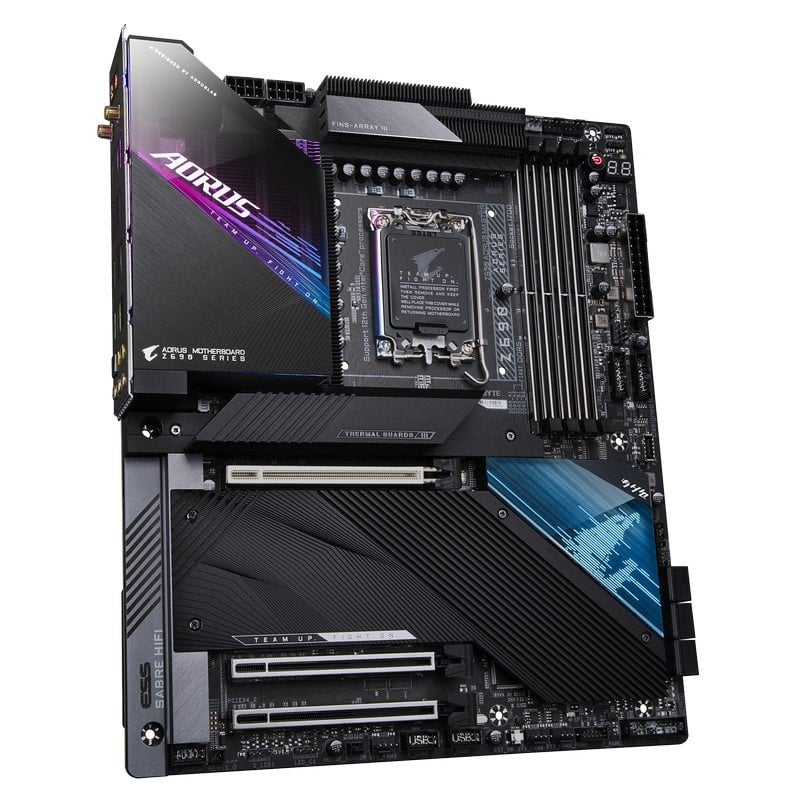

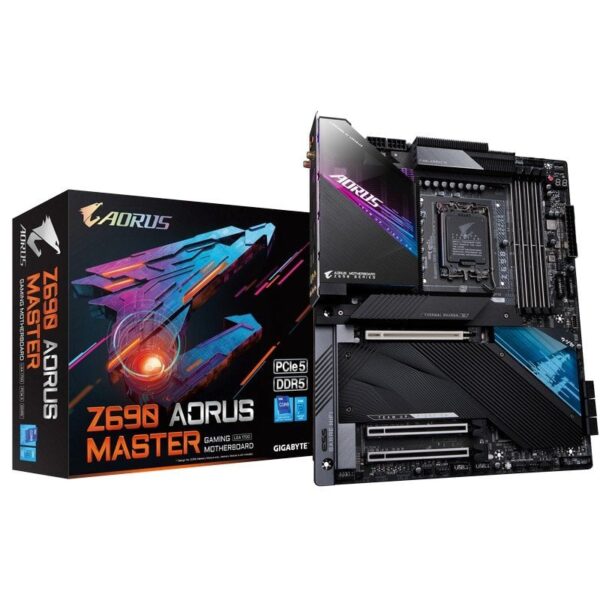

Placa madre Intel® Z690 AORUS con diseño VRM digital directo de 19 + 1 + 2 fases, diseño de MEMORIA DDR5 XTREME, disipador térmico Fins-Array III, Heatpipe II de contacto directo, placa base NanoCarbon, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel ® WIFI 6E 802.11ax, AQUANTIA® 10GbE LAN

Características

• Compatible con procesadores de la serie Intel® de 12.a generación
• DDR5 sin búfer no ECC de doble canal, 4 DIMM
• Diseño VRM directo de 19 + 1 + 2 fases con etapa de potencia de 105 A * y condensador de polímero de tantalio
• Diseño de MEMORIA DDR5 XTREME con SMD DIMM y enrutamiento de memoria blindado
• Solución térmica avanzada con disipador térmico NanoCarbon Fins-Array III, Heatpipe II de contacto directo y placa base NanoCarbon
• Intel® WIFI 6E 802.11ax 2T2R y BT5 con antena AORUS
• Slution de audio con ESS Sabre ES9118 125dB en audio trasero
• LAN AQUANTIA® 10GbE BASE-T
• 5 x NVMe PCIe 4.0 / 3.0 x4 M.2 ultrarrápidos con protectores térmicos
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras de LED direccionables y RGB
• Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP y detección de ruido
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

• CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core? i9 processors/Intel® Core? i7 processors/Intel® Core? i5 processors
  • L3 cache varies with CPU
  • (Please refer to «CPU Support List» for more information.)
• Chipset
  • Intel® Z690 Express Chipset
• Memory
  • Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer «Memory Support List» for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  • * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® ALC1220-VB CODEC
  • * The front panel line out jack supports DSD audio.
  • ESS ES9118 DAC chip
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Marvell® AQtion AQC113C 10GbE LAN chip
  • (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • Intel® Wi-Fi 6E AX210
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  • * The PCIEX4_1 slot shares bandwidth with the M2C_SB connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2C_SB connector.
  • (The PCIEX4 slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire? and 2-Way AMD CrossFire? technologies
• Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset:
  • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD support) (M2C_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • * Refer to «2-8 Internal Connectors,» for the installation notices for the PCIEX4_1, M.2, and SATA connectors.
  • Intel® Optane? Memory Ready
  • * System acceleration with Intel® Optane? Memory can only be enabled on the M.2 connectors supported by the Chipset.
• USB
  • Chipset:
  • 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support
  • (1 port on the back panel, 1 port available through the internal USB header)
  • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • Chipset+USB 3.2 Gen 2 Hub:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • Chipset+2 USB 3.2 Gen 1 Hubs:
  • 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 4 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 5 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 2 x Thunderbolt? add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • Voltage Measurement Points

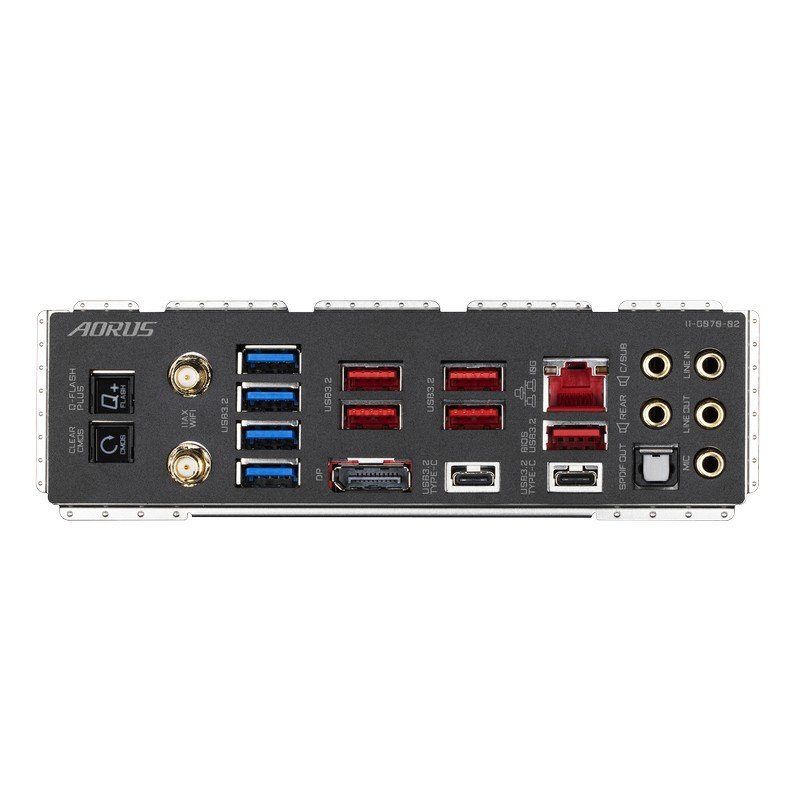

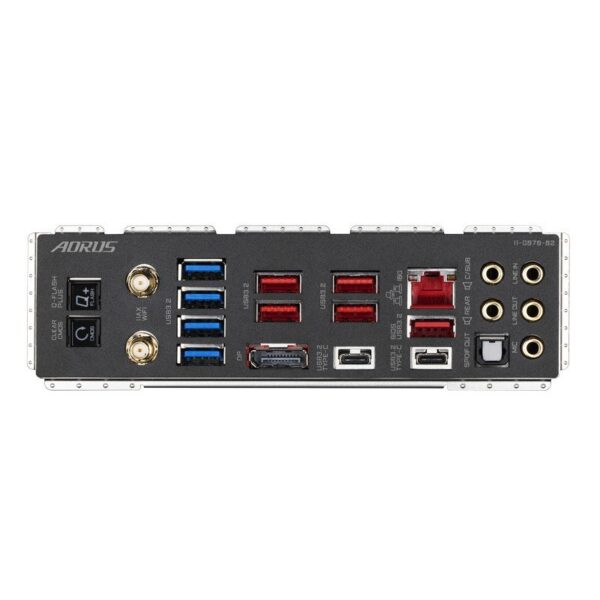

• Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 1 x Clear CMOS button
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  • 5 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • E-ATX Form Factor; 30.5cm x 25.9cm
