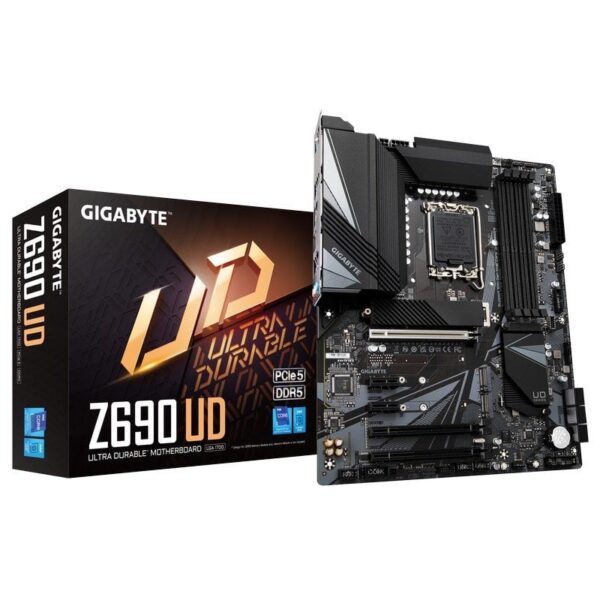

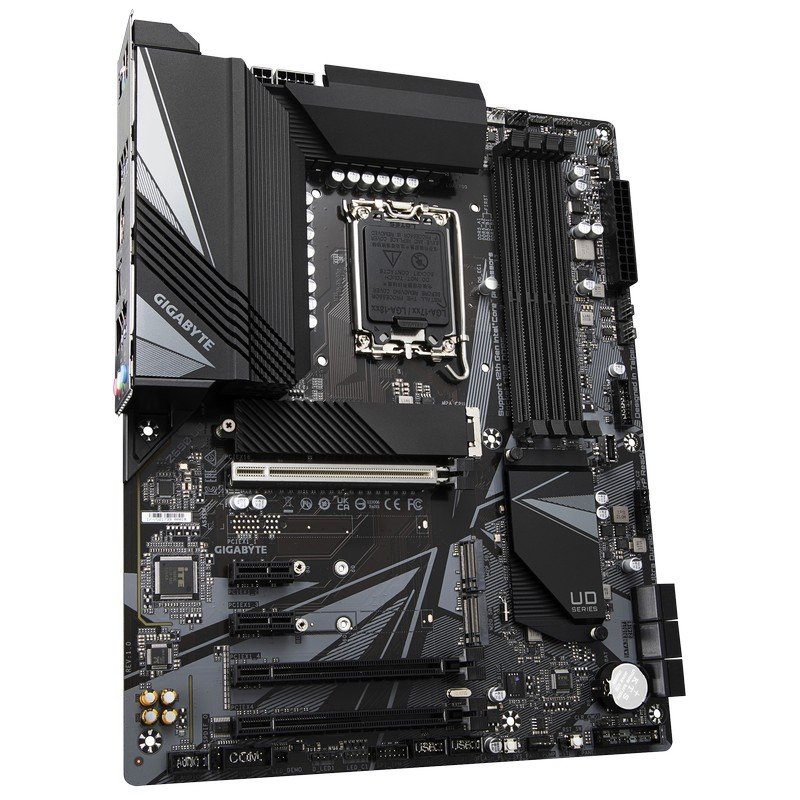

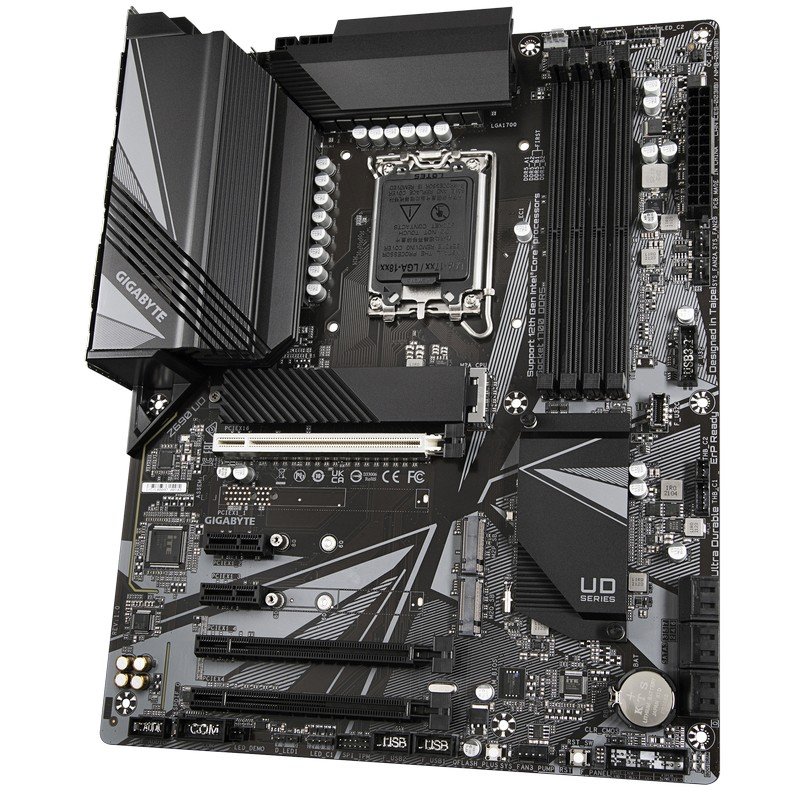

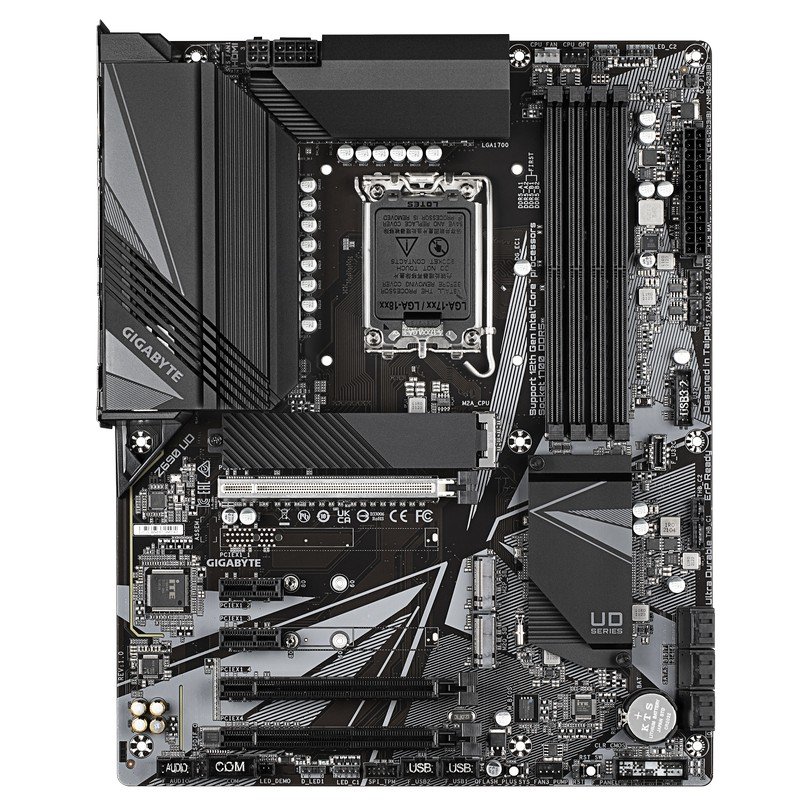

Alquiler Gigabyte Z690 UD

Placa madre Intel® Z690 con diseño VRM digital directo de 16 + 1 + 2 fases, MEMORIA DDR5 XTREME, diseño PCIe 5.0, disipadores de calor VRM de ultra rendimiento, 3 x PCIe 4.0 M.2 con protección térmica, LAN de 2,5 GbE, USB trasero 3.2 Gen 2×2 tipo -C®, Q-Flash Plus

Características

• Admite procesadores de la serie Intel® Core ? de 12.a generación
• DDR5 sin búfer no ECC de doble canal, 4 DIMM
• Diseño de MEMORIA DDR5 XTREME con SMD DIMM y enrutamiento de memoria blindado
• Diseño VRM digital directo 16 + 1 + 2 con etapa de potencia de 60 A * y condensador de polímero de tantalio
• Disipadores de calor VRM de ultra rendimiento
• LAN rápida de 2,5 GbE con gestión de ancho de banda
• 3 x NVMe PCIe 4.0 x4 M.2 ultrarrápidos con protectores térmicos ampliados
• SuperSpeed USB 3.2 Gen 2×2 TYPE-C® ofrece velocidades de transferencia de hasta 20 Gb / s
• RGB FUSION 2.0, compatible con tiras de LED direccionables y LED RGB
• Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

• CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core? i9 processors/Intel® Core? i7 processors/Intel® Core? i5 processors
  • L3 cache varies with CPU
  • (Please refer to «CPU Support List» for more information.)
• Chipset
  • Intel® Z690 Express Chipset
• Memory
  • Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  • * Support for HDMI 2.0 version and HDCP 2.3.
  • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  • * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • Support for S/PDIF Out
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
  • 2 x PCI Express x1 slots
  • (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire? and 2-Way AMD CrossFire? technologies
• Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • Intel® Optane? Memory Ready
  • * System acceleration with Intel® Optane? Memory can only be enabled on the M.2 connectors supported by the Chipset.
• USB
  • Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset+2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x serial port header
  • 2 x Thunderbolt? add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Q-Flash Plus button
  • 1 x Clear CMOS jumper
  • ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

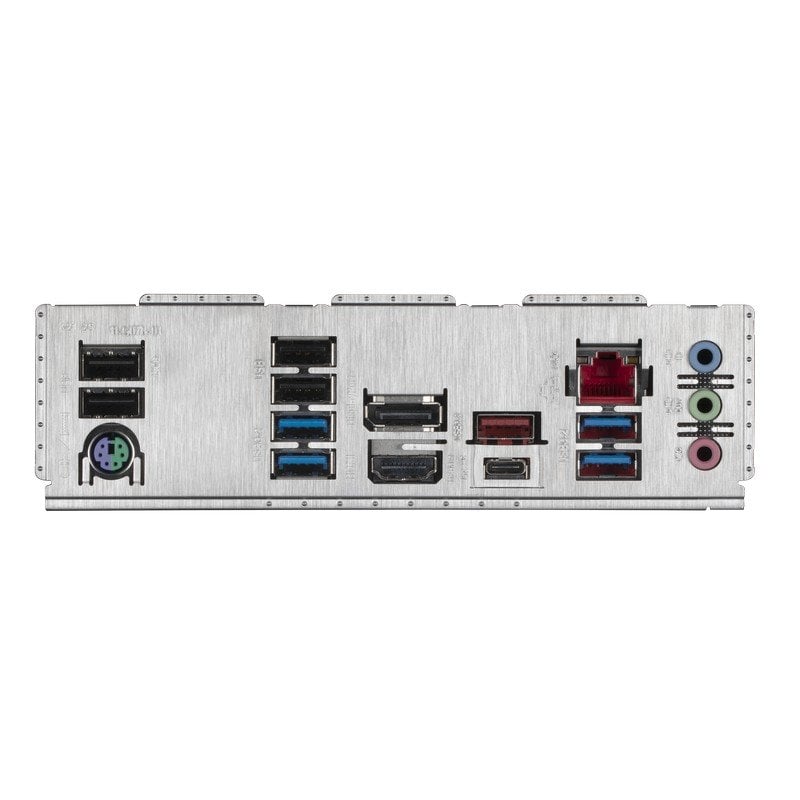

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® Gaming LAN Bandwidth Control Utility
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
