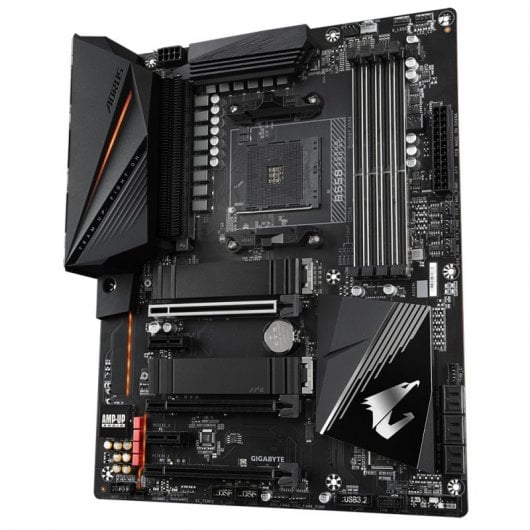

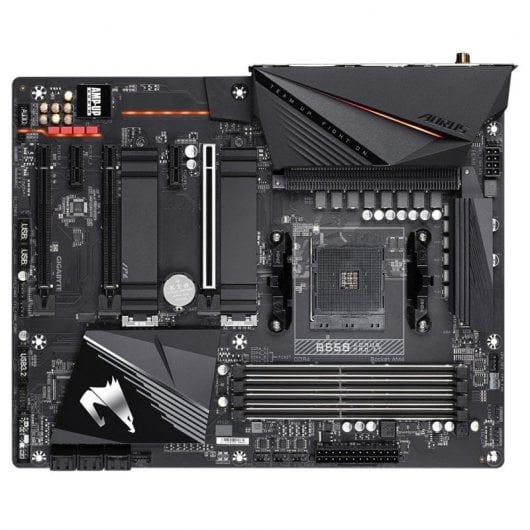

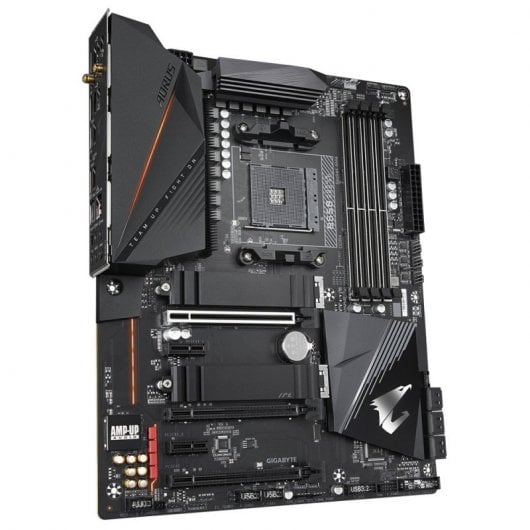

Gigabyte B550 Aorus Pro AC

La placa base Gigabyte B550 Aorus Pro AC soporta los procesadores AMD Ryzen de tercera generación.

Características:

• Admite procesadores AMD Ryzen ™ de tercera generación
• Doble canal ECC / No ECC DDR4 sin búfer, 4 DIMM
• Solución de VRM digital de 12 + 2 fases verdaderas con 50M DrMOS
• Diseño térmico avanzado con disipador térmico de matriz de aletas y tubo de calor de contacto directo
• Ranura Ultra16 Durable ™ PCIe 4.0 Ready x16
• Doble NVMe PCIe 4.0 / 3.0 x4 M.2 ultrarrápido con protecciones térmicas
• Intel® Dual Band 802.11ac y BT 4.2 inalámbricos integrados con antena AORUS
• Audio AMP-UP con condensadores ALC1220-VB y WIMA para SNR trasero de 120dB
• LAN ultrarrápida de 2.5GbE con gestión de ancho de banda
• Soporte USB 3.2 Gen2 Type-C ™ y HDMI
• RGB FUSION 2.0 admite tiras LED direccionables y LED RGB
• Smart Fan 5 presenta múltiples sensores de temperatura, encabezados de ventilador híbridos con FAN STOP
• Q-Flash Plus Update BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
• IO Shield preinstalado para una instalación fácil y rápida

Especificaciones:

• CPU

  • AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
  • (Please refer "CPU Support List" for more information.)
• Chipset

  • AMD B550
• Memory

  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
  • /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics

  • Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio

  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN

  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
  • Intel® Wi-Fi 3168WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 4.2
  • Support for 11ac wireless standard and up to 433 Mbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode
  • * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.
  • 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:Supporting PCIe 3.0 x2 mode
  • * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.
  • 2 x PCI Express x1 slots
• Storage Interface

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:Support PCIe 3.0 x4/x2 SSDs
  • 6 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10
• USB

  • CPU:3 x USB 3.2 Gen 1 ports on the back panel
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • Chipset:1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 2 x USB 2.0/1.1 ports on the back panel
  • Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 2 x temperature sensor headers
  • 1 x Clear CMOS jumper

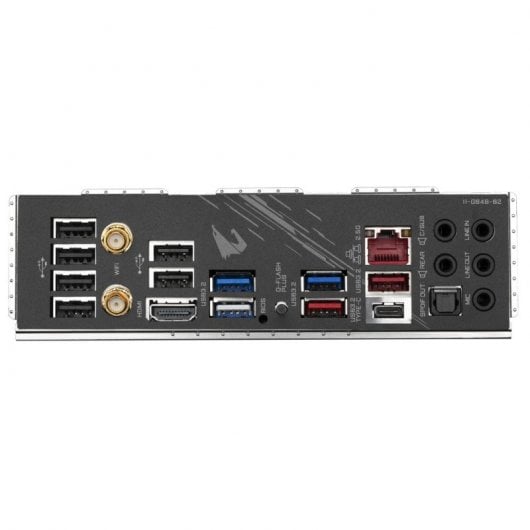

• Back Panel Connectors

  • 1 x HDMI port
  • 2 x SMA antenna connectors (1T1R)
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 6 x USB 2.0/1.1 ports
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller

  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software

  • Norton® Internet Security (OEM version)
  • XSplit Gamecaster + Broadcaster (12 months license)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility
• Operating System

  • Support for Windows 10 64-bit
• Form Factor

  • ATX Form Factor; 30.5cm x 24.4cm
