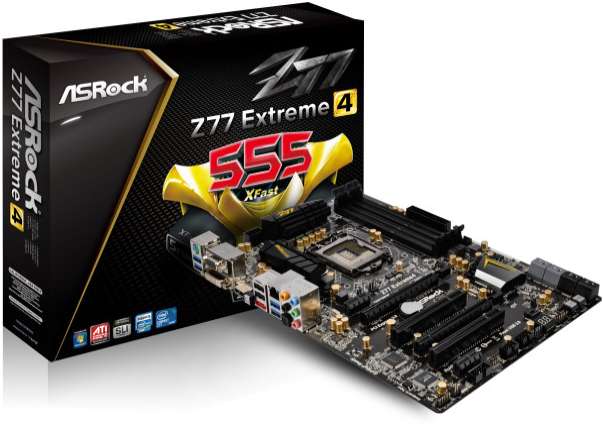

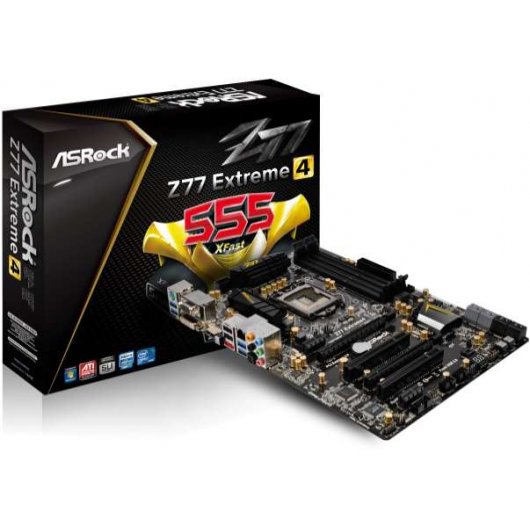

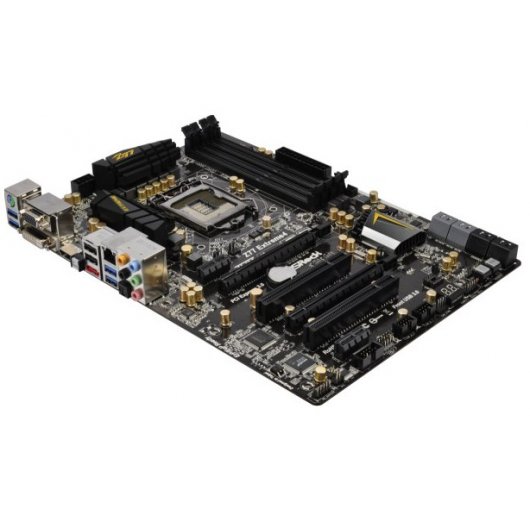

ASRock Z77 Extreme4
ASRock Z77 Extreme4
ASRock Z77 Extreme4

ASRock Z77 Extreme4

117
Sin iva96,69
¾
4.705 Stars
135 Opiniones Review
Vendido y enviado por PcComponentes ¿Qué es esto?
Estado:
Producto agotado temporal o indefinidamente.
Marca:
Asrock - P/N: 90-MXGKX0-A0UAYZ | Cod. Artículo: 49142
Envío:
Desde 5,25€
GRATIS con PcComponentes Premium
Cantidad:


ASRock Z77 Extreme4 opiniones

Ver más opiniones 15

P

profetaagape
23/05/2012

4.705 Stars

sin duda la placa tiene una pinta tremenda, bonito diseño, y buenos componentes según los análisis que he leído. trae usb3 (aunque no sé si funciona ya que me da fallos con un pendrive y no sé si el que falla es el pen o la placa). es muy rápida. ojo que no tiene para ide, solo sata2 y 3. tiene un chip de sonido integrado de los mejores, con unas características muy buenas de 192 khz 24 bits de grabación y 110db de señal ruido, además de ser 7.1, un auténtico lujo. acelera los usb, y puedes crear una ramdirve para acelerar photoshop, y para cargar el pagefile de windows, temporarles etc, de esta manera puedes acelerar el sistema y hacer que se use menos el disco duro, ahorrando tiempo y desgaste.

Ventajas: muy potente, rápida.

Desventajas : no tiene ide. me falla la velocidad ubs3 con mi pendrive adata (que ha dado problemas en otros ordenadores). como no sé aún si falla el pincho o la placa no puedo darle una nota negativa definitiva.

¿Recomendaría su compra?  Sí

Ventajas:

Desventajas :

¿Recomendaría su compra?  Sí

<2 años
de garantía
?30 días
de devolución
=100%
pago seguro
comprados juntos habitualmente
#
UNIDADES
TOTAL
  • Características
  • Opiniones 135
  • Videos / Reviews 2
  • Preguntas 1
  • Premium Gold Caps
  • Digi Power Design, 8 + 4 Power Phase Design
  • Supports Dual Channel DDR3 2800+(OC)
  • 2 x PCIe 3.0 x16 Slots, Supports AMD Quad CrossFireX™, CrossFireX™ and NVIDIA® Quad SLI™, SLI™
  • PCIE Gigabit LAN
  • Supports Intel® HD Graphics with Built-in Visuals
  • Multi VGA Output options : DVI-D, D-Sub, HDMI
  • Combo Cooler Option (C.C.O.)
  • 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), Supports THX TruStudio™
  • Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, UEFI System Browser
  • Supports Intel® Smart Connect, Intel® Rapid Start, Lucid Virtu Universal MVP
  • Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
CPU- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package
- Digi Power Design
- 8 + 4 Power Phase Design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPU
- Supports Hyper-Threading Technology
- Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® 22nm CPU
Chipset- Intel® Z77
Memory- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Audio, Video and Networking
Graphics- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 with Intel® 22nm CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU.
- Max. shared memory 1760MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio™
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Expansion / Connectivity
Slots- 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE3: single at x16 (PCIE2) / x8 (PCIE3) or dual at x8/x8 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- Supports NVIDIA® Quad SLI™ and SLI™

*PCIE 3.0 is only supported with Intel® 22nm CPU. With Intel® Sandy Bridge CPU, it only supports PCIE 2.0.
SATA3- 2 x SATA3 6.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and "Hot Plug" functions
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and "Hot Plug" functions (SATA3_A1 connector is shared with eSATA3 port)
USB 3.0- 2 x Rear USB 3.0 ports by Intel® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
- 2 x Rear USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header by Intel® Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
Connector- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions
- 4 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug with LED

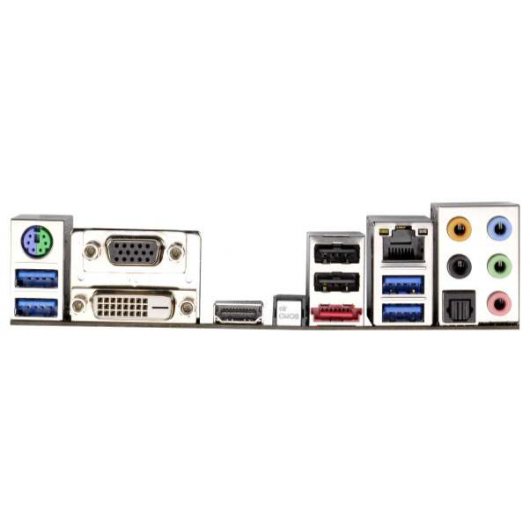

Rear Panel I/OI/O Panel
- 1 x PS/2 Keyboard/Mouse Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- Lucid Virtu Universal MVP
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED

*Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated.
Smart Switch- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED
Support CD- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
Accessories- 1 x ASRock SLI_Bridge_2S Card
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional)
Hardware Monitor- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor- ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
- Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
OS- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)

Comprar ASRock Z77 Extreme4
