E

Asus H110M-A/M.2

66 ,95
Sin iva 55,33€
¾
20 Opiniones Review
Estado
Producto en almacén, salida inmediata.
Marca
Asus - P/N: 90MB0R60-M0EAY0 | Cod. Artículo: 100829
Envío
Desde 3.95 €.
Puntos
Con esta compra acumulas 75 Puntos .
Cantidad:

Disp:Disponibilidad:Disponibilidad:
Plazo de entrega estimado para envíos a península
Stocks: Tienda Murcia / Tienda Madrid /
Ocasión:
A partir de 59.2€ en nuestro rastrillo. Ahorra 7.75€.
Envío

Asus H110M-A/M.2 opiniones

Ver más opiniones 20

S

slater
23/08/2016

producto ke no me termino de convencer para el precio ke tiene para ser nuevo socket en bios pocas opciones en bios msi tiene mas opciones incluso para hacer overcloking

Ventajas: no me gusta la placa para ser actual

Desventajas: muy pocas opciones en bios

¿Recomendaría su compra?  Sí

<2 años
de garantía
?30 días
de devolución
=100%
pago seguro
  • Características
  • Opiniones 20
  • Videos / Reviews 0
  • Preguntas 4

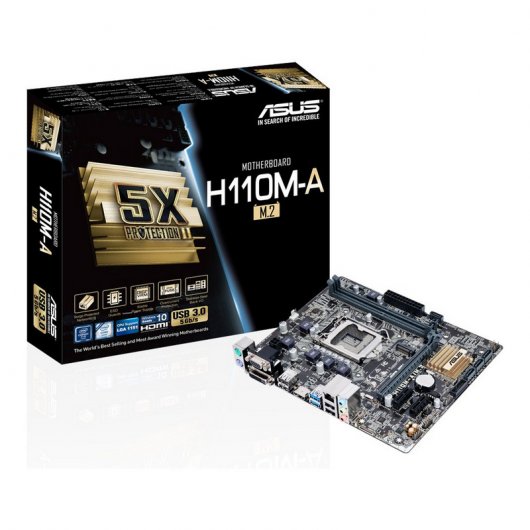

Te presentamos la Asus H110M-A/M.2 una placa base con socket Intel 1151 y chipset H110.

Caractertísticas:

  • 5X Protection II – Advanced hardware safeguards for all-around protection
  • DDR4 memory compatibility
  • Lightning-fast M.2 support
  • Epic gaming audio with LED-illuminated shielding
  • Media-acclaimed UEFI BIOS with EZ Flash 3
  • Fan Xpert: Active Quiet & Cool

Especificaciones:

CPULGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® ProcessorsLGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® ProcessorsLGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*Supports Intel® Turbo Boost Technology 2.0*Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.** Refer to www.asus.com for Intel® CPU support list.** Refer to www.asus.com for Intel® CPU support list.
ChipsetIntel® H110 ChipsetIntel® H110 ChipsetIntel® H110 Chipset
Memory2 x DIMM, max. 32GB, DDR4 2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)Supports Intel® Extreme Memory Profile (XMP)Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).* Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
Expansion Slots1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)
2 x PCI Express 2.0 x1 slots
VGAIntegrated Graphics Processor - Intel® HD Graphics supportIntegrated Graphics Processor - Intel® HD Graphics supportIntegrated Graphics Processor - Intel® HD Graphics support
Multi-VGA output support: HDMI / DVI-D / D-Sub port
- Supports HDMI with max. resolution up to 4096 x 2160 @24Hz / 2560 x 1600 @60Hz
- Supports DVI-D with max. resolution up to 1920 x 1200 @60Hz
- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Maximum shared memory of 1024MB
StorageIntel® H110 Chipset Intel® H110 Chipset
- 1 x 20Gb/s M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support(both PCIE & SATA mode)*
- 4 x Serial ATA 6.0 Gb/s connectors (gray)
*When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_1 port.
LANIntel® I219V Gigabit LAN support LANGuardIntel® I219V Gigabit LAN support LANGuard
AudioRealtek® ALC887 8-channel High Definition Audio CODECRealtek® ALC887 8-channel High Definition Audio CODEC
Gaming Audio:
- LED-illuminated design: Brighten up your build with the gorgeous illuminated audio trace path
- Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right tracks ensure both channels deliver consistent, equal quality
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USBIntel® H110 Chipset - supports ASUS USB 3.0 Boost
- 4 x USB 3.0/2.0 ports (2 ports @ mid-board, 2 ports @ back panel)
- 6 x USB 2.0/1.1 ports (2 ports @ mid-board, 4 ports @ back panel)
ASUS Special FeaturesASUS 5X PROTECTION II
- ASUS LANGuard - Protects against LAN surges, lightning strikes discharges!
- ASUS ESD Guards - Enhanced ESD protection
- ASUS DIGI+ VRM - 5 Phase digital power design
- ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
Superb Performance
- ASUS EPU
- ASUS USB 3.0 Boost
- PC Cleaner: Fast and easy way to get rid of unnecessary junk files
Gaming Scenario
Audio Features
- Audio that roars on the battlefield
ASUS Exclusive Features
- ASUS Ai Charger
- ASUS AI Suite 3
EZ DIY
Push Notice
- Monitor your PC status with smart devices in real time
UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Quiet Thermal SolutionQuiet Thermal Design:
- ASUS Fanless Design: Stylish Heatsink solution
- ASUS Fan Xpert
Back Panel I/O Ports1 x PS/2 keyboard (purple)
1 x PS/2 mouse port (green)
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DVI port
1 x D-Sub port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output*
* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.
Internal I/O Connectors1 x USB 3.0/2.0 connectors support additional 2 USB 3.0/2.0 ports
1 x USB 2.0/1.1 connectors support additional 2 USB 2.0/1.1 ports
4 x SATA 6.0Gb/s connectors
1 x 4-pin CPU Fan connector
1 x 4-pin Chassis Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x COM header
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x System Panel connector
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 2.0, WOL by PME, PXE
Accessories2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x M.2 screw package
1 x Support DVD
1 x User´s manual
Support DVDDrivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System SupportWindows® 10 (64-bit)
Windows® 8.1 (64-bit)
Windows® 7 (64-bit/32-bit)*
* Please refer to ASUS official website and download "Windows® 7 installation guide" and "ASUS EZ installer" to install Windows® 7.
Form FactoruATX Form Factor, 8.9”x 7.3” (22.6cm x 18.5cm)
