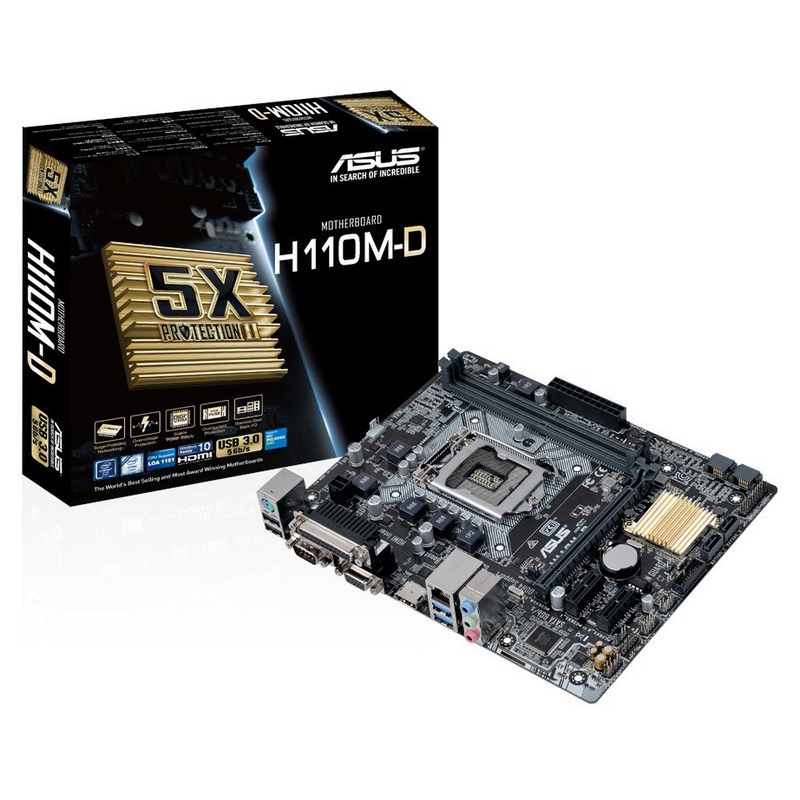

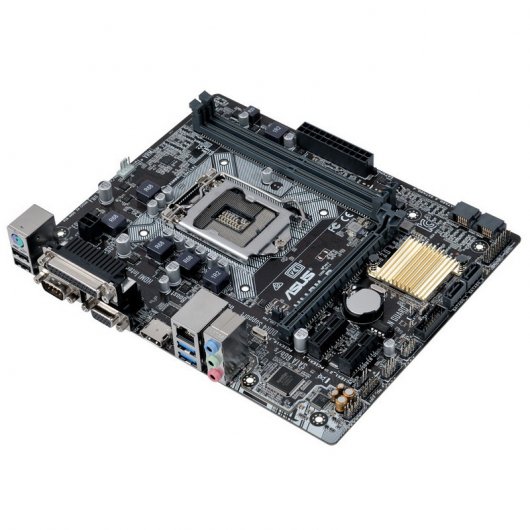

Asus H110M-D MP

CPU

 LGA1151 socket for Intel®6th Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors

 Supports 14nm CPU

 Supports Intel® Turbo Boost Technology 2.0*

 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

 ** Refer to www.asus.com for Intel® CPU support list.

 Chipset

 Intel® H110 Express Chipset

 Memory

 2 x DIMM, max. 32GB, DDR4 2133 MHz non-ECC un-buffered memory

 Dual channel memory architecture

 Supports Intel® Extreme Memory Profile (XMP)

 * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).

 ** Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.

 *** The maximum memory frequency supported varies by processor.

 Expansion Slots

1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)

2 x PCI Express 2.0 x1 slots

VGA

Integrated Graphics Processor - Intel®HD Graphics support

Multi-VGA output support: HDMI, D-Sub ports

- Supports HDMI with max.resolution up to 4096 x 2160 @24Hz / 2560 x 1600@60Hz

- Supports D-Sub with max. resolution up to 1920 x 1200 @60Hz

Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™

- Maximum shared memory of 1024MB

Storage

Intel® H110 Express Chipset and Intel Rapid Storage Technology 14 support*:

- 4 x Serial ATA 6.0 Gb/s connectors (gray)

* These functions will work depending on the CPU installed.

LAN

Realtek®8111H Gigabit LAN support LANGuard

Audio

Realtek® ALC887 8-channel* High Definition Audio CODEC

- Supports jack-detection and front panel jack-retasking

Gaming Audio:

- LED-illuminated design: Brighten up your build with the gorgeous illuminated audio trace path

- Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right tracks ensure both channels deliver consistent, equal quality

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Use a chassis with HD audio module in the front panel to support a 8-channel audio output.

 USB

Intel® H110 Express Chipset - supports ASUS USB 3.0 Boost

 - 4 x USB 3.0/2.0 ports (2 ports @ mid-board, 2 ports @ back panel)

 - 6 x USB 2.0/1.1 ports (4 ports @ mid-board, 2 ports @ back panel)

ASUS Special Features

 ASUS 5X PROTECTION II

      - ASUS LANGuard - Protects against LAN surges, lightning strikes

      - ASUS Overvoltage Protection - World-class circuit-protecting power design

      - ASUS DIGI+ VRM - 5 Phase digital power design

      - ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection

      - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

 Superb Performance

      - ASUS EPU

      - PC Cleaner: Fast and easy way to get rid of unnecessary junk files

 Gaming Scenario

     Audio Features

      - Audio that roars on the battlefield

     Media Streamer

      - Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!

      - Media Streamer app for portable smartphone/tablet, supporting IOS 7 & Android 4.0 systems

 ASUS Exclusive Features

      - ASUS Ai Charger

      - ASUS AI Suite 3

      - ASUS Disk Unlocker featuring 3TB+ HDD support

      - Anti Surge

 EZ DIY

     Push Notice

      - Monitor your PC status with smart devices in real time

     UEFI BIOS EZ Mode

      - featuring friendly graphics user interface

      - ASUS CrashFree BIOS 3

      - ASUS EZ Flash 3

     ASUS Q-Design

      - ASUS Q-DIMM

      - ASUS Q-Slot

 ASUS Quiet Thermal Solution

Quiet Thermal Design:

- ASUS Fanless Design: Stylish Heatsink solution

 - ASUS Fan Xpert

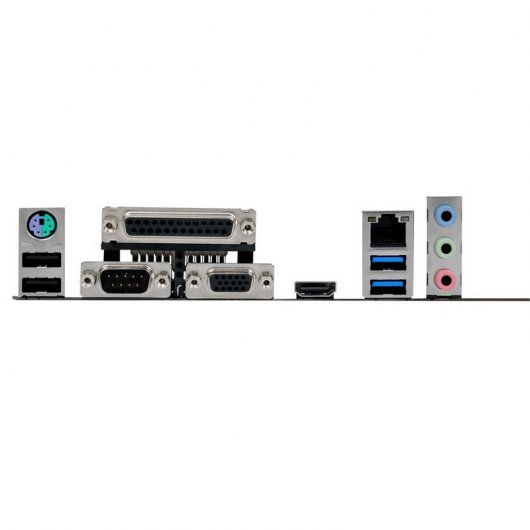

Back Panel I/O Ports

1 x PS/2 Keyboard/Mouse combo port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x HDMI port

1 x D-Sub port

1 x LAN (RJ-45) port

1 x LPT port

1 x COM port

3 x Audio jacks support 8-channel audio output

 Internal I/O Connectors

1 x USB 3.0/2.0 connectors support additional 2 USB 3.0/2.0 ports

2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports

4 x SATA 6.0Gb/s connectors

 1 x 4-pin CPU Fan connector for 4-pin PWM mode

 1 x 4-pin Chassis Fan connector for 4-pin PWM & DC mode

 1 x Front panel audio connector

 1 x S/PDIF Out connector

 1 x 24-pin EATX Power connector

 1 x 4-pin ATX 12V Power connector

 1 x TPM connector

 1 x System Panel connector

 BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

 Manageability

 WfM 2.0, DMI 3.0, WOL by PME, PXE

 Accessories

 2 x Serial ATA 6.0Gb/s cables

 1 x I/O shield

 1 x Support DVD

 1 x User´s manual

 Support DVD

 Drivers

 ASUS Utilities

 EZ Update

 Anti-virus software (OEM version)

 Operating System Support

 Windows® 10 (64-bit)

 Windows® 8.1 (64-bit)

 Windows® 7 (64-bit/32-bit)

 Form Factor

 uATX Form Factor, 8.9”x 7.3” (22.6cm x 18.5cm)
