Asus H170-PRO

105
Sin iva 86,78€
¾
5 Opiniones Review
Estado
Producto en almacén, salida inmediata.
Marca
Asus - P/N: 90MB0NC0-M0EAY0 | Cod. Artículo: 87503
Envío
Desde 3.95 €.
Puntos
Con esta compra acumulas 117 Puntos .
Cantidad:

Disp:Disponibilidad:Disponibilidad:
Plazo de entrega estimado para envíos a península
Stocks: Tienda Murcia / Tienda Madrid 1
Ocasión:
A partir de 99€ reacondicionado. Ahorra 6.00€.
Envío

Asus H170-PRO opiniones

Ver más opiniones 5

A

anonimo
29/11/2016

Una placa rapida y muy buena. El unico defecto para mi es que no se puede instalar Windows XP, el cual estando obsoleto me gustaba mucho, pues muchos programas de los que uso no son compatibles con Windows 8 ni 10.

Ventajas: Todo

Desventajas: No se puede instalar Windows XP

¿Recomendaría su compra?  Sí

<2 años
de garantía
?30 días
de devolución
=100%
pago seguro
  • Características
  • Opiniones 5
  • Videos / Reviews 0
  • Preguntas 3

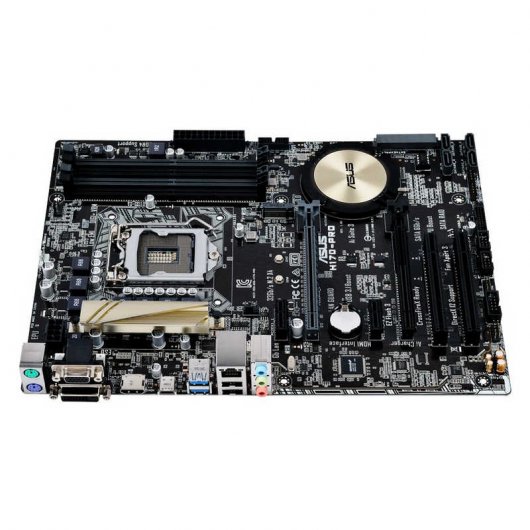

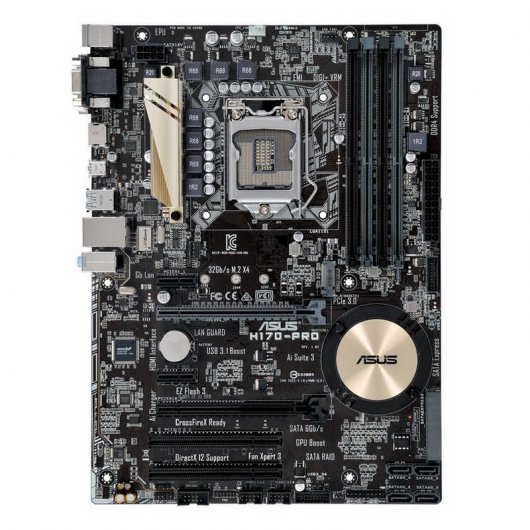

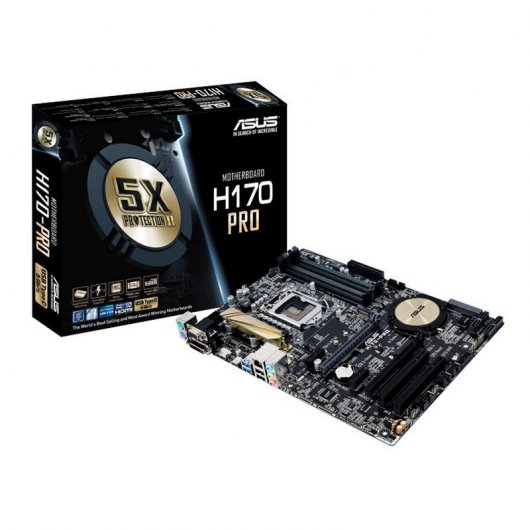

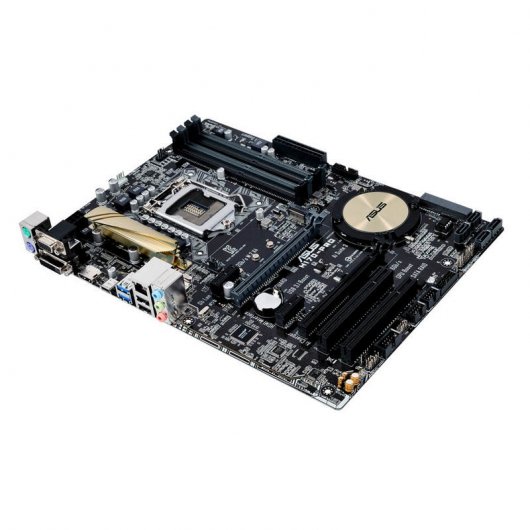

Te presentamos en PcComponentes la H170-PRO de Asus, una placa base con socket Intel 1151 y chipset H170.

Características:

  • 5X Protection II: Protección hardware avanzada
  • USB tipo C para una conectividad más conveniente
  • Épico sonido gaming con diseño de filtro de ruido
  • Reconocida UEFI BIOS con EZ Flash 3
  • Fan Xpert 3: Controles avanzados para una refrigeración eficiente y silenciosa
  • M.2 ultrarrápido con interfaz PCIe® 3.0 x4

Especificaciones:

CPULGA1151 socket for 6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors
Supports 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
ChipsetIntel® H170 Express Chipset
Memory4 x DIMM, max. 64GB, DDR4 2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Expansion Slots1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)
2 x PCI Express 3.0/2.0 x1 slots
2 x PCI slots
Multi-GPU SupportSupports AMD® CrossFireX™ Technology
VGAIntegrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D/RGB port
- Supports HDMI with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz
- Supports DVI-D with max. resolution of 1920 x 1200 @60Hz
- Supports RGB with max. resolution 1920 x 1200@60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Supports up to 3 displays simultaneously
Maximum shared memory of 512MB
StorageIntel® H170 Express Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 14 support
- 1 x SATA Express port (compatible with 2 x SATA 6.0 Gb/s ports)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- 6 x SATA 6.0 Gb/s ports (gray, 2 from SATA Express)
- Supports Intel® Smart Response Technology*
* These functions will work depending on the CPU installed.
LANRealtek® 8111H Gigabit LAN support LANGuard
AudioRealtek® ALC887 8-channel high definition audio CODEC
- Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
- Supports jack-detection and front panel jack-retasking
USBIntel® H170 Express Chipset- supports ASUS USB 3.0 Boost
- 6 x USB 3.0/2.0 ports (4 ports @mid-board; 2 ports @back panel, blue, Type A)
- 1 x 5Gb/s USB Type C port (@back panel), supports 3A power output
- 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel)
ASUS Special FeaturesASUS 5X PROTECTION II
- ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 4+2+1 Phase digital power design
- ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
Superb Performance
M.2 onboard
- The latest transfer technologies with up to 32Gb/s data transfer speeds
SATA Express onboard
- The latest transfer technologies with up to 16Gb/s datatransfer speeds
ASUS Fan Xpert 3
- Featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS EPU
- EPU
PC Cleaner
- Fast and easy way to get rid of unnecessary junk files
UEFI BIOS
- Most advanced options with fast response time
USB 3.0 Boost
- featuring speedy USB 3.0 transmission
Gaming Scenario
Audio Features
- Audio that roars on the battlefield
Media Streamer
- Pipe music or movies from your PC to a smart TV, your entertainment goes wherever you go!
- Media Streamer app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features
- ASUS Ai Charger
- ASUS AI Suite 3
- ASUS Disk Unlocker featuring 3TB + HDD support
EZ DIY
Push Notice
- Monitor your PC status with smart devices in real time
UEFI BIOS EZ Mode
- featuring friendly graphics user interface
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Quiet Thermal SolutionQuiet Thermal Design:
- ASUS Fan Xpert 3
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink solution

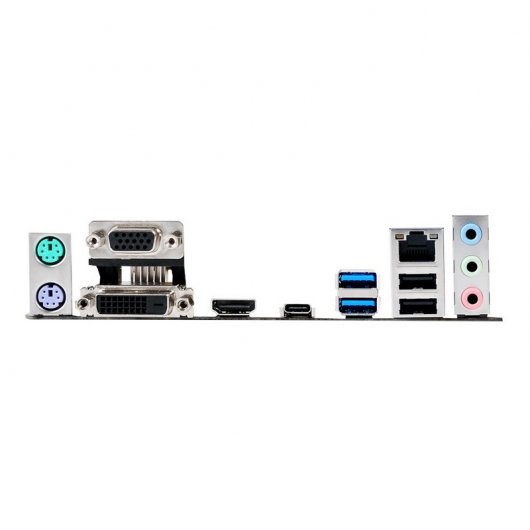

Back Panel I/O Ports1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x HDMI port
1 x DVI-D port
1 x RGB port
1 x LAN (RJ45) ports
2 x USB 3.0/2.0 ports (blue, Type A)
1 x USB 5Gb/s Type C port
2 x USB 2.0/1.1 ports
3-Jack 8-Channel Audio I/O ports
Internal I/O Connectors2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1/1 connectors support additional 4 USB ports
1 x SATA Express connector
6 x SATA 6.0Gb/s connectors (gray)
1 x M.2 Socket 3
1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*
2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front panel audio connector
1 x System panel connector (Chassis intrusion header is inbuilt)
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x COM header
1 x TPM Header
1 x Clear CMOS jumper
* The CPU Q-Fan control setting is set as default in Auto mode for detecting the type of CPU fan installed and switches to the control mode automatically.
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.1, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM 2.0, DMI 3.0, WOL by PME, PXE

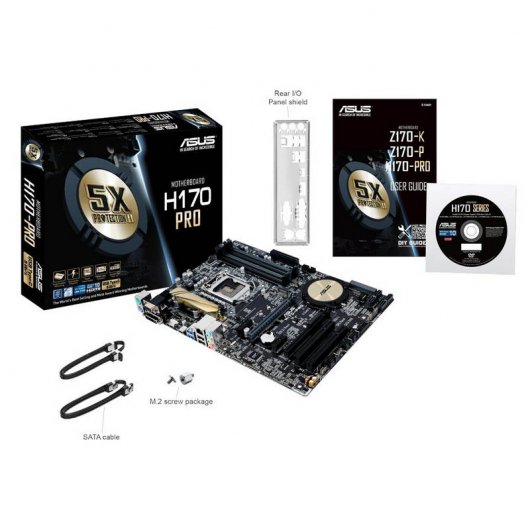

Accessories2 x Serial ATA 6.0Gb/s cables
1 x I/O Shield
1 x M.2 screw package
1 x Support DVD
1 x User´s manual
Support DVDDrivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System SupportWindows® 10 (64-bit)
Windows® 8.1 (64-bit)
Windows® 7 (64-bit/32-bit)
Form FactorATX form factor: 12.0 in. x 8.8 in. (30.5 cm x 22.4cm)
