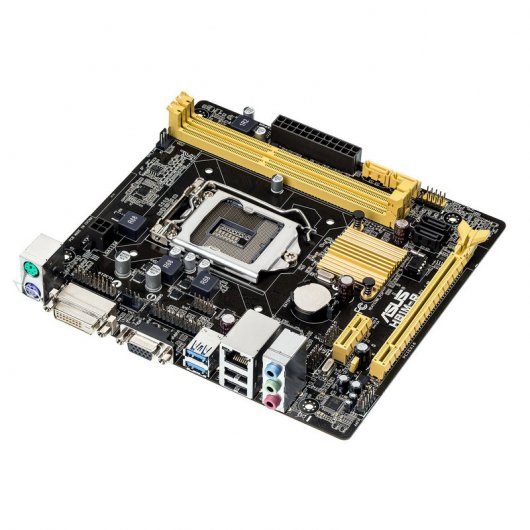

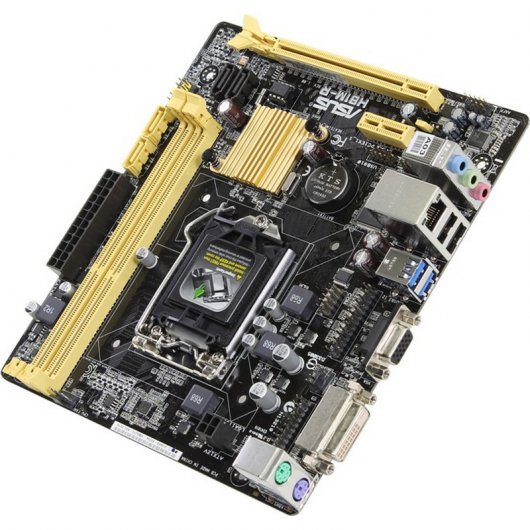

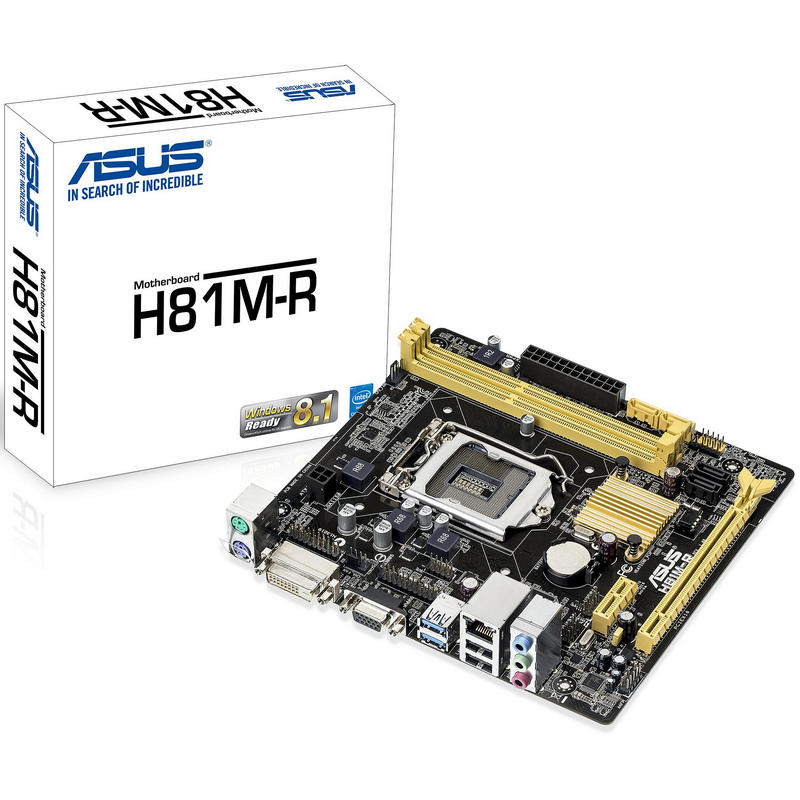

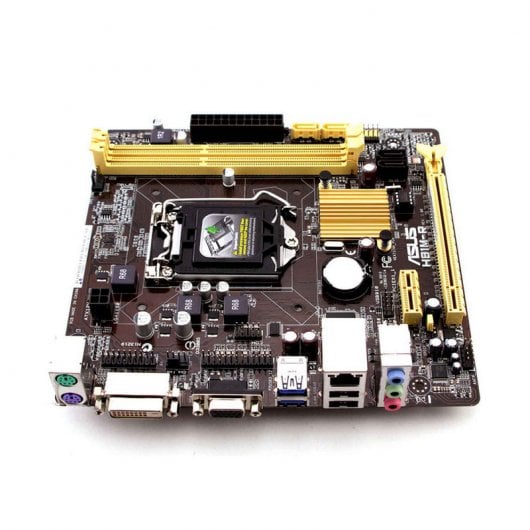

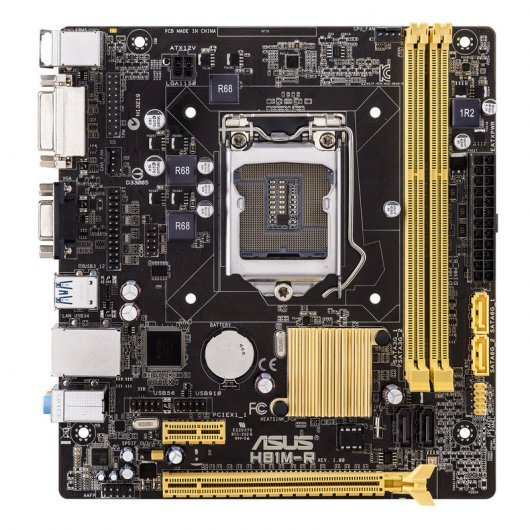

Asus H81M-R

Te presentamos la Asus H81M-R con Socket Intel 1150.

Características:

• ASUS Protección 5X - Protección completa proporciona la mejor calidad, fiabilidad y durabilidad
• USB 3.0 Boost (Apoyo UASP) - velocidad de transferencia de 170% más rápido que los tradicionales USB 3.0
• DVI - disfrute visual de alta definición
• Nueva UEFI BIOS - amigable, más fácil y más intuitiva con información útil añadió
• Network iControl - gestión de ancho de banda en tiempo real.

Especificaciones:

• CPU LGA1150 socket para 4th Generación Intel® Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
• Soporta CPU de 22nm
• Soporta Intel® Turbo Boost Technology 2.0
  • * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • ** Refer to www.asus.com for Intel® CPU support list.
• Chipset Intel® H81 Express Chipset
• Memory 2 x DIMMs, max.16GB, DDR3 1600/1333/1066 MHz, non-ECC, un-buffered memory
• Dual channel memoria
• Soporta Intel® Extreme Memory Profile (XMP)
  • * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL for details.
  • **Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.
  • *** Refer to www.asus.com for the Memory QVL(Qualified Vendors List).
• Expansion Slots
  • 1 x PCI Express x16 slot
  • 1 x PCI Express x1 slots
• VGA Integrado Graphics Processor - Intel® HD Graphics support
• Salida de Video: DVI-D/D-Sub port
  • - Soporta DVI-D con max. resolución up to 1920 x 1200 @60Hz
  • - Soporta D-Sub con max. resolución 1920x1200@60Hz
  • - Maximum shared memory of 1024MB
• Storage Intel® H81 Express Chipset:
  • - 2 x Serial ATA 6.0 Gb/s connectors (yellow)
  • - 2 x Serial ATA 3.0 Gb/s connectors (dark brown)
  • - Supports Intel® Rapid Start Technology* and Intel® Smart Connect Technology**
  • *Due to the limitation of the Intel® H81 chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
  • **These functions will work depending on the CPU installed.
• LAN Realtek® 8111GR Gigabit LAN
• Audio Realtek ALC891 8-channel High Definition Audio CODEC
  • - Supports Jack-Detection and Front Panel Jack-Retasking
  • * Use a chassis with HD audio module in the front panel to support an 8-channel audio output
• USB Intel® H81 Express Chipset- supports ASUS USB 3.0 Boost
  • - 2 x USB 3.0/2.0 ports at back panel (blue)
• Intel® H81 Express Chipset
  • - 6 x USB 2.0/1.1 ports (4 ports at mid-board,2 ports at the back panel)
• ASUS Unicas características ASUS Exclusivas
  • - ASUS EPU
  • - ASUS UEFI BIOS EZ
  • - ASUS GPU Boost
  • - ASUS Ai Charger
  • - ASUS AI Suite 3
  • - ASUS Anti-Surge protection
  • - ASUS ESD
• ASUS Quiet Thermal Solution
  • - ASUS Fan Xpert
• ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 2Back

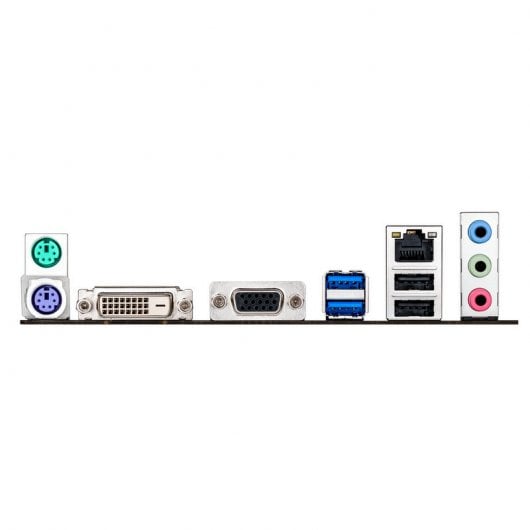

• Panel trasero I/O
  • 1 x PS/2 keyboard (purple)
  • 1 x PS/2 mouse port (green)
  • 2 x USB 3.0/2.0 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x DVI port
  • 1 x D-Sub port
  • 1 x LAN (RJ-45) port
  • 3 x Audio jacks support 8-channel audio output
• Conectores Internos I/O

  • 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports
  • 2 x SATA 6.0Gb/s connectors
  • 2 x SATA 3.0Gb/s connectors
  • 1 x 4-pin CPU Fan connector (PWM mode)
  • 1 x 4-pin Chassis Fan connector (PWM mode)
  • 1 x Front panel audio connector
  • 1 x 24-pin EATX Power connector
  • 1 x 4-pin EATX 12V Power connector
  • 1 x COM header
  • 1 x LPT header
  • 1 x TPM header
  • 1 x CLRTC jumper
  • 1 x Speaker connector
  • 1 x System Panel connector
• BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
• Accessorios
  • 2 x Serial ATA 6.0Gb/s cables
  • 1 x I/O shield
  • 1 x Support DVD
  • 1 x User´s manual
• Soporte
  • DVD Drivers
  • ASUS Utilities
  • EZ Update
  • Anti-virus software (OEM version)
• Operating System Support
  • Windows® 8.1
  • Windows® 8
  • Windows® 7
• Form Factor uATX Form Factor, 7.5”x 7.0” (19cm x 17.7cm)
