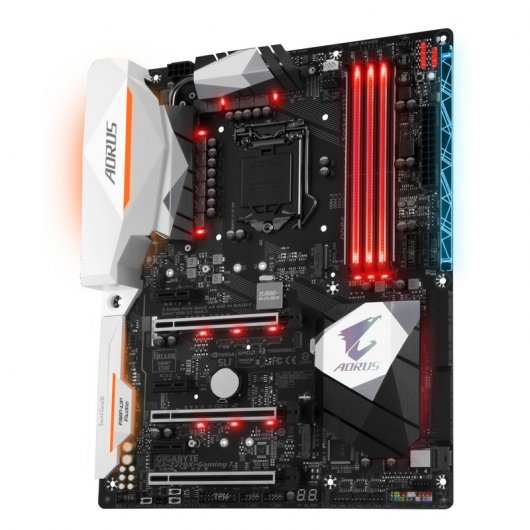

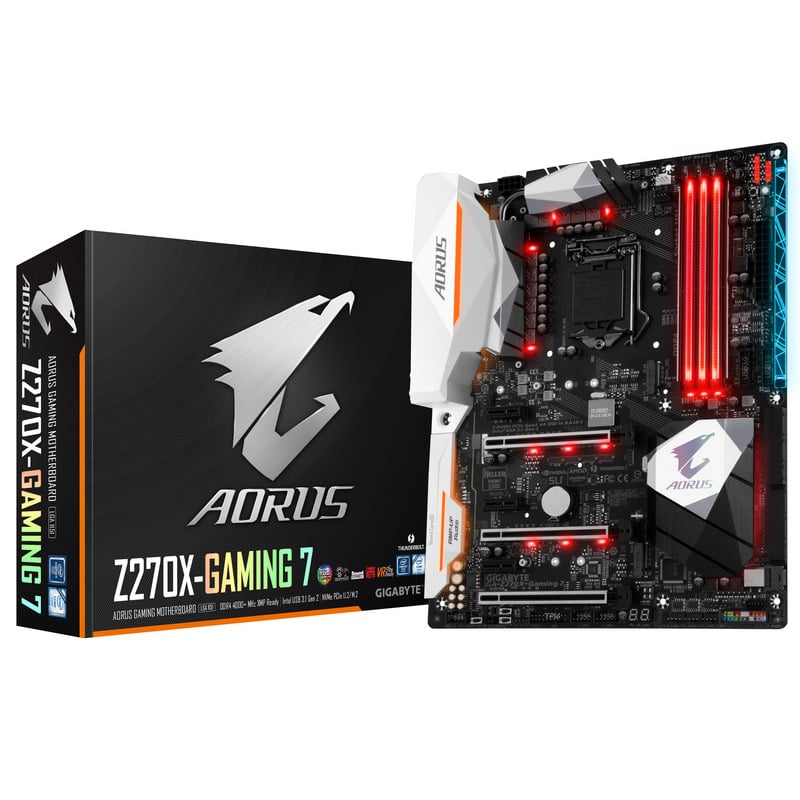

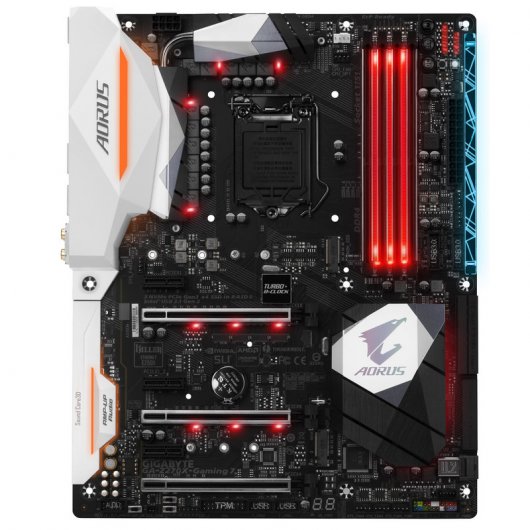

Te presentamos la Gigabyte Z270X-Gaming 7, una placa base con Socket Intel 1151 y chipset Z270.

Especificaciones

CPU
  1. Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z270 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
Maximum shared memory of 1 GB
Audio
  1. Creative® Sound Core 3D chip
  2. Support for Sound Blaster Recon3Di
  3. TI Burr Brown® OPA2134 operational amplifier
  4. High Definition Audio
  5. 2/5.1-channel
  6. Support for S/PDIF Out
LAN
  1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
  2. 1 x Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2P_32G connector. The PCIEX4 slot operates at up to x2 mode when an SSD is installed in the M2P_32G connector.
  4. 3 x PCI Express x1 slots
    * The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. The SATA3 1 connector becomes unavailable when the PCIEX1_3 is populated.
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage InterfaceChipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
  3. 1 x U.2 connector
  4. 3 x SATA Express connectors
  5. 6 x SATA 6Gb/s connectors
  6. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-10 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.
USBChipset+Intel® Thunderbolt™ 3 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset+Realtek® USB 3.1 Gen 1 Hub:
  1. 4 x USB 3.1 Gen 1 ports (available through the internal USB headers)
Š Chipset:
  1. 5 x USB 3.1 Gen 1 ports on the back panel
  2. 4 x USB 2.0/1.1 ports (available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x U.2 connector
  4. 2 x M.2 Socket 3 connectors
  5. 3 x SATA Express connectors
  6. 6 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 1 x water cooling CPU fan header
  9. 4 x system fan headers
  10. 2 x system fan/water cooling pump headers
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 2 x USB 3.1 Gen 1 headers
  14. 2 x USB 2.0/1.1 headers
  15. 1 x Trusted Platform Module (TPM) header
  16. 1 x RGB (RGBW) LED strip extension cable header
  17. 1 x Thunderbolt™ add-in card connector
  18. 1 x Clear CMOS jumper
  19. 2 x temperature sensor headers
  20. 1 x power button
  21. 1 x reset button
  22. 1 x Clear CMOS button
  23. 1 x ECO button
  24. 1 x OC button
  25. 1 x audio gain control switch
  26. Voltage Measurement Points
  27. 2 x BIOS switches

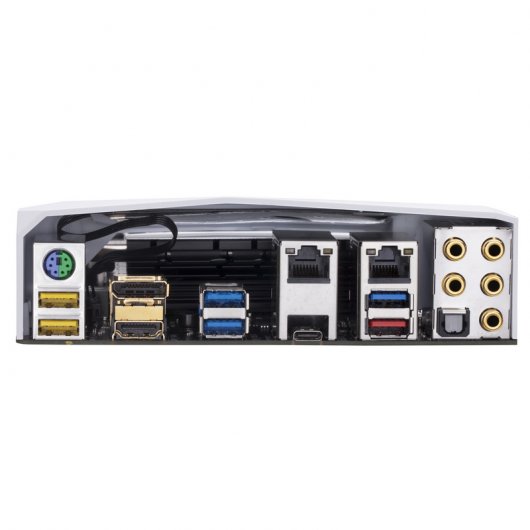

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x Thunderbolt™3 port (USB Type-C™ port, with USB 3.1 Gen 2 support)
  5. 1 x USB 3.1 Gen 2 Type-A port (red)
  6. 5 x USB 3.1 Gen 1 ports
  7. 2 x RJ-45 ports
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    USB DAC-UP 2
    V-Tunerr
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Smart Response Technology
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Operating systems supported may vary depending on your processor model.
    * Please download the "Windows USB Installation Tool" from GIGABYTE?s website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
  1. GA-Z270X-Gaming 7 motherboard
  2. Motherboard driver disk
  3. User?s Manual
  4. Quick Installation Guide
  5. Four SATA cables
  6. I/O Shield
  7. One GC-SLI2P bridge connector
  8. One G Connector
  9. One pack of back I/O dust cover
  10. One RGB (RGBW) LED strip extension cable
  11. Two velcro cable ties
  12. Two thermistors cables
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors? website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
