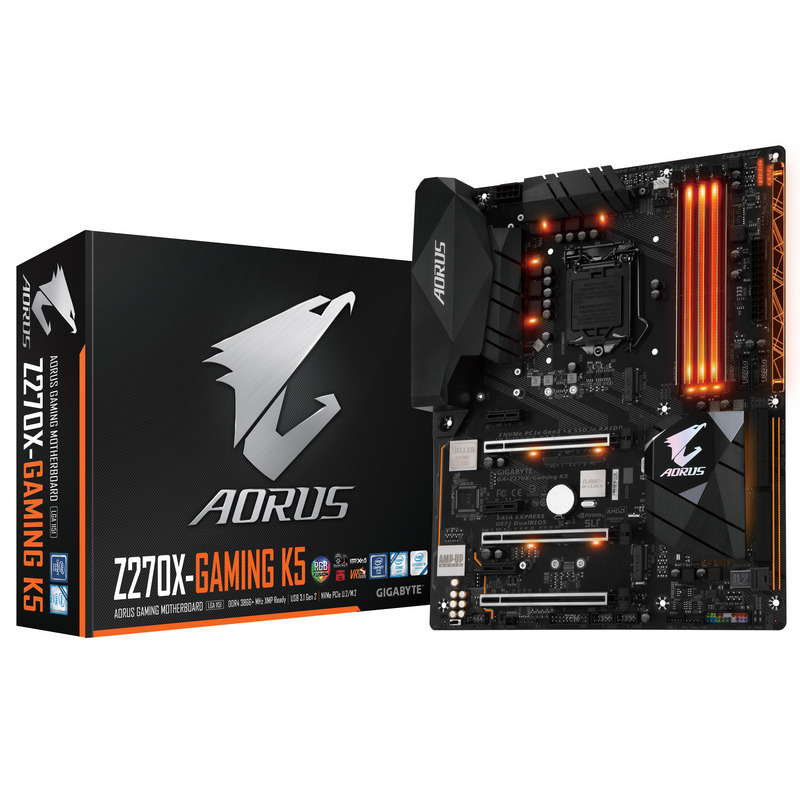

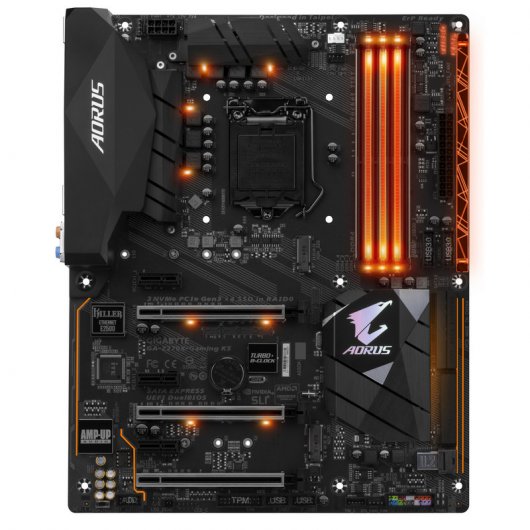

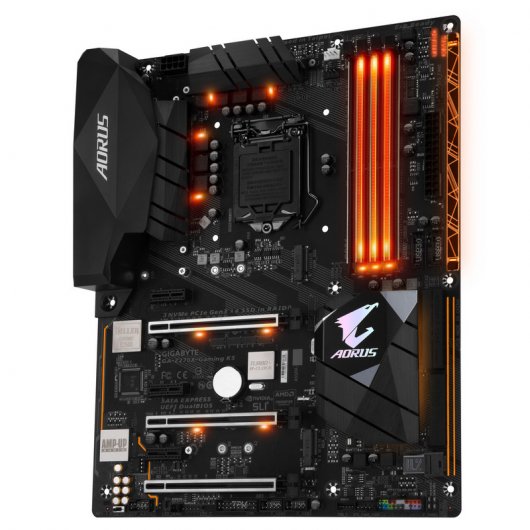

Te presentamos la Gigabyte Z270-Gaming K5, una placa base con Socket Intel 1151 y chipset Z270.

Características:

  • Compatible con procesadores de 7ª y 6ª Generación Intel® Core™
  • DDR4 Dual Channel Non-ECC Unbuffered , 4 DIMMs
  • Memoria Intel® Optane™
  • USB DAC-UP 2 con voltaje ajustable.
  • Rápido USB 3.1 Gen 2 con USB Type-C™ and Type-A
  • Soporte gráfico de 3 vías con diseño Dual Armor y Ultra Durable™
  • Soporte triple NVMe PCIe SSD en RAID 0
  • Conector NVMe PCIe Gen3 x4 U.2
  • Doble Ultra-Fast M.2 con PCIe Gen3 x4 ce interfaz SATA
  • Sound Blaster X-Fi MB5 + ALC 1220 120dB SNR HD Audio
  • Red Gaming Killer™ E2500
  • APP Center, que incluye las utilidades EasyTune™ y Cloud Station™
  • GIGABYTE UEFI DualBIOS™
  • Soporte para Lightning-Fast Intel® Thunderbolt™ 3 AIC
  • Zona LED personalizable
  • Smart Fan 5 cuenta con varios sensores de temperatura y cabezales híbridos
  • Programa de iluminación RGB FUSION LED

Especificaciones

CPU
  1. Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® Z270 Express Chipset
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC1220 codec
  2. TI Burr Brown® NE5532P operational amplifier
  3. Support for Sound Blaster X-Fi MB5
  4. High Definition Audio
  5. 2/4/5.1/7.1-channel
  6. Support for S/PDIF Out
LAN
  1. Killer™ E2500 LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with all of the PCI Express x1 slots. When the PCIEX1_1, PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x1 mode.
  4. 3 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage InterfaceChipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)
  3. 1 x U.2 connector
  4. 3 x SATA Express connectors
  5. 6 x SATA 6Gb/s connectors
  6. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USBChipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
  1. 7 x USB 3.1 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 2 x system fan headers
  6. 1 x system fan/water cooling pump header
  7. 1 x RGB (RGBW) LED strip extension cable header
  8. 3 x SATA Express connectors
  9. 6 x SATA 6Gb/s connectors
  10. 2 x M.2 Socket 3 connectors
  11. 1 x U.2 connector
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x S/PDIF Out header
  15. 2 x USB 3.1 Gen 1 headers
  16. 2 x USB 2.0/1.1 headers
  17. 1 x Trusted Platform Module (TPM) header
  18. 1 x Thunderbolt™ add-in card connector
  19. 1 x Clear CMOS jumper
  20. 1 x audio gain control switch

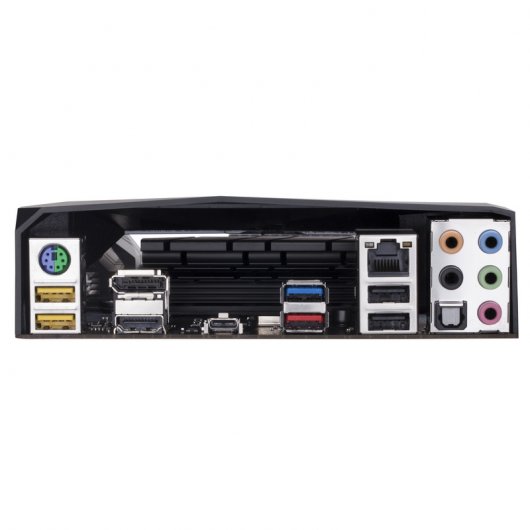

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  5. 1 x USB 3.1 Gen 2 Type-A port (red)
  6. 3 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    USB DAC-UP 2
    V-Tuner
  2. Support for 3TB+ Unlock
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Optane™ Memory Ready
Operating System
  1. Support for Windows 10/8.1 64-bit
  2. Support for Windows 7 32-bit/64-bit
    * Operating systems supported may vary depending on your processor model.
    * Please download the "Windows USB Installation Tool" from GIGABYTE?s website and install it before installing Windows 7.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
  1. GA-Z270X-Gaming K5 motherboard
  2. Four SATA cables
  3. Motherboard driver disk
  4. I/O Shield
  5. User?s Manual
  6. One G Connector
  7. Quick Installation Guide
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors? website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
