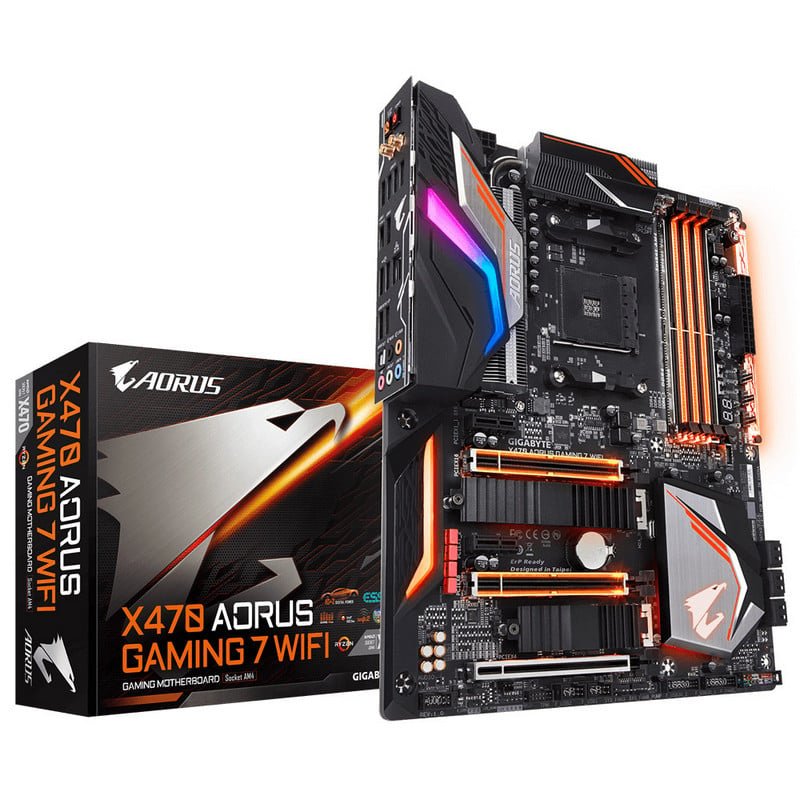

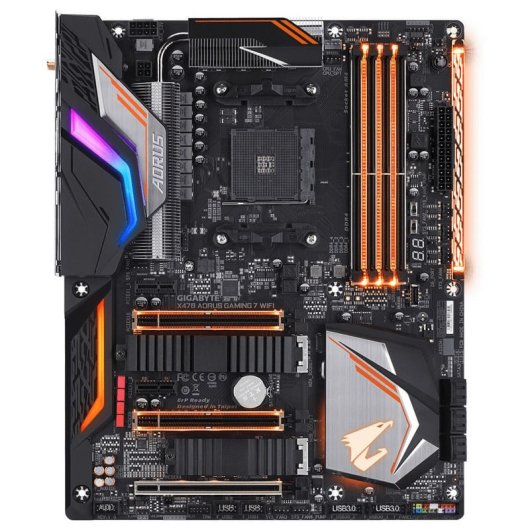

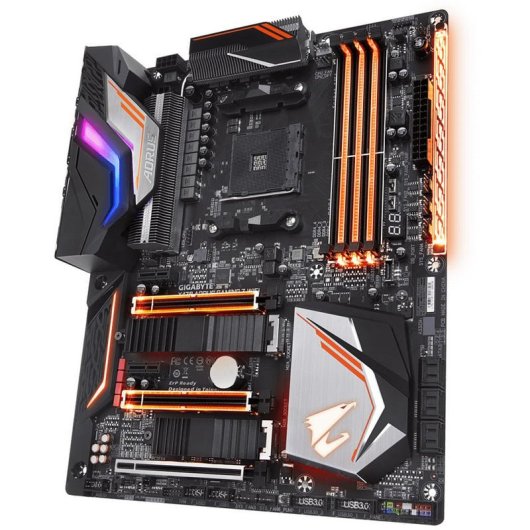

Placa Base Gigabyte Aorus X470 Gaming 7 WiFi

Gigabyte presenta su placa base Aorus X470 Gaming7 WiFi, una placa base con socket AMD AM4 y chipset X470.

Especificaciones:

• CPU
  • AM4 Socket:
  • AMD Ryzen™ processor
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD X470
• Memory
  • 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  • Dual channel memory architecture
  • Support for DDR4 3600+(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Audio
  • Realtek® ALC1220 codec
  • ES9018Q2C chip
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Intel® GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication module
  • Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5
  • Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  • * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  • (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • * The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
  • 2 x PCI Express x1 slots
  • (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SOCKET)
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
  • (M2B_SOCKET)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• Multi-Graphics Technology
  • Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• USB
  • ASMedia® USB 3.1 Gen 2 Controller:
  • 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  • 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
  • Chipset:
  • 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
  • 6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • CPU:
  • 4 x USB 3.1 Gen 1 ports on the back panel
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x digital LED strip headers
  • 2 x digital LED strip power select jumpers
  • 2 x RGB (RGBW) LED strip headers
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  • 2 x USB 3.1 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper
  • 1 x OC button
  • 1 x BIOS switch
  • 1 x DualBIOS™ switch
  • 2 x temperature sensor headers

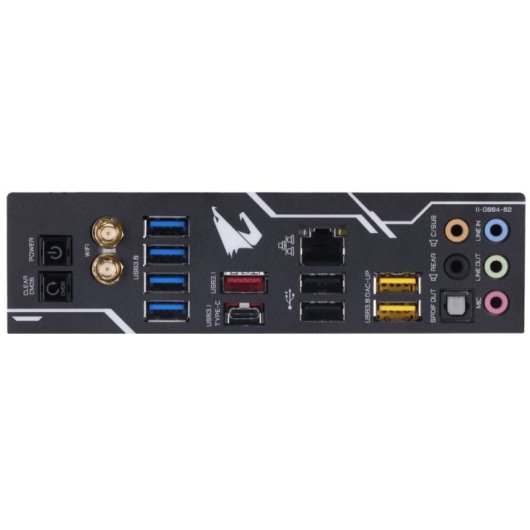

• Back Panel Connectors
  • 1 x power/reset button
  • 1 x Clear CMOS button
  • 2 x MMCX antenna connectors (2T2R)
  • 6 x USB 3.1 Gen 1 ports
  • 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  • 1 x USB 3.1 Gen 2 Type-A port (red)
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the cooler (pump)you install.
• BIOS
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • 3D OSD
  • @BIOS
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • Smart Keyboard
  • Smart TimeLock
  • Smart HUD
  • System Information Viewer
  • USB Blocker
  • USB DAC-UP 2
  • V-Tuner
  • Support for Q-Flash
  • Support for Xpress Install
• Bundle Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
  • XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
  • Support for Windows 10 64-bit
  • Support for Windows 7 64-bit
  • * To support Windows 7 64-bit, you must install an AMD Ryzen™ Summit Ridge CPU.
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
