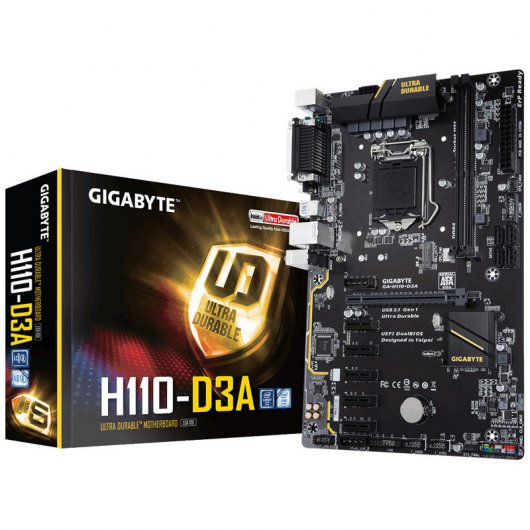

Gigabyte GA-H110-D3A (Bitcoin)

Te presentamos la Gigabyte GA-H110-D3A, una placa base con socket Intel 1151 y chipset H110 diseñada para ser utilizada en minería de criptomonedas.

Especificaciones:

• CPU
  • Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  • L3 cache varies with CPU
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • Intel® H110 Express Chipset
• Memory
  • 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  • * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  • Dual channel memory architecture
  • Support for DDR4 2133 MHz memory modules
  • Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • * To support 2400 MHz or XMP memory, you must install a 7th generation processor.
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor - Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • Maximum shared memory of 1 GB
• Audio
  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • Support for S/PDIF Out
• LAN
  • Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16
  • (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  • 5 x PCI Express x1 slots
  • (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
• Storage Interface
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
  • 4 x SATA 6Gb/s connectors
  • * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• USB
  • Chipset:
  • 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 2 x PCIe power connectors
  • 1 x CPU fan header
  • 3 x system fan headers
  • 4 x SATA 6Gb/s connectors
  • 1 x M.2 Socket 3 connector
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x USB 3.1 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Clear CMOS jumper

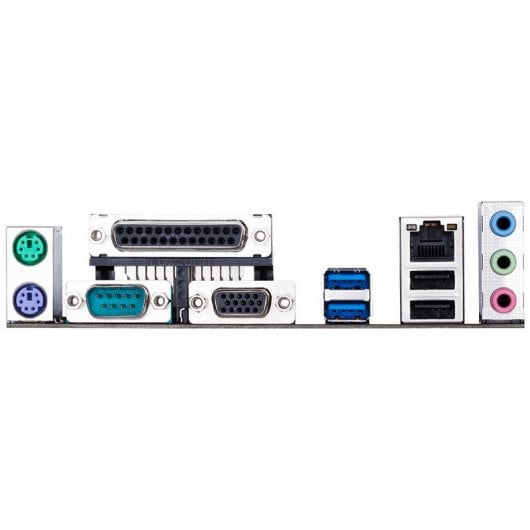

• Back Panel Connectors
  • 1 x PS/2 mouse port
  • 1 x PS/2 Keyboard port
  • 1 x parallel port
  • 1 x serial port
  • 1 x D-Sub port
  • 2 x USB 3.1 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 2 x 64 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • 3D OSD
  • @BIOS
  • Ambient LED
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • ON/OFF Charge
  • Smart TimeLock
  • Smart Keyboard
  • Smart Backup
  • System Information Viewer
  • USB Blocker
  • Support for Q-Flash
  • Support for Xpress Install
  • Bundle Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
• Operating System
  • Windows® 10 64-bit (for 7th Generation Intel® Processors)
  • Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
  • * Please download the "Windows USB Installation Tool" from GIGABYTE´s website and install it before installing Windows 7.
• Form Factor
  • ATX Form Factor; 30.5cm x 19.0cm
