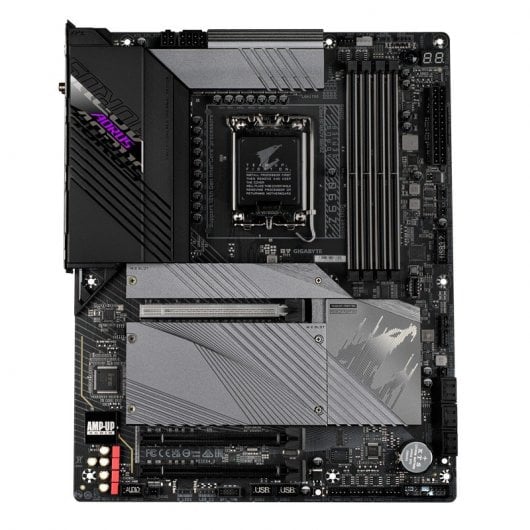

Gigabyte Z690 AORUS PRO

Gobierna supremamente con las placas base para juegos Z690 AORUS. El nuevo rey de la plataforma de juegos continúa la legendaria línea de sangre AORUS con la entrega de energía más robusta y el diseño térmico dominante, glorificado con la tecnología de overclocking de memoria completa para coronar su PC con el mejor rendimiento de Alder Lake en todo su esplendor de juego.

Características

• Admite procesadores de la serie Intel® Core ™ de 12.a generación
• DDR5 sin búfer no ECC de doble canal, 4 DIMM
• Diseño VRM digital directo 16 + 1 + 2 con etapa de potencia de 90 A * y condensador de polímero de tantalio
• Diseño de MEMORIA DDR5 XTREME con SMD DIMM y enrutamiento de memoria blindado
• Diseño térmico totalmente cubierto con disipadores de calor MOSFET de alta cobertura
• Intel® WIFI 6802.11ax 2T2R y BT5 con antena AORUS
• Audio de alta fidelidad con condensadores de audio ALC4080 y WIMA
• LAN rápida de 2,5 GbE con gestión de ancho de banda
• 4x NVMe PCIe 4.0 * / 3.0 x4 M.2 ultrarrápidos con protección térmica ampliada
• SuperSpeed USB 3.2 Gen2x2 TYPE-C ofrece velocidades de transferencia de hasta 20 Gb / s
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras de LED direccionables y RGB
• Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

• CPU
  • LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  • (Go to GIGABYTE's website for the latest CPU support list.)
  • L3 cache varies with CPU
  • (Please refer to "CPU Support List" for more information.)
• Chipset
  • Intel® Z690 Express Chipset
• Memory
  • Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • * Support for DisplayPort 1.2 version and HDCP 2.3
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® ALC4080 CODEC
  • High Definition Audio
  • 2-channel analog output
  • Support for S/PDIF Out
  • 7.1-channel digital signals
  • * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
• LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • Intel® Wi-Fi 6 AX200:
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  • 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  • (The PCIEX4 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Intel® Optane™ Memory Ready
  • * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
• USB
  • Chipset:
  • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
  • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • Chipset+2 USB 3.2 Gen 1 Hubs:
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Chipset+2 USB 2.0 Hub:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 4 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x power button
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 2 x temperature sensor headers
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
• Back Panel Connectors
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 4 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
