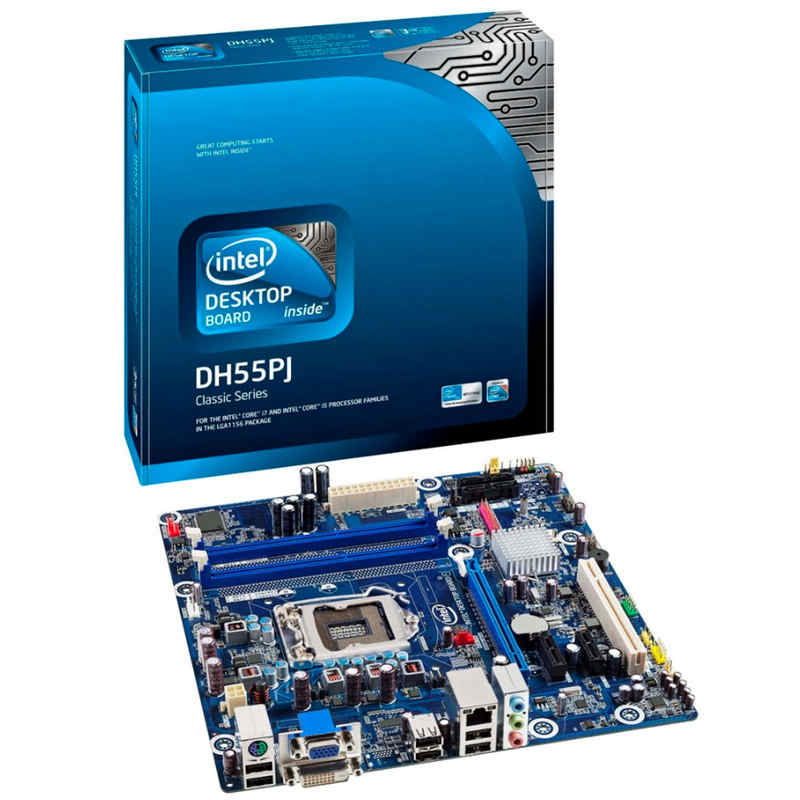

Intel DH55PJ

Especificaciones:

• Memory Specifications
  • Max Memory Size (dependent on memory type) 8 GB
  • Memory Types DDR3-1333/1066
  • # of Memory Channels 2
  • # of DIMMs 2
  • ECC Memory Supported No
• Graphics Specifications
  • Integrated Graphics Yes
  • Graphics Output DVI-D, VGA
  • Dual Display Capable Yes
  • Discrete Graphics PCIe x16
• Expansion Options
  • PCI Support 1
  • PCIe x1 Gen 2.x 2
  • PCIe x4 Gen 2.x 0
  • PCIe x8 Gen 2.x 0
  • PCIe x16 Gen 2.x 1

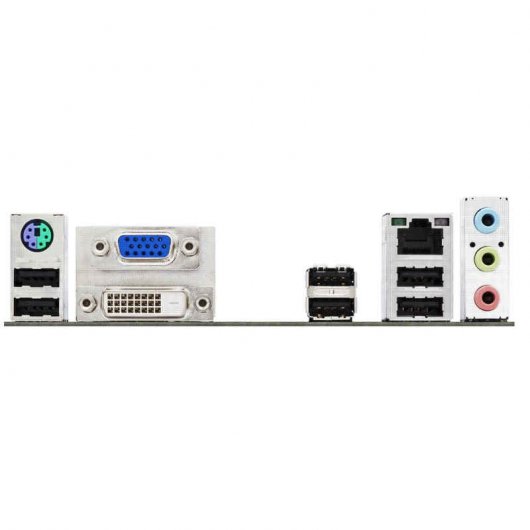

• I/O Specifications
  • USB 2.0 Configuration (Back + Internal) 6+6
  • Total # of SATA Ports 4
  • # of eSATA Ports 0
  • RAID Configuration N/A
  • # of PATA Ports 0
  • Parallel Port via Internal Header Yes
  • Serial Port via Internal Header Yes
  • Audio (back channel + front channel) 6+2
  • Integrated LAN 10/100/1000
  • Firewire 0+0
  • S/PDIF Out Connector 1
  • # of PS2 Ports 1
• Package Specifications
  • Max CPU Configuration 1
  • Energy Star Yes
  • Low Halogen Options Available See MDDS
• Advanced Technologies
  • Intel® Virtualization Technology for Directed I/O (VT-d) No
  • Intel® Trusted Execution Technology No
  • Intel® vPro Technology No
  • Intel® Active Management Technology No
  • Intel® AMT Version N/A
  • Intel® Remote Wake Technology Yes
  • Intel® Remote PC Assist Technology No
  • Intel® CIRA Technology No
  • Intel® Anti-Theft Technology No
  • TPM No
  • Intel® Quiet System Technology Yes
  • Intel® HD Audio Technology Yes
  • Intel® Matrix Storage Technology No
