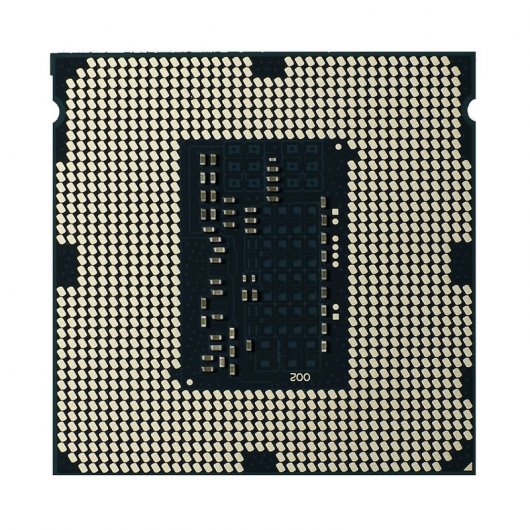

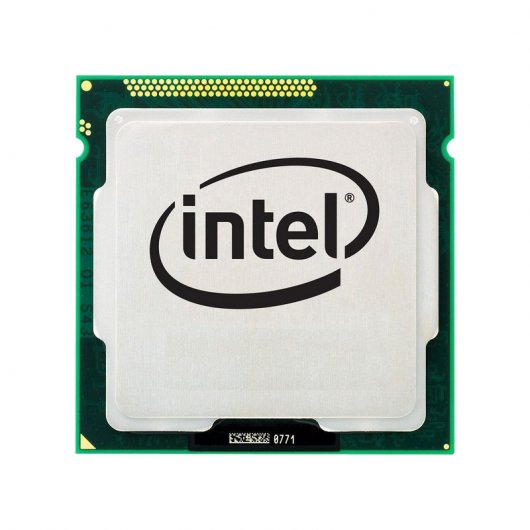

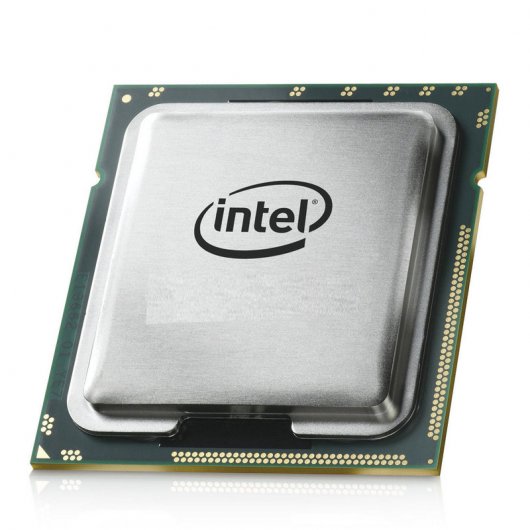

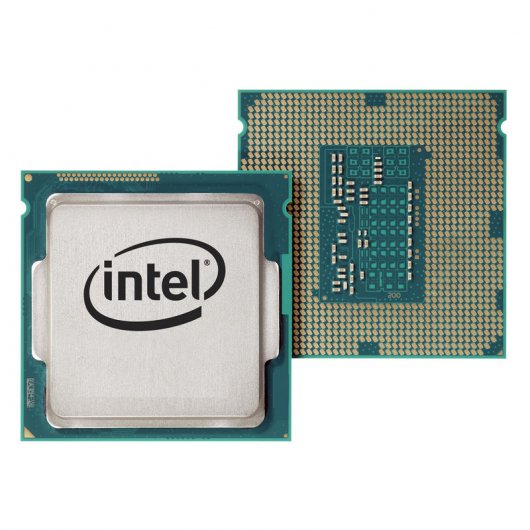

Intel Pentium G3260 3.3Ghz Box

General information

• Type CPU / Microprocessor
• Market segment Desktop
• Family Intel Pentium Dual-Core
• Model number ? G3260
• Frequency ? 3300 MHz
• Bus speed ? 5 GT/s DMI
• Clock multiplier ? 33
• Package 1150-land Flip-Chip Land Grid Array
• Socket Socket 1150 / H3 / LGA1150

Architecture / Microarchitecture

• Microarchitecture Haswell
• Processor core ? Haswell
• Core stepping ? C0 (SR1K8)
• Manufacturing process 0.022 micron
• Data width 64 bit
• The number of cores 2
• The number of threads 2
• Floating Point Unit Integrated
• Level 1 cache size ?
  • 2 x 32 KB 8-way set associative instruction caches
  • 2 x 32 KB 8-way set associative data caches
• Level 2 cache size ? 2 x 256 KB 8-way set associative caches
• Level 3 cache size 3 MB 12-way set associative shared cache
• Physical memory 32 GB
• Multiprocessing Uniprocessor
• Features
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
  • EM64T / Extended Memory 64 technology / Intel 64 ?
  • NX / XD / Execute disable bit ?
  • VT-x / Virtualization technology ?
  • Low power features Enhanced SpeedStep technology ?
• Integrated peripherals / components
  • Integrated graphics GPU Type: HD (Haswell)
  • Base frequency (MHz): 350
  • Maximum frequency (MHz): 1100
  • The number of supported displays: 3
• Memory controller
  • The number of controllers: 1
  • Memory channels: 2
  • Supported memory: DDR3-1333, DDR3L-1333
• Other peripherals
  • Direct Media Interface 2.0
  • PCI Express 3.0 interface (16 lanes)
• Electrical / Thermal parameters
  • Maximum operating temperature ? 72°C
  • Thermal Design Power ? 53 Watt
