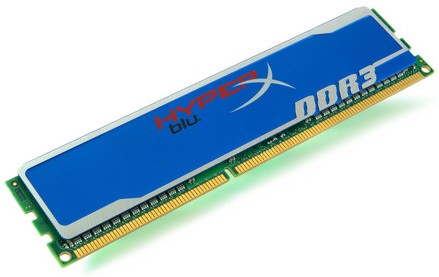

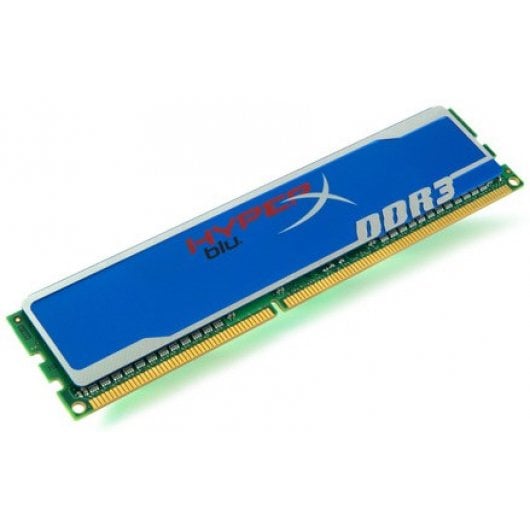

Kingston HyperX Blu DDR3 1600 PC3-12800 4GB CL9

This document describes Kingston´s 512M x 64-bit (4GB) DDR3-1600 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory module, based on sixteen 256M x 8-bit FBGA components. This module has been tested to run at DDR3-1600 at a low latency timing of 9-9-9-27 at 1.65V.The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9. This 240-pin DIMM uses gold contact fingers. The JEDEC electrical and mechanical specifications are as follows:

FEATURES

• JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 667MHz fCK for 1333Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component

SPECIFICATIONS

• CL(IDD) 9 cycles
• Row Cycle Time (tRCmin) 49.5ns (min.)
• Refresh to Active/Refresh 160ns (min.)
• Command Time (tRFCmin)
• Row Active Time (tRASmin) 36ns (min.)
• Power (Operating) 1.800 W*
• UL Rating 94 V - 0
• Operating Temperature 0o C to 85o C
• Storage Temperature -55o C to +100o C
