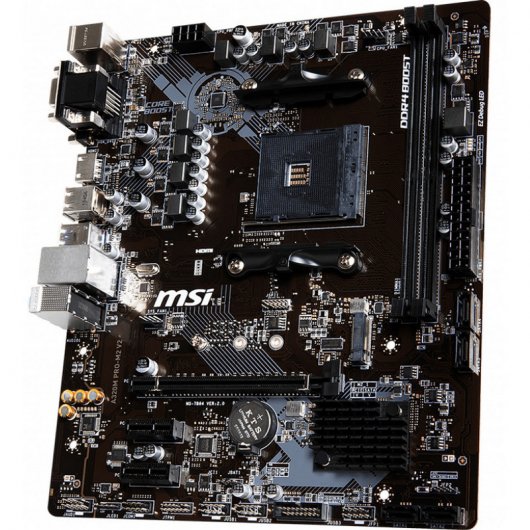

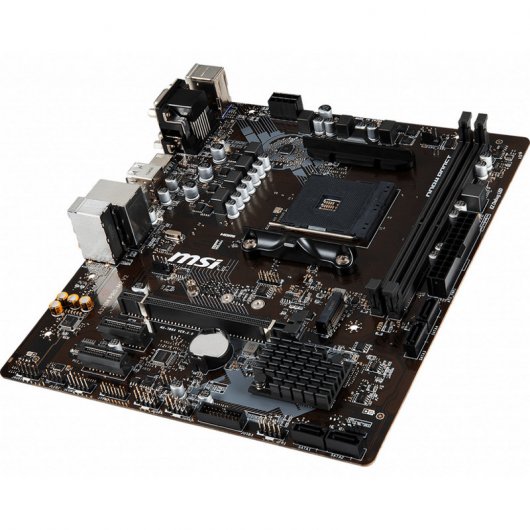

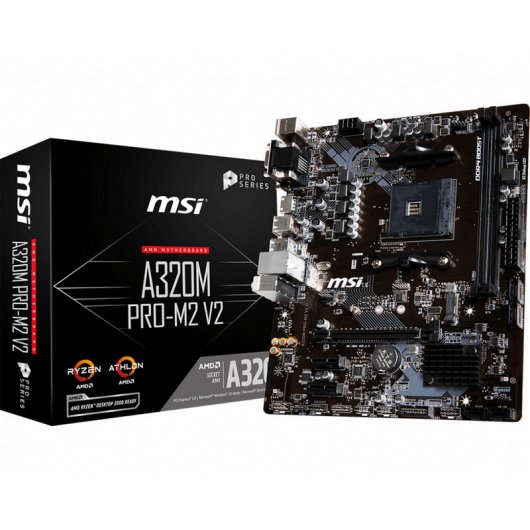

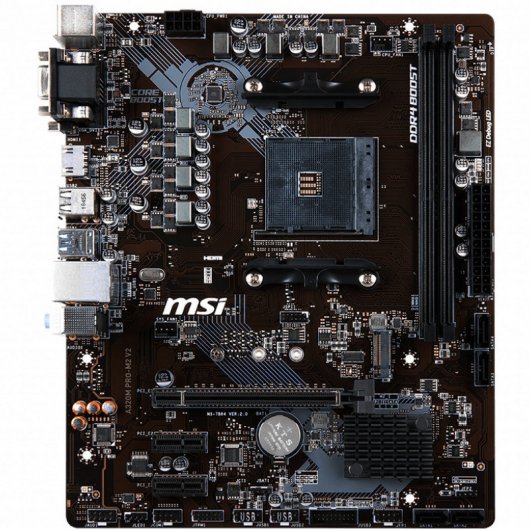

MSI A320M PRO-M2 V2

Te presentamos la MSI A320M-PRO-M2 V2 Plus, una placa base con socket AMD AM4 y chipset B320.

Especificaciones:

• Processor
  • Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
• Chipset
  • AMD® A320 Chipset
• Memory
  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz1
  • Dual channel memory architecture
  • Supports ECC UDIMM memory (non-ECC mode)
  • Support non-ECC UDIMM memory
  • A-series / Athlon ™ X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory.
• Slots
  • 1 x PCIe 3.0 x16 slot
  • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
  • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics and A-series/Athlon™X4 processors
  • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 2 x PCIe 2.0 x1 slots
• Onboard Graphics
  • 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz1,2
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
  • 1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160@24Hz1,2
  • Only support when using Ryzen ™ with Radeon ™ Vega Graphics/ Athlon ™ with Radeon ™ Vega Graphics and A-series processors.
  • Processors Maximum shared memory of 2048 MB
• Storage
  • AMD® A320 Chipset
  • 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1 and RAID 10
  • 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics and A-series /Athlon™ X4 Processors) and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices
• USB
  • AMD® A320 Chipset
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
  • 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
  • AMD® processor
  • 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
• Audio
  • Realtek® ALC887 Codec
  • 7.1-Channel High Definition Audio
• LAN
  • 1 x Realtek® 8111H Gigabit LAN controller
• Internal connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x LED strip connector
  • 1 x Clear CMOS jumper

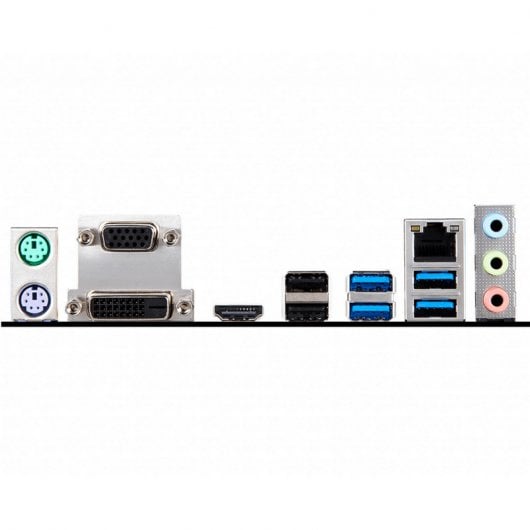

• Back panel ports
  • Mouse
  • VGA Port
  • USB 2.0
  • LAN Port
  • HD Audio Connectors
  • Keyboard
  • DVI-D Port
  • HDMI Port
  • USB 3.1 Gen1
  • MSI A320M PRO-M2 V2 back panel ports
• Dimensions
  • 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
  • m-ATX Form Factor
• Mounting
  • 9 mounting holes
• Operating System
  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit
  • * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
