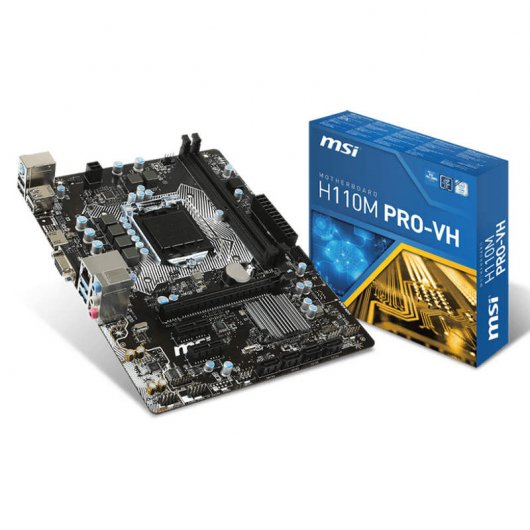

MSI H110M PRO-VH

Las placas base de la serie PRO caben en cualquier PC. Calidad en la que puede confiar con el máximo rendimiento y soluciones de negocio inteligentes son aspectos clave de estas placas base. Haga su vida más fácil y haga crecer su negocio con las placas base de la serie PRO súper estables, fiables y duraderas.

Características:

• Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
• Supports DDR4-2133 Memory
• DDR4 Boost: Give your DDR4 memory a performance boost
• USB 3.1 Gen1 + SATA 6Gb/s
• VGA Armor: Reinforced Armor slot
• Click BIOS: Secure and Reliable UEFI BIOS solution
• Audio Boost: Reward your ears with studio grade sound quality
• Military Class 4: Top Quality & Stability
• Guard-Pro: Improved Protection and Power Efficiency
• EZ Debug LED: Easiest way to troubleshoot
• Overvoltage Protection:Prevent Unforeseen Damage
• 4K UHD Support: Ultra-high Definition Visual Experience
• Intel® SBB Support: Improves Productivity, Management and Security
• WHQL CERTIFIED.WINDOWS 10 READY.

Especificaciones:

• CPU
  • Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
• Chipset
  • Intel® H110 Chipset
• Main Memory
  • 2 x DDR4 memory slots, support up to 32GB
    • Supports DDR4 2133 MHz
  • Dual channel memory architecture
  • Supports Non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
• Slots
  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots
• Onboard Graphics
  • 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• On-Board SATA
  • Intel® H110 Chipset
  • 4 x SATA 6Gb/s ports
• USB
  • Intel® H110 Chipset
    • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
    • 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors)
• Audio
  • Realtek® ALC887 Codec
  • 7.1-Channel High Definition Audio
• LAN
  • 1 x Realtek RTL8111H Gigabit LAN controller

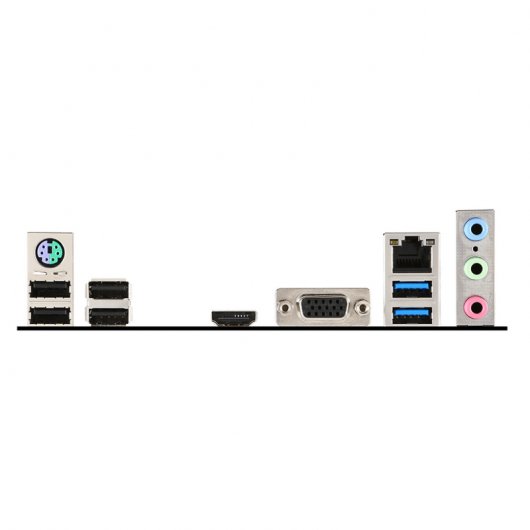

• Back Panel I/O Ports
  • 1 x PS/2 keyboard/ mouse port
  • 4 x USB 2.0 ports
  • 2 x USB 3.1 Gen1 ports
  • 1 x HDMI™ port
  • 1 x VGA port
  • 1 x LAN (RJ45) port
  • 3 x audio jacks
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 2.0 connectors (supports additional 2 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Serial Port connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
• Dimension
  • 23.5 cm x 18.0 cm Micro-ATX Form Factor
