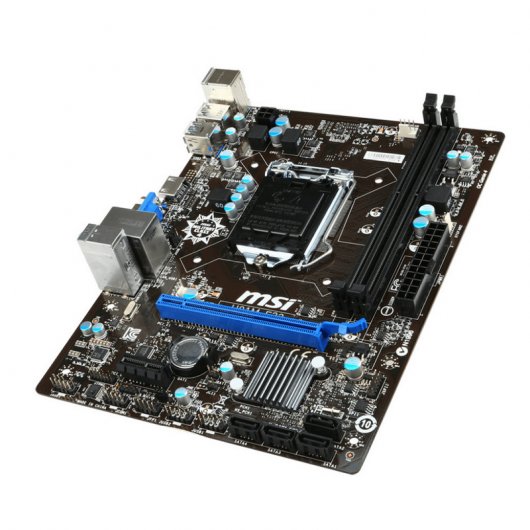

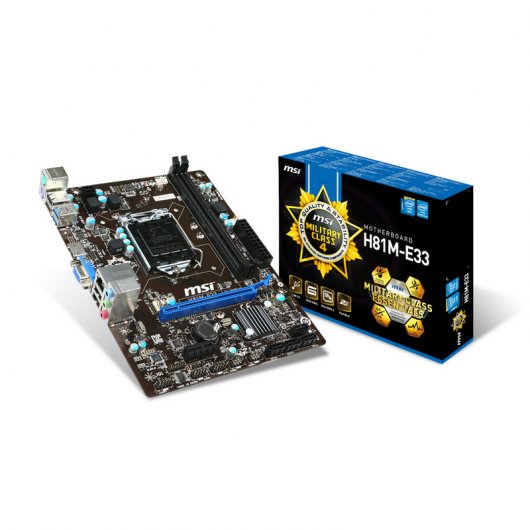

MSI H81M-E33

Te presentamos  la H81M-E33 de MSI, una placa base con socket Intel 1150.

Características:

• Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
• Supports DDR3-1600 Memory
• USB 3.0 + SATA 6Gb/s
• Military Class 4: Top Quality & Stability
• Military Class Essentials: Total Protection for Military Class Motherboards
• OC Genie 4: Overclock in 1 Second
• Click BIOS 4: Easily Fine-tune Your System
• 4K UHD Support: Ultra-high Definition Visual Experience
• Command Center: Control & Customize Your PC Settings
• Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
• M-Flash: Simply Update & Backup Your BIOS
• Live Update 5: Easily Update The Latest BIOS & Drivers

Especificiciones:

• CPU
  • 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
  • Please refer to CPU Support for compatible CPU; the above description is for reference only.
• Chipset
  • Intel® H81 Express
• Main Memory
  • Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
  • Supports Dual-Channel mode
• Slots
  • 1 x PCIe 2.0 x16 slot
  • 1 x PCIe x1 slot
• On-Board SATA
  • SATAIII controller integrated in Intel® H81 chipset
  • Up to 6Gb/s transfer speed.
  • Supports two SATAIII ports (SATA1~2) by H81
  • SATAII controller integrated in Intel® H81 chipset
  • Up to 3Gb/s transfer speed.
  • Supports two SATAII ports (SATA3~4) by H81
• USB 3.0
  • 2 x USB 3.0 ports on the back panel (rear x 2)
• Audio
  • Chip integrated by Realtek® ALC887
  • Flexible 8-channel audio with jack sensing
  • Compliant with Azalia 1.0 spec
  •
• LAN
  • Supports Gb LAN 10/100/1000 by Realtek® RTL8111G
• Internal I/O Connectors
  • 1 x ATX 24-Pin power connector
  • 1 x 4-pin ATX 12V power connector
  • CPU x 1 / System x 2 FAN connectors
  • 1 x Clear CMOS jumper
  • 2 x SATAIII connectors
  • 2 x SATAII connectors
  • 2 x USB 2.0 connectors
  • 1 x Serial port connector
  • 1 x Trusted Platform Module (TPM) header
  • 1 x Front Panel Audio connector
  • 1 x Chassis Intrusion connector

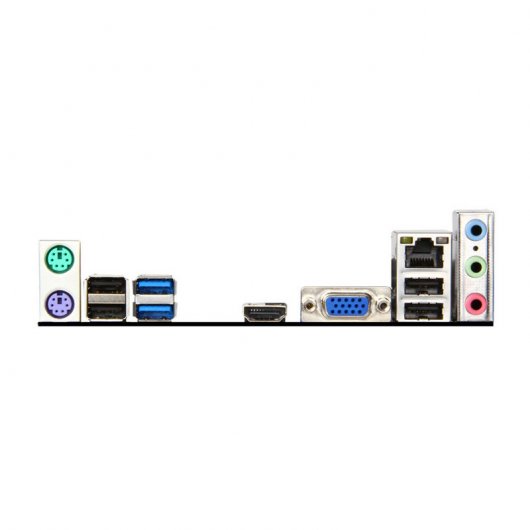

• Back Panel I/O Ports
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 4 x USB 2.0 ports
  • 2 x USB 3.0 ports
  • 1 x RJ45 LAN Jack
  • 1 x 3 in 1 audio jack
  • 1 x Graphic Card port
  • 1 x HDMI port
• BIOS
  • The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
• Dimension
  • 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor
• Mounting
  • 6 mounting holes
