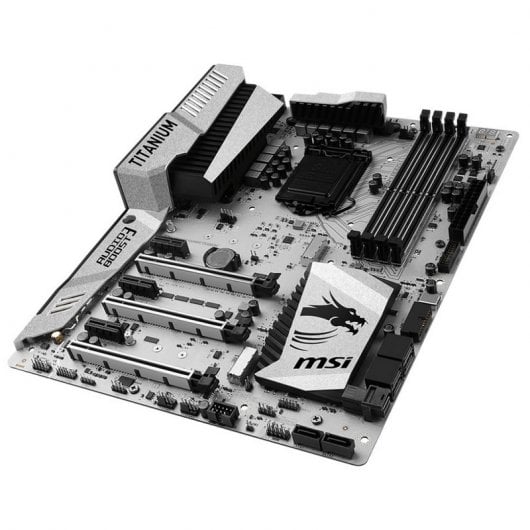

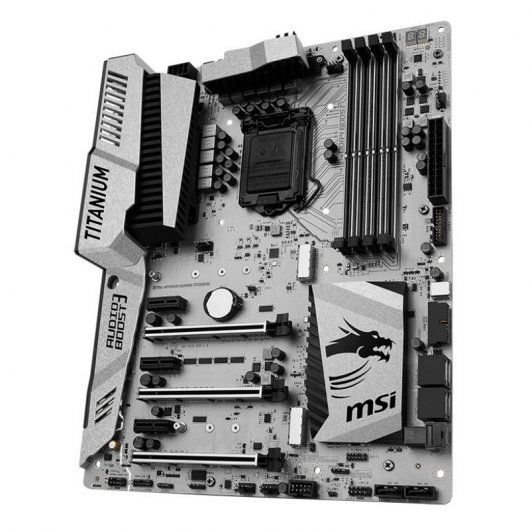

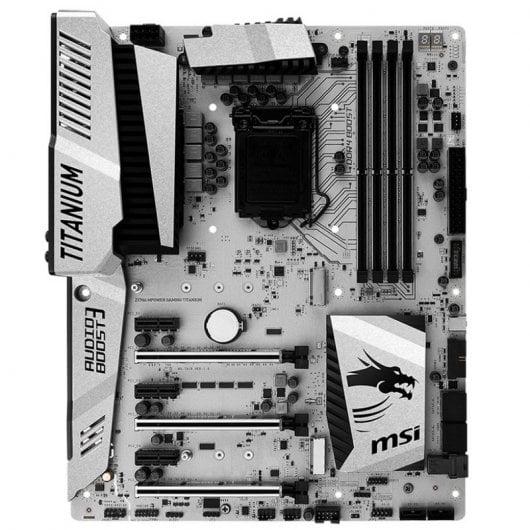

MSI Z170A MPOWER Gaming Titanium

Te presentamos la Z170A MPower Gaming Titanium de MSI, una placa con socket Intel 1151 y chipset Z170

Características:

• Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
• Supports DDR4-3866+(OC) Memory
• DDR4 Boost: Give your DDR4 memory a performance boost
• USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection
• TITANIUM BACKPLATE: For the biggest and heaviest graphics cards and CPU coolers.
• Twin Turbo M.2 64Gb/s + Turbo U.2 32Gb/s + USB 3.1 Gen2 Type-A+c + SATA 6Gb/s
• GAMING LAN with LAN Protect, powered by Intel®: The best online gaming experience with lowest latency
• Audio Boost 3: Reward your ears with studio grade sound quality
• Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality
• Game Boost: This one goes up to eleven; 8 levels of easy overclocking
• GAMING Hotkey: Assign macros, launch your favorite games or do real-time overclocking using a single button
• Designed for overclocking: with OC Essentials and OC Engine 2
• XSplit Gamecaster v2.5: 1 year free premium license to show off your skills and achievements to the world
• SteelSeries Certified: Optimized for SteelSeries gaming gear
• Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes
• MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™
• Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
• GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
• USB Speed Up: For up to 30% performance improvement on USB devices.
• M.2 Genie: Make setting the RAID easy for only 6 steps.

Especificaciones:

• CPU
  • Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
• Chipset
  • Intel® Z170 Chipset
• Main Memory
  • 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
  • Quad channel memory architecture
  • Supports non-ECC, un-buffered memory
  • ECC UDIMM memory (non-ECC mode)*
  • Supports Intel® Extreme Memory Profile (XMP)
  • * For the latest information about memory, please visit http://www.msi.com
• Slots
  • 3 x PCIe 3.0 x16 slots*
  • 3 x PCIe 3.0 x1 slots*
  • * PCI_E6 slot and PCIe x1 slots share the same bandwidth. Please refer to page 30 for PCIe slots bandwidth table.
• Multi-GPU
  • Supports 3-Way AMD® CrossFire™ Technology
  • Supports 2-Way NVIDIA® SLI™ Technology
• USB
  • ASMedia® ASM1142 Chipset
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
  • 1 x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C port on the back panel
  • Intel® Z170 Chipset
  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
  • 1 x USB 3.1 Gen1 (SuperSpeed USB) Type-C port on the board
  • 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
• Storage
  • Intel® Z170 Chipset
  • 6 x SATA 6Gb/s ports*
  • Support RAID 0, RAID 1, RAID 5 and RAID 10
  • 2 x M.2 slots (Key M)*
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260/ 2280/ 22110 storage devices**
  • Supports RAID 0 and RAID 1 for M.2 PCIe Storage devices***
  • 1 x U.2 port*
  • Supports PCIe 3.0 x4 NVMe storage
  • Supports Intel® Smart Response Technology****
  • * M.2 SATAs and SATA1, 2, 5 and 6 share the same bandwidth. M2_2 slot and U.2 port share the same bandwidth. Please refer to page 36 for M.2/ U.2 & SATA combination table.
  • ** Only M2_1 slot supports type 22110 storage device.
  • *** M.2 PCIe RAID volume can be created with UEFI BIOS.
  • ****This function will be supported depend on the CPU.
• Audio
  • Realtek® ALC1150 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
• LAN
  • 1 x Intel® I219 Gigabit LAN controller
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x M.2 slots
  • 1 x U.2 port
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1 x USB 3.1 Gen1 Type-C port
  • 2 x 4-pin CPU fan connectors
  • 3 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x RGB LED connector
  • 1 x Clear CMOS jumper
  • 1 x Slow mode booting jumper

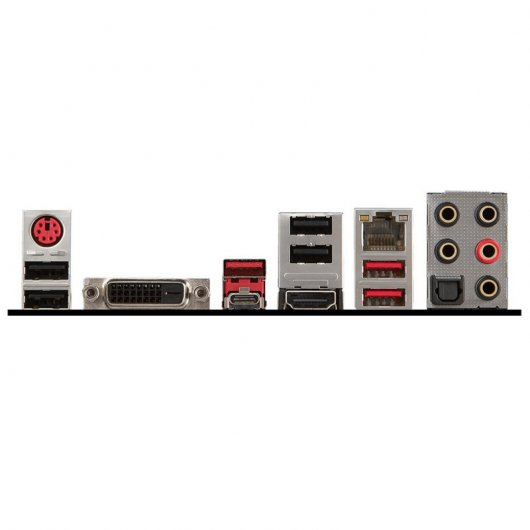

• Back Panel I/O Ports
  • 1 x PS/2 keyboard/ mouse combo port
  • 4 x USB 2.0 ports
  • 1 x DVI-D port
  • 1 x USB 3.1 Gen2 port
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x HDMI port
  • 1 x LAN (RJ45) port
  • 2 x USB 3.1 Gen1 ports
  • 1 x Optical S/PDIF OUT connector
• Dimension
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
• Mounting
  • 9 mounting holes
