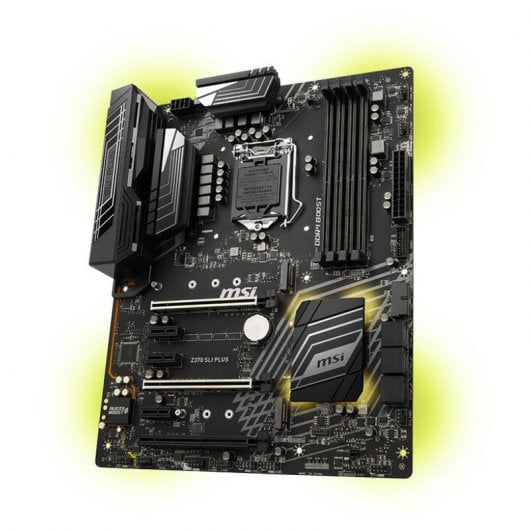

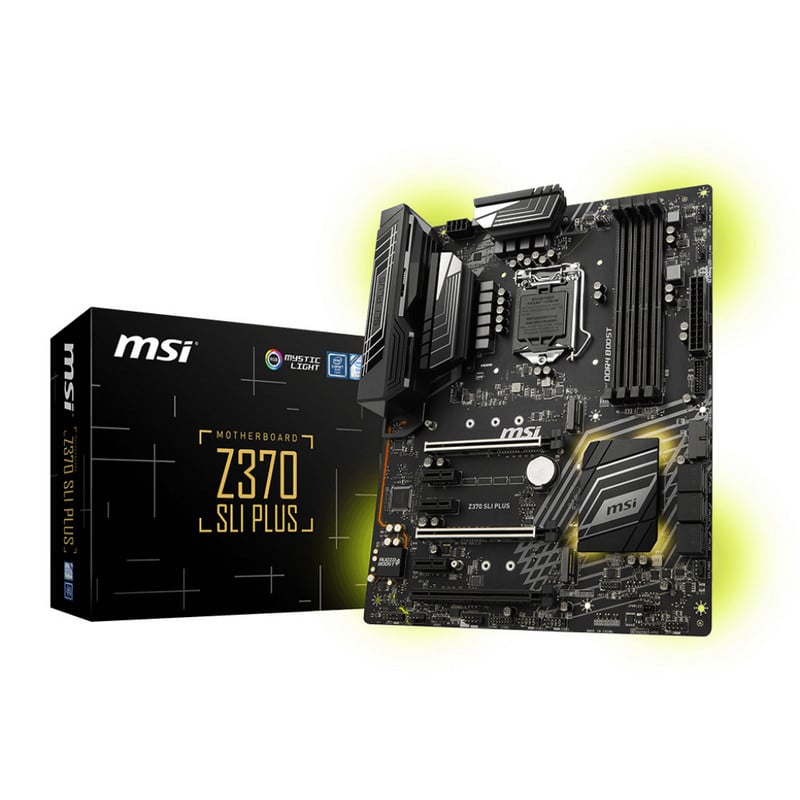

MSI Z370 SLI PLUS

Te presentamos la MSI Z370 SLI PLUS, una placa base con socket Intel 1151 y chipset Z370

Especificaciones:

•  CPU
  • Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
• Chipset
  • Intel® Z370 Chipset
• Main Memory
  • 4 x DDR4 memory slots, support up to 64GB
  • Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2667/ 2400/ 2133 MHz*
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)**
  • * Please refer to www.msi.com for more information on compatible memory.
• Slots
  • 3 x PCIe 3.0 x16 slots
  • 3 x PCIe 3.0 x1 slots
• Onboard Graphics
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• Multi-GPU
  • Supports 2-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology
• Storage
  • Intel® Z370 Chipset
  • 6 x SATA 6Gb/s ports*
  • 2 x M.2 slots (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
  • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot supports 2242/ 2260 /2280 storage devices
  • Supports Intel® Optane™ Memory Ready for all M.2 slots
  • * The SATA1, SATA5 and SATA6 ports will become unavailable with some conditions of M.2 devices. Please refer the manual for M.2 & SATA combination table .
  • ** The Turbo U.2 Host Card is not included, please purchase separately.
• RAID
  • Intel® Z370 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 storage devices*
  • * M.2 PCIe RAID volume can be created with M.2 GENIE.
• USB
  • ASMedia® ASM3142 Chipset
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • Intel® Z370 Chipset
  • 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• Audio
  • Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
• LAN
  • 1 x Intel® I219-V Gigabit LAN controlle
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water pump fan connector
  • 4 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x RGB LED connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Serial port connector
  • 1 x Clear CMOS jumper

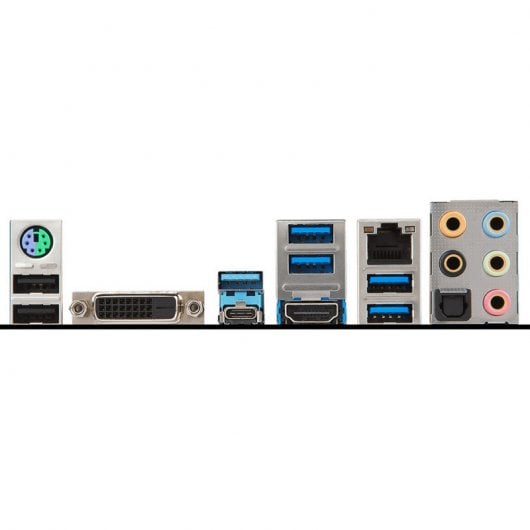

• Back Panel I/O Ports
  • 1 x PS/2 mouse & keyboard combo port
  • 2 x USB 2.0 ports
  • 1 x DVI-D port
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 4 x USB 3.1 Gen1 Type-A ports
  • 1 x HDMI™ port
  • 1 x LAN (RJ45) port
  • 1 x Optical S/PDIF out connector
  • 5 x audio jacks
• Dimension
  • 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
• Mounting
  • 9 mounting holes
