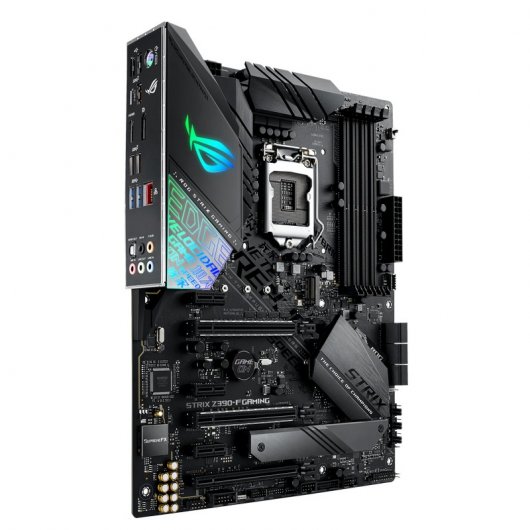

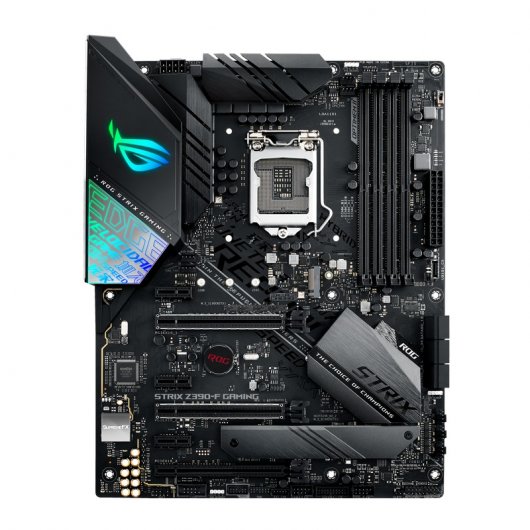

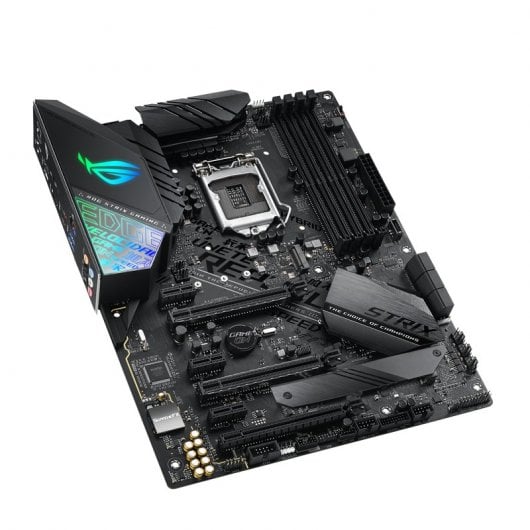

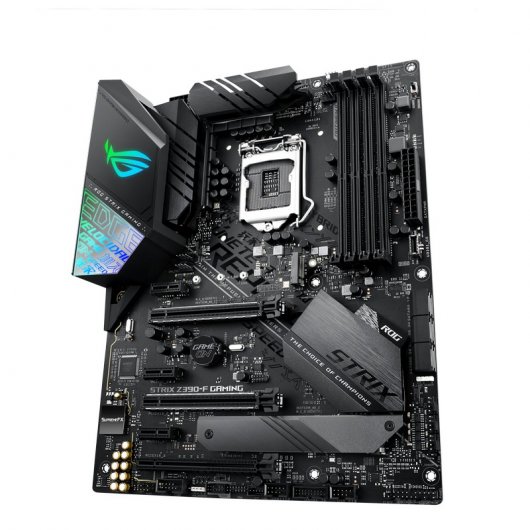

Placa Base Asus Rog Strix Z390-F Gaming

Sonido

Sumérgete en el sonido con la tecnología SupremeFX. Equipada con el códec S1220A, SupremeFX es una tecnología de sonido integrado diseñada para ofrecer una respuesta plana y un sonido neutro repleto de detalles.

Almacenamiento

La ROG Strix Z390-F Gaming tiene dos ranuras M.2. La primera soporta los modos SATA y PCIe 3.0 y la segunda soporta NVMe PCIe 3.0 x4. Juntas, te ofrecen la interfaz M.2 más versátil y rápida posible.

Alimentación y memoria

El control de alimentación digital y las etapas de potencia DR. MOS proporcionan el músculo necesario para controlar las nuevas CPU de Intel.r velocidades increíbles.

Hemos diseñado desde cero el trazado de la memoria para que puedas aprovechar todo el ancho de banda que ofrecen las nuevas CPU de Intel. La tecnología OptiMem II implementa pistas de la memoria en capas separadas del PCB y zonas apantalladas que reducen significativamente la diafonía. Por otro lado, con el propósito de ampliar el rango disponible para overclocking cuando se utilizan todas las ranuras de memoria, nuestro diseño T-Topology alinea la transmisión de las señales.

Te presentamos la placa base Rog Strix Z390-F Gaming con socket 1151 de octava generación y Chipset Z390 de Asus.

Especificaciones Rog Strix Z390-F Gaming:

• CPU
  •  Intel® Socket 1151 for Intel® Core? 9000 series, 8th Generation Core? i7/ i5/ i3, Pentium® and Celeron® processors
  •  Supports 14nm CPU
  •  Supports Intel® Turbo Boost Technology 2.0
  •  * Intel ® Turbo Boost Technology 2.0 depends on the CPU type
• Chipset Intel® Z390 Chipset
• Memoria
  • 4 x DIMM, max. 64GB DDR4
    4133+(OC)*/4000(OC)*/3866(OC)*/3733(OC)*/3600(OC)*/3466(OC)*/3400(OC)*/3333(OC)*/3300(OC)*/3200(OC)*/3000(OC)*/2800(OC)*/2666/2400/2133 MHz, non-ECC, un-buffered memory
  • Dual channel memory architecture
  • Soporta Intel® Extreme Memory Profile (XMP)
  • * El soporte de Hyper DIMM está sujeto a las características físicas de las CPU individuales. Consulte la memoria QVL (lista de proveedores calificados) para obtener más información.
• Ranuras de expansión
  • Intel® Socket 1151 for Intel® Core? 9000 series, 8th Generation Core? i7/ i5/ i3, Pentium® and Celeron® processors
  • 2 x PCIe 3.0 x16 slots (support x16, x8/x8)
  • Intel® Z390 Chipset
  • 1 x PCIe 3.0 x 16 slot(max. at x4 mode)**
  • 3 x PCIe 3.0 x1 slots
  • **The PCIe x 16_3 slot shares bandwidth with SATA6G_56 ports. PCIe x 16_3 slot is set at x2 mode by default.
• Procesador gráfico
  • Integrated Graphics Processor - Intel® UHD Graphics support
  • Multi-VGA output support : HDMI/DisplayPort
  • 'Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60Hz
  • Supports HDMI 1.4b with max. resolution 4096 x 2304@24Hz, 24bpp or 3840 x 2160@30Hz, 24bpp
• Soporte Multi GPU
  • NVIDIA® 2-Way/Quad-GPU SLI? Technology
  • AMD® 3-Way/Quad-GPU CrossFireX? Technology
• Almacenamiento
  • Intel® Z390 Chipset with RAID 0, 1, 5, 10, and Intel Rapid Storage Technology support
  • 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (PCIe 3.0 x4 and SATA modes)*
  • 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
  • 6 x SATA 6Gb/s ports
  • Intel® OptaneTM Memory Ready
  • * When the M.2_1 Socket 3 is operating in PCIe 3.0 x4 mode, SATA port 1 and 2 will be disabled. When it operates in SATA mode, SATA port 2 will be disable.
• LAN
  • Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
  • Anti-surge LANGuard
  • ROG GameFirst V technology
• Audio
  • ROG SupremeFX S1220A 8-Channel High Definition Audio CODEC
  • Supports up to 32-Bit/192kHz playback*
  • Impedance sense for front and rear headphone outputs
  • High quality 120dB SNR stereo playback output and 113dB SNR recording input
  •  SupremeFX Shielding Technology
  •  Dual OP Amplifiers
  •  Jack-detection, Multi-streaming, and Front Panel Jack-retasking
  •  Optical S/PDIF out port at back panel
  • Audio Features:
  •  Sonic Studio III + Sonic Studio Link
  •  Sonic Radar III
  • *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB
  • Intel® Z390 Chipset
  • 1 x USB 3.1 Gen 1 front panel connector
  • 4 x USB 3.1 Gen 2 ports (3 Type-A [red] and 1 Type-C [black] at back panel)
  • 4 x USB 3.1 Gen 1 ports (2 ports at back panel [blue], 2 ports at mid-board)
  • 6 x USB 2.0 ports ( 2 ports at back panel [black], 4 ports at mid-board)
• Características exclusivas de ROG
  • ROG RAMCache III
  • ROG GameFirst V
  • ROG CPU-Z
  • ROG Overwolf
  • Aura
  • Aura Lighting Control
  • Aura RGB Strip Headers
  • Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  • Aura Addressable Strip Header
  • ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5
  • 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
  • Gamer's Guardian
  • Procool
  • SafeSlot
  • DIGI+ VRM
  • DRAM Overcurrent Protection
  • ESD Guards on VGA, LAN, Audio and USB3.1/2.0 ports
  • Highly Durable Components
  • ASUS Exclusive Features
  • Armoury crate
  • Pre-mounted I/O Shield
  • ASUS NODE: hardware control interface
  • OptiMem II
  • 3D Printing Friendly design
  • AI Suite 3
  • MemOK! II
  • AI Charger
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS Q-Design
  • Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • Q-Slot
  • Q-DIMM
• Puertos de E / S posteriores
  • 1 x PS/2 keyboard/mouse combo port
  • 1 x HDMI port
  • 1 x DP port
  • 2 x USB2.0 ports
  • 2 x USB 3.1 Gen1 ports [blue]
  • 4 x USB3.1 Gen2 ports (3 x Type-A [red] and 1 x Type-C ports [black])
  • 1 x Anti-surge LAN (RJ45) port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out
• Puertos de E / S internos
  • 1 x USB 3.1 Gen 1 front panel connector
  • 1 x USB 3.1 Gen 1 header supports additional 2 USB 3.1 Gen 1 ports
  • 2 x USB 2.0 header supports additional 4 USB 2.0 ports
  • 6 x SATA 6Gb/s ports
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & PCIe 3.0 x 4 modes)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (PCIe 3.0 x 4 mode)
  • 1 x 4-Pin CPU FAN connector
  • 1 x 4-Pin CPU_OPT fan connector
  • 2 x 4-Pin Chassis fan connectors
  • 1 x M.2 FAN connector
  • 1 x 4-Pin AIO_PUMP connector
  • 1 x 4-Pin W_PUMP+ connector
  • 1 x EXT_FAN header
  • 1 x Thermal sensor connector
  • 1 x 24-pin EATX power connector
  • 1 x 8-pin EATX 12V power connector
  • 2 x Aura RGB headers
  • 1 x Addressable header
  • 1 x MemOK! II switch
  • 1 x Node connector
  • 1 x Clear CMOS jumper (2-pin)
  • 1 x COM port
  • 1 x TPM header
  • 1 x CPU OV header
  • 1 x Front panel audio connector (AAFP)
  • 1 x System panel connector
• Accesorios
  • Support DVD
  • User guide
  • 2 x 2-in-1 SATA 6Gb/s cables
  • 1 x SLI? HB Bridge  (2-WAY-M)
  • 1 x Extension Cable for RGB Strips (80cm)
  • 1 x Extension Cable for Addressable LED Strips (80cm)
  • 1 x Fan bracket
  • 1 x M.2 Screw Package
  • 1 x ROG Strix door hanger
  • 1 x ROG Strix Thank you card
  • 1 x ROG Strix series sticker
• Bios
  • 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
• Sistema operativo soportado
  • Windows® 10 64-bit
• Factor de forma
  • ATX Form Factor, 12" x 9.6" (30.5cm x 24.4 cm)
