MSI X299 Gaming Pro Carbon AC

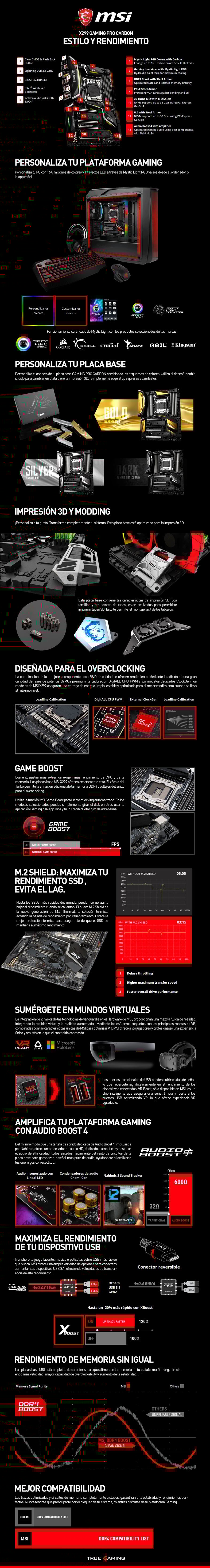

Te presentamos la MSI X299 Gaming Pro Carbon AC, una placa base con socket Intel 2066 y chipset X299

Características:

Especificaciones:

• CPU
  • Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket
  • * This function will be supported depend on the CPU.
• Chipset
  • Intel® X299 Chipset
• Main Memory
  • 8 x DDR4 memory slots, support up to 128GB*
  • X-series processor support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz*
  • Quad channel memory architecture with the CPU that supports up to 4-channels DDR4**
  • Dual channel memory architecture with the CPU that supports up to 2-channels DDR4**
  • Supports Intel® Extreme Memory Profile (XMP)
  • * For the latest information about memory, please visit http://www.msi.com
  • ** Please refer the DIMM Slots section for more details.
• Slots
  • 4 x PCIe 3.0 x16 slots
  • Support x16/ x4/ x16/ x8 mode with the 44-lane CPU.
  • Support x16/ x4/ x8/ x0,x8/ x4/ x8/ x8 modes with the 28-lane CPU.
  • Support x8/ x0/ x8/ x0, x8/ x4/ x4/ x0 modes with the 16-lane CPU.
  • 2 x PCIe 3.0 x1 slots
• Multi-GPU
  • Supports 3-Way AMD® CrossFire™ Technology
  • Supports 3-Way NVIDIA® SLI™ Technology
• Storage
  • Intel® X299 Chipset
  • 8 x SATA 6Gb/s ports*
  • 2 x M.2 slots (Key M)*
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • M2_1 slot supports 2242/ 2260 /2280 storage devices
  • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
  • Intel® Optane™ Memory Ready**
  • 1 x U.2 port *
  • Supports PCIe 3.0 x4 NVMe storage
  • Supports Intel® Smart Response Technology***
  • * M.2 slots, U.2 port and SATA ports share the same bandwidth.
  • ** Please refer to manual for Intel® Optane™ Memory Configuration.
  • ***The functions will be supported depend on the CPU.
• RAID
  • Intel® X299 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 storage devices*
  • * M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to manual for M.2 PCIe SSD RAID.
• USB
  • ASMedia® ASM3142 Chipset
  • 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • 2x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C ports(1 port on the back panel, 1 port available through the internal USB connector)
  • ASMedia® ASM1074 Chipset
  • 3x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on theback panel
  • Intel® X299 Chipsett
  • 5x USB 3.1 Gen1 (SuperSpeed USB) ports (1 port on the back panel, 4 ports available through the internal USB connectors)
  • 7x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors)
• Wirsless LAN & Bluetooth®
  • Intel® Dual Band Wireless-AC 8265 module (optional)
  • The Wireless module is pre-install in the M2_3 (Key-E) slot.
  • Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
  • Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
• Audio
  • Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
• LAN
  • 1 x Intel® I219-V Gigabit LAN controller
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 8 x SATA 6Gb/s connectors
  • 3 x M.2 slots (Key M x2, Key E x1)
  • 1 x U.2 port
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin Water Pump connector
  • 4 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Slow mode booting jumper
  • 1 x GAME BOOST knob
  • 1 x Power button
  • 1 x Reset button
  • 1 x Multi-BIOS switch
  • 1 x RGB LED connector
  • 1 x Virtual RAID on CPU connector (VRAID1)
• Back Panel I/O Ports
  • 1 x Clear CMOS button
  • 1 x BIOS FLASHBACK+ button
  • 1 x PS/2 keyboard/ mouse combo port
  • 3 x USB 2.0 Type-A ports
  • 2 x Wi-Fi Antenna connectors (optional)
  • 4 x USB 3.1 Gen1 Type-A ports
  • 1 x LAN (RJ45) port
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x Optical S/PDIF OUT connector
  • 5 x OFC audio jacks
• Dimension
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
• Mounting
  • 9 mounting holes
