MSI Z270 Gaming M6 AC

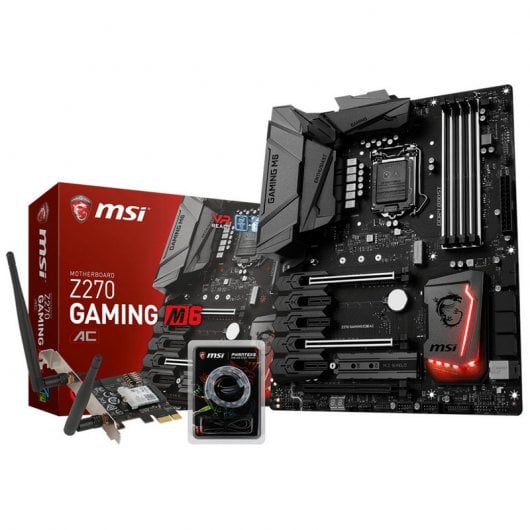

Te presentamos la MSI Z270 Gaming M6 AC, una placa base con socket Intel 1151 y chipset Z270.

Especificaciones:

• CPU
  • Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
  • * This function will be supported depend on the CPU.
• Chipset
  • Intel® Z270 Chipset
• Main Memory
  • 4 x DDR4 memory slots, support up to 64GB
  • 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
  • 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  • * Please refer to www.msi.com for more information on compatible memory.
• Slots
  • 3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
  • 3 x PCIe 3.0 x1 slots
• Onboard Graphics
  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
  • 1 x DisplayPort, supports a maximum resolution of 4096X2304@24Hz, 3840X2160@60Hz,1920X1200@60Hz
• Multi-GPU
  • Supports 3-Way AMD® CrossFire™ Technology
  • Supports 2-Way NVIDIA® SLI™ Technology
• Storage
  • Intel® Z270 Chipset
  • 6 x SATA 6Gb/s ports*
  • 2 x M.2 slots (Key M)
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s
  • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot supports 2242/ 2260 /2280 storage devices
  • Intel® Optane™ Memory Ready for all M.2 slots
  • 1 x U.2 port **
  • Supports up to PCIe 3.0 x4 NVMe U.2 SSD
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • * The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will be unavailable when M.2 PCIe SSD module has been installed in the M.2_2 slot. Please refer to page 35 for M.2 & SATA combination table.
  • ** The U.2 port will be unavailable when an PCIe expansion card has been installed in PCI_E6 slot.
  • *** Intel® Optane® Technology is only supported when using 7th Gen processors. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
• RAID
  • Intel® Z270 Chipset
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 storage devices*
  • * M.2 PCIe RAID volume can be created with M.2 GENIE. Please refer to page 51 for details about M.2 GENIE.
• USB
  • ASMedia® ASM2142 Chipset
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
  • Intel® Z270 Chipset
  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
  • 7 x USB 2.0 (High-speed USB) ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• Audio
  • Realtek® ALC1220 Codec
  • 7.1-Channel High Definition Audio
• LAN
  • 1 x KillerTM E2500 Gigabit LAN controller
• WiFi & Bluetooth
  • Intel® Dual Band Wireless-AC 8265
  • Dual Band 2x2 802.11ac
  • 80MHz Channels
  • 867 Mbps Max Speed
  • MU-MIMO Rx
  • Support for ACS enabling concurrent multi-channel usage
  • Bluetooth 4.2 (BR/EDR, BLE)
  • Support Windows 7, 8.1/ 10
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x U.2 port
  • 2 x M.2 slots
  • 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin water pump fan connector
  • 4 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x Serial port connector
  • 1 x RGB LED connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS FLASHBACK+ button
  • 1 x 2-Digit Debug Code LED

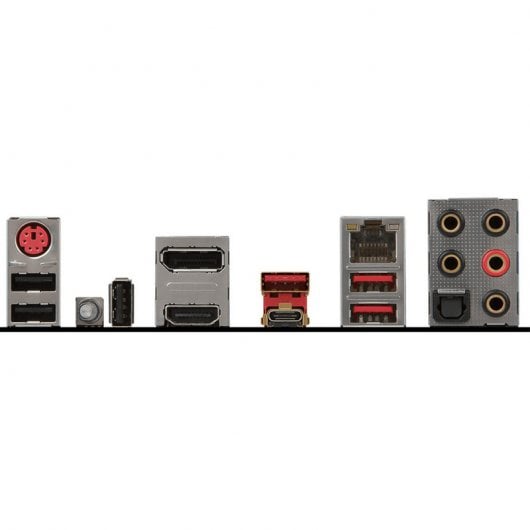

• Back Panel I/O Ports
  • 1 x PS/2 mouse & keyboard combo port
  • 3 x USB 2.0 ports
  • *1 x BIOS FLASHBACK+ port
  • 1 x Clear CMOS button
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x LAN (RJ45) port
  • 2 x USB 3.1 Gen1 Type-A ports
  • 1 x Optical S/PDIF OUT connector
  • 5 x OFC audio jacks
• Dimension
  • 12.0 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor
• Mounting
  • 9 mounting holes
