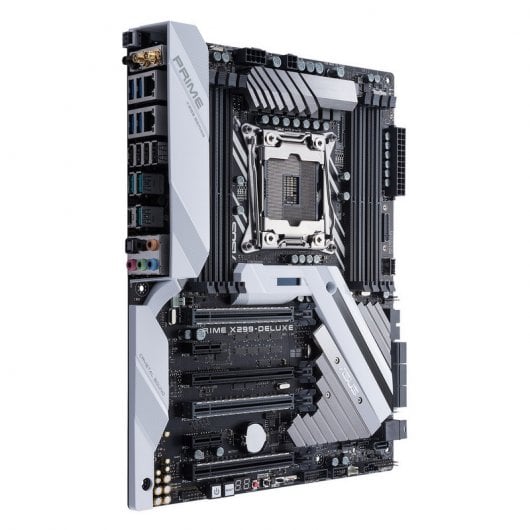

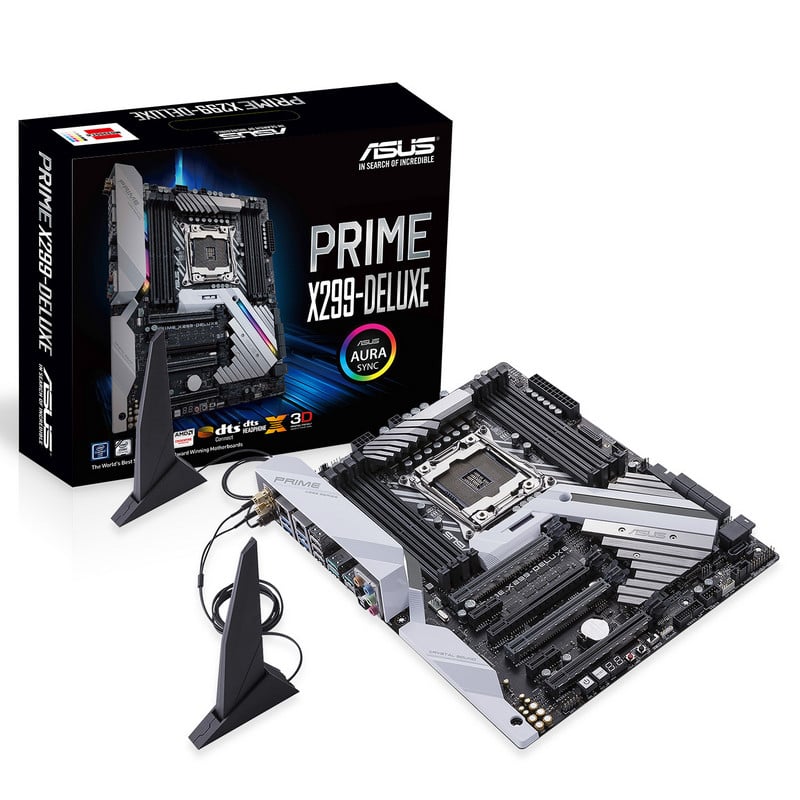

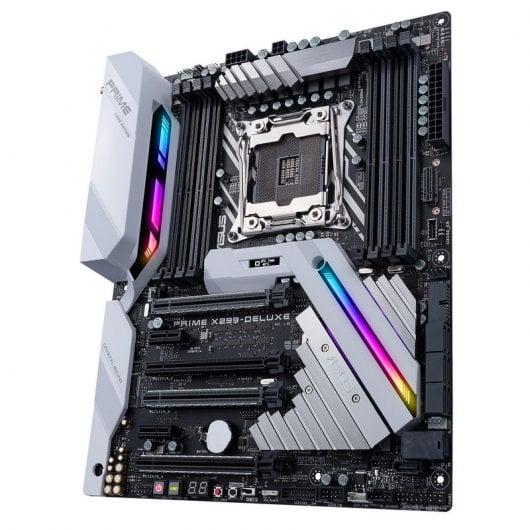

Asus Prime X299-Deluxe
4/5
5 opinionesPreguntas(5)
P/N: 90MB0TY0-M0EAY0 | Cod. Artículo: 131971
Limitado a una unidad por pedido
444,90€
Disponibilidad del producto Sin fecha exacta de entrada
Avísame cuando esté disponible¡Quiero suscribirme al newsletter y recibir las mejores ofertas y novedades! 🔥
He leído y acepto las Condiciones generales y la Política de privacidad de PcComponentes.
444,90€
Sobre el producto
Te presentamos la Asus Prime X299 Deluxe, una placa base con socket Intel 2066 y chipset X299.
Especificaciones:
| CPU | Intel® Core™ X-Series Processors Family on LGA 2066 Socket* |
| Supports 14nm CPU | |
| Supports Intel® Turbo Boost Max Technology 3.0** | |
| *Refer to www.asus.com for Intel® CPU support list. | |
| ** The support of these features depends on the CPU types. | |
| Chipset | Intel® X299 Chipset |
| Memory | Intel® Core™ X-Series Processors (6-core above) |
| - 8 x DIMM, max. 128GB DDR4 3600(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666 MHz, non-ECC, un-buffered memory | |
| - Quad channel memory architecture | |
| Intel® Core™ X-series Processors (4-core) | |
| 4 x DIMM, max. 64GB, DDR4 3600(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666 MHz, non-ECC, un-buffered memory | |
| - Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details. | |
| Expansion Slots | 44-Lane CPU(12-core & 10-core CPU)- |
| 3 x PCI Express 3.0/2.0 x16 slots (single@x16, dual@x16/x16, triple@x16/x16/x8 mode) | |
| 1 x PCI Express 3.0/2.0 x16 slot (PCIEX16_2 max. at x4 mode, compatible with PCIe x1 and x4 devices)** | |
| 2 x PCI Express 3.0/2.0 x1 slots (compatible with PCIe x1 devices)* | |
| 28-Lane CPU(6-core & 8-core CPU)- | |
| 2 x PCI Express 3.0/2.0 x16 slots (single@x16, dual@x16/x8 mode) | |
| 2 x PCI Express 3.0/2.0 x16 slots(PCIEX16_2 max. at x4 mode, PCIEX16_4 max. at x2 mode)** | |
| 2 x PCI Express 3.0/2.0 x1 slots (compatible with PCIe x1 devices)* | |
| 16-Lane CPU(4-core CPU)- | |
| 2 x PCI Express 3.0/2.0 x16 slots (single@x16, dual@x8/x8 mode) | |
| 2 x PCI Express 3.0/2.0 x16 slots (PCIEX16_2 max. at x1 mode, PCIEX16_4 max. at x2 mode)** | |
| 2 x PCI Express 3.0/2.0 x1 slots (compatible with PCIe x1 devices)* | |
| * PCIEX1_1 shares bandwidth with Wi-Fi 802.11ad. It is disabled by default. PCIEX1_2 shares bandwidth with SATA6G_7. It is disabled by default. | |
| **PCIEX16_4 shares bandwidth with SATA6G_5 & STATA6G_6 when using 28-lane & 16-lane CPUs. PCIEX16_2 shares bandwidth with USB 3.1 Gen 2 front panel connector when using 16-lane CPUs. PCIEX16_2 max. at x4 mode when using 44 & 28 lane CPUs, only compatible with PCIe x1 & x4 devices | |
| Multi-GPU support | Supports NVIDIA® 2-Way/Quad-GPU SLI™ Technology (with 2 PCIe x16 graphics cards)/ 3-Way SLI™ Technology* |
| Supports AMD® 3-Way/Quad-GPU CrossFireX™ Technology | |
| * This support depends on the CPU types and VGA cards | |
| Storage | Intel® X299 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support |
| - 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x4 mode) | |
| - 1 x M.2_2 Socket 3 with vertical M Key, type 2242/2260/2280/22110 (Support PCIe storage device only)* | |
| - 1 x U.2 ports (support PCIe 3.0 x4 NVM Express storage)* | |
| - 7 x SATA 6.0 Gb/s ports** | |
| - Ready for Intel® Optane™ Memory | |
| - Supports Intel® Smart Response Technology | |
| * The M.2_2 socket shares bandwidth with U.2 port. Adjust BIOS settings to use U.2 device. | |
| ** The SATA6G_7 shares bandwidth with PCIEX1_2. SATA6G_5 & SATA6G_6 shares bandwidth with PCIEX16_4 when using 28-lane & 16-lane CPU. | |
| LAN | Gigabit Intel LAN connection- 802.3az Energy Efficient Ethernet (EEE) appliance |
| Intel® I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) | |
| Intel® I211-AT Gigabit LAN controller | |
| ASUS LANGuard | |
| ASUS Turbo LAN Utility | |
| Wireless Data Network | Wi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz, Wi-Fi 802.11ad(WiGig) supports frequency band 60GHz* |
| Up to 4600Mbps transfer speed | |
| * Wi-Fi 802.11ad shares bandwidth with PCIEX1_1. If a device is detected in PCIEX1_1, PCIEX1_1 will be enabled and Wi-Fi 802.11ad will be disabled(Wi-Fi 802.11a/b/g/n/ac is still enabled). Wi-Fi 802.11ad(WiGig) is only available in certified countries. | |
| Bluetooth | Bluetooth V4.2, V4.1, V4.0 LE, V3.0+HS |
| OLED | OLED panel for system information ASUS LiveDash Utility |
| Audio | Realtek® S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3 |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Separate layer for left and right track, ensuring both sound deliver equal quality | |
| - Impedance sense for front and rear headphone outputs | |
| - EMI protection cover to prevent electrical noise to affect the amplifier quality | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Unique de-pop circuit to reduce start-up popping noise to audio outputs | |
| - Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity | |
| - High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR input (Line-in) support | |
| - Supports up to 32-Bit/192kHz playback* | |
| - DTS® Headphone:X™ | |
| - DTS® Connect | |
| - Supports jack-detection, multi-streaming, front panel jack-retasking (MIC) | |
| - Optical S/PDIF out port at back I/O | |
| * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows® 10. | |
| USB | Intel® X299 Chipset |
| - 5 x USB 3.1 Gen 1 ports (1 ports at back panel, 4 ports at mid-board) | |
| - 6 x USB 2.0 ports (4 ports at back panel, 2 ports at mid-board) | |
| ASMedia® USB 3.1 Gen 2 controllers-Support USB 3.1 Gen 2 Hub Mutiple-IN | |
| - 1 x USB 3.1 Gen 2 front panel connector* | |
| - 3 x USB 3.1 Gen 2 ports @back panel (teal blue, Type A) | |
| - 1 x USB 3.1 Gen 2 port @back panel (USB Type C™) | |
| ASMedia® USB 3.1 Gen 1 controllers | |
| - 3 x USB 3.1 Gen 1 ports at back panel | |
| * The USB 3.1 Gen 2 front panel connector shares bandwidth with PCIEX16_2 slot when using 16-lane CPU. | |
| ASUS Exclusive Features | <Performance> |
| OC Design: ASUS PRO Clock Technology | |
| - Full BCLK range for extreme overclocking performance. | |
| 5-Way Optimization | |
| - Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages. | |
| DIGI+ Power Control | |
| -CPU Power: Digital 8-phase power design | |
| -DRAM Power: Digital 2-phase power design | |
| TPU | |
| - Auto Tuning, TPU | |
| EPU | |
| Fan Xpert 4 with FAN Extension Card support | |
| Turbo Core App | |
| UEFI BIOS | |
| CrashFree BIOS 3 | |
| EZ Flash 3 | |
| EZ Tuning Wizard | |
| <Connectivity> | |
| Intel® VROC Ready | |
| Front USB 3.1 Gen 2 Support | |
| USB 3.1 Gen 2 Hub Multiple-IN Support | |
| Thunderbolt 3 Support- blistering-fast 40Gb/s data transfers upgrades with ThunderboltEX 3 Card. | |
| <Gaming> | |
| AURA SYNC with Addressable header control | |
| 3D Printing Friendly design | |
| Turbo LAN | |
| <EZ Management> | |
| File Transfer | |
| - Cloud GO! | |
| - File Transfer | |
| PC Cleaner | |
| <EZ DIY> | |
| OLED with ASUS LiveDash Utility | |
| Q-Design | |
| - ASUS Q-Code | |
| - ASUS Q-Connector | |
| - ASUS Q-DIMM | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - ASUS Q-Shield | |
| - ASUS Q-Slot | |
| ASUS Special Features | Special Features: |
| ASUS SafeSlot - Protect your graphics card Investment | |
| ASUS 5X Protection III | |
| - ASUS SafeSlot Core - Fortified PCIe with solid soldering | |
| - ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| - ASUS Overvoltage Protection - World-class circuit-protecting power design | |
| - ASUS DIGI+ VRM - 8+2 Phase digital power design | |
| - ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection | |
| - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| - ASUS ESD Guards - Enhanced ESD protection | |
| - AI Suite 3 | |
| - Ai Charger | |
| - MemOK! | |
| ASUS Quiet Thermal Solution | Quiet Thermal Design: |
| - ASUS Fan Xpert 4 | |
| - ASUS Fanless M.2 heatsink Design | |

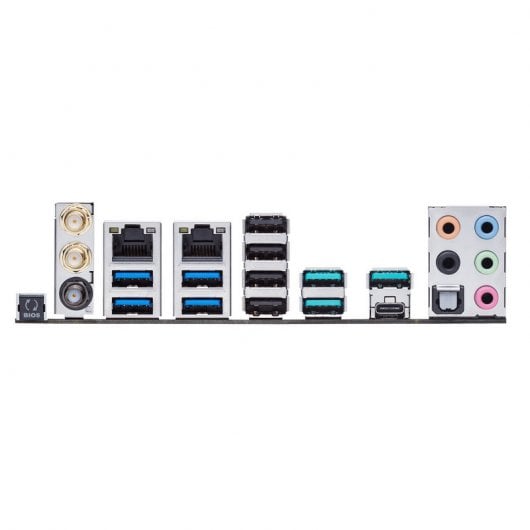

| Back Panel I/O Ports | 1 x BIOS Flashback button |
| 1 x ASUS Wi-Fi 802.11ad & 802.11a/b/g/n/ac module | |
| 1 x Optical S/PDIF out | |
| 2 x Intel LAN (RJ45) ports | |
| 3 x USB 3.1 Gen 2 ports (teal blue, Type-A) | |
| 1 x USB 3.1 Gen 2 port (USB Type-C™) | |
| 4 x USB 3.0 Gen 1 ports | |
| 4 x USB 2.0 ports | |
| 8-channel Audio I/O ports | |
| Internal I/O Connectors | 1 x USB 3.1 Gen 2 front panel connector |
| 2 x USB 3.0 Gen 1 connectors support additional 4 USB ports (19-pin) | |
| 1 x USB 2.0 connectors support additional 2 USB ports | |
| 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x 4 mode) | |
| 1 x M.2_2 Socket 3 with vertical M Key, type 2242/2260/2280/22110 (Support PCIe storage device only) | |
| 7 x SATA 6.0Gb/s connectors | |
| 1 x 4-Pin W_PUMP+ connector | |
| 1 x 4-Pin AIO_PUMP fan connector | |
| 1 x 4-Pin CPU Fan connector | |
| 1 x 4-Pin CPU_OPT fan connector | |
| 2 x 4-Pin Chassis Fan connectors | |
| 1 x 4-Pin M.2 Fan connector | |
| 1 x 5-pin EXT_FAN(Extension Fan) connector | |
| 1 x 2-pin Thermal sensor header | |
| 1 x 24-pin EATX Power connector | |
| 1 x 8-pin EATX 12V Power connector | |
| 1 x 4-pin EATX 12V Power connector | |
| 1 x RGB header | |
| 1 x Addressable header | |
| 1 x Front panel audio connector (AAFP) | |
| 1 x VROC_HW_KEY | |
| 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX 3 support | |
| 1 x System Panel connector (Q-Connector) | |
| 1 x 3-pin CPU_OV header | |
| 1 x Q_Code | |
| 1 x MemOK! button | |
| 1 x Clear CMOS button | |
| 1 x EZ XMP switch | |
| 1 x Power-on button | |
| 1 x Reset button | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Accessories | Fan Extension Card: |
| 1 x Fan Extension Card (3 x 4-pin fan out) | |
| 1 x Fan Extension Card cable | |
| 1 x Fan Extension Card screw package | |
| 3 x Thermistor cables | |
| ThunderboltEX 3 Card: | |
| 1 x ThunderboltEX 3 Card | |
| 1 x miniDP to DP cable | |
| 1 x ThunderboltEX 3 GPIO cable | |
| 1 x SLI HB BRIDGE(2-WAY-M) | |
| 1 x 3 WAY SLI-M BRIDGE(1-4-6 slot) | |
| 1 x ASUS Wi-Fi 802.11ad(WiGig) moving antenna* | |
| 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) | |
| 1 x M.2 Screw Package | |
| 1 x M.2 vertical bracket | |
| 1 x Q-connector | |
| 1 x Addressable LED extension cable | |
| 1 x ASUS Q-Shield | |
| 1 x Supporting DVD | |
| 1 x User´s manual | |
| 6 x Serial ATA 6.0Gb/s cables | |
| * * Due to different countries´ regulations, 802.11ad(WiGig) moving antenna is only bundled in certified countries. | |
| Support DVD | Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System Support | Windows® 10 64-bit |
| Form Factor | ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm) |
