Asus Prime Z270-K
4,3/5
28 opinionesPreguntas(12)
P/N: 90MB0S30-M0EAY0 | Cod. Artículo: 111898
Limitado a una unidad por pedido
117,90€
Disponibilidad del producto Sin fecha exacta de entrada
Avísame cuando esté disponible¡Quiero suscribirme al newsletter y recibir las mejores ofertas y novedades! 🔥
He leído y acepto las Condiciones generales y la Política de privacidad de PcComponentes.
117,90€
Sobre el producto

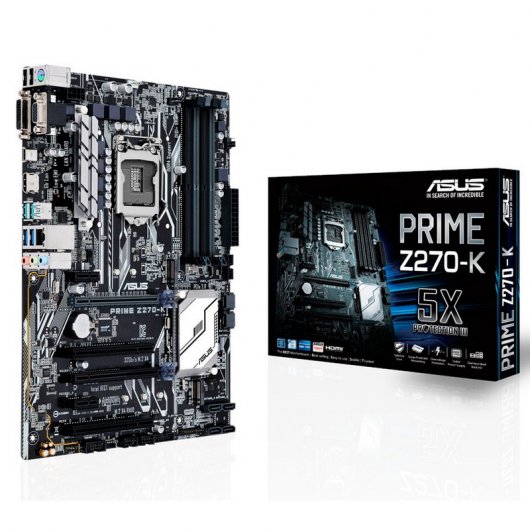

Te presentamos la Asus Z270-K una placa base con socket Intel 1151 y chipset Z270
Especificaciones:
| CPU | LGA1151 socket for 7th/6th Generation Intel® Core™ i7/ i5/ i3/Pentium®/Celeron® Processors |
| Supports 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0* | |
| * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
| ** Refer to www.asus.com for Intel® CPU support list. | |
| Chipset | Intel® Z270 Chipset |
| Memory | 4 x DIMM, max. 64GB DDR4 3866(O.C.)*/3733(O.C.)*/3600(O.C.)*/3466(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666(O.C.)*/2400(O.C.)*/2133 MHz Non-ECC, Un-buffered Memory |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| *The maximum memory frequency supported varies by processor | |
| **Refer to www.asus.com for the Memory QVL (Qualified Vendors List). | |
| Expansion Slots | 1 x PCI Express 3.0/2.0 x16 slot (at x16 mode) |
| 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices) | |
| 2 x PCI Express 3.0/2.0 x1 slots | |
| 2 x PCI slots | |
| Multi-GPU Support | Supports AMD® CrossFireX™ Technology |
| VGA | Integrated Graphics Processor- Intel® HD Graphics support |
| Multi-VGA output support: HDMI/DVI-D/RGB port | |
| - Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz | |
| - Supports DVI-D with max. resolution of 1920 x 1200 @60Hz | |
| - Supports RGB with max. resolution 1920 x 1200@60Hz | |
| Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™ | |
| Supports up to 3 displays simultaneously | |
| Maximum shared memory of 1024 MB (for iGPU exclusively) | |
| Storage | Intel® Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support |
| - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)* | |
| - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)** | |
| - 6 x SATA 6.0 Gb/s ports (gray) | |
| - Intel® Optane™ Memory Ready*** | |
| - Supports Intel® Smart Response Technology**** | |
| * When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used. | |
| ** When a device is installed on the M.2_2 socket, SATA_5/6 ports cannot be used. | |
| *** Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
| **** These functions will work depending on the CPU installed. | |
| LAN | Intel® I219-V Gigabit LAN |
| - Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) | |
| Audio | Realtek® ALC887 8-channel* high definition audio CODEC |
| - LED-illuminated design?Brighten up your build with the gorgeous illuminated audio trace path. | |
| - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference | |
| - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals | |
| - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity. | |
| - Supports jack-detection and front panel jack-retasking | |
| * Choose the chassis with HD audio module in front panel to support 8-channel audio output. | |
| USB | ASMedia USB 3.1 controllers |
| - 2 x 10Gb/s USB 3.1/3.0/2.0 port at rear panel (teal blue, Type A) | |
| Intel® Z270 Chipset | |
| - 1 x 5Gb/s USB Type C port (@back panel), supports 3A power output | |
| - 6 x USB 3.0/2.0 ports (4 ports @mid-board; 2 ports @back panel, blue, Type A) | |
| - 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel) | |
| ASUS Special Features | ASUS 5X PROTECTION III |
| - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | |
| - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| - ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| - ASUS DIGI+ VRM: 7 Phase digital power design | |
| Superb Performance | |
| M.2 onboard | |
| - The latest transfer technologies with up to 32Gb/s data transfer speeds | |
| ASUS Fan Xpert 4 Core | |
| - Advanced fan and liquid controls for ultimate cooling and quietness | |
| ASUS EPU | |
| - EPU | |
| UEFI BIOS | |
| - Most advanced options with fast response time | |
| Gaming Scenario | |
| Audio Features | |
| - Audio that roars on the battlefield | |
| ASUS Exclusive Features | |
| - ASUS Ai Charger | |
| - ASUS AI Suite 3 | |
| EZ DIY | |
| UEFI BIOS EZ Mode | |
| - featuring friendly graphics user interface | |
| - ASUS O.C. Tuner | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| Q-Design | |
| - ASUS Q-Shield | |
| - ASUS Q-DIMM | |
| - ASUS Q-Slot | |
| ASUS Quiet Thermal Solution | Quiet Thermal Design: |
| - ASUS ASUS Fan Xpert 4 Core | |
| - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink solution | |
| ASUS Exclusive Overclocking Features | Precision Tweaker 2: |
| - vCore: Adjustable CPU Core voltage at 0.005V increment | |
| - iGPU: Adjustable CPU Graphics voltage at 0.005V increment | |
| - vCCIO: Adjustable Analog and Digital I/O voltage at 0.005V increment | |
| - vCCSA: Adjustable CPU System Agent voltage at 0.1V increment | |
| - vDRAM Bus: 160-step Memory voltage control | |
| - vPCH: 3-step Chipset voltage control | |
| SFS (Stepless Frequency Selection) | |
| - BCLK/PCIE frequency tuning from 98MHz up to 538MHz at 0.1MHz increment | |
| Overclocking Protection: | |
| - ASUS C.P.R.(CPU Parameter Recall) | |

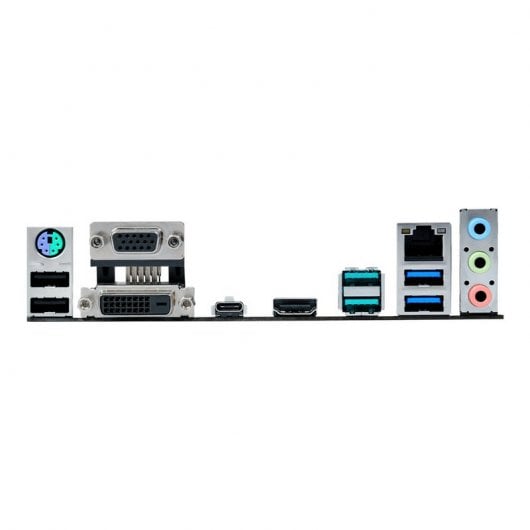

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo port |
| 1 x HDMI port | |
| 1 x DVI-D port | |
| 1 x RGB port | |
| 1 x LAN (RJ45) ports | |
| 2 x 10Gb/s USB 3.1/3.0/2.0 ports (teal blue, Type A) | |
| 1 x 5Gb/s USB Type C port | |
| 2 x USB 3.0/2.0 ports ( blue, Type A) | |
| 2 x USB 2.0/1.1 ports | |
| 3-Jack 8-Channel Audio I/O ports | |
| Internal I/O Connectors | 2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin) |
| 2 x USB 2.0/1/1 connectors support additional 4 USB ports | |
| 6 x SATA 6.0 Gb/s connectors (gray) | |
| 2 x M.2 Socket 3 (for M Key) | |
| 1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control* | |
| 2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control* | |
| 1 x PUMP FAN Header | |
| 1 x Front panel audio connector (AAFP) | |
| 1 x System panel connector | |
| 1 x S/PDIF out header | |
| 1 x 24-pin EATX Power connector | |
| 1 x 8-pin EATX 12V Power connector | |
| 1 x COM header | |
| 1 x Clear CMOS jumper | |
| * By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically. | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Accessories | 2 x Serial ATA 6.0Gb/s cables |
| 1 x ASUS Q-Shield | |
| 2 x M.2 screws | |
| 1 x Support DVD | |
| 1 x User´s manual | |
| Support DVD | Drivers |
| ASUS Utilities | |
| ASUS EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System Support | Windows® 10 (64-bit) |
| Windows® 8.1 (64-bit)* | |
| Windows® 7 (64-bit/32-bit)* | |
| *Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors | |
| Form Factor | ATX form factor: 12.0 in. x 8.9 in. (30.5 cm x 22.6cm) |
