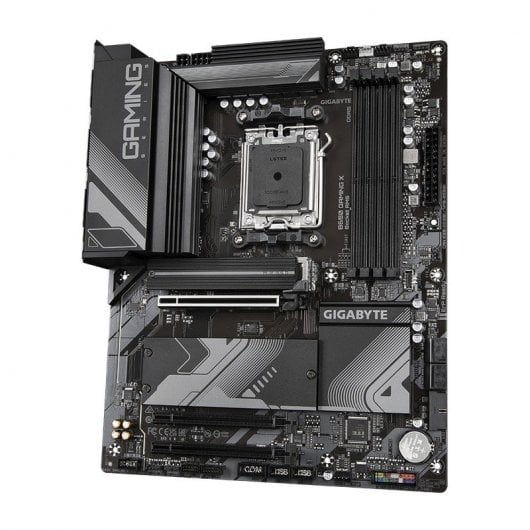

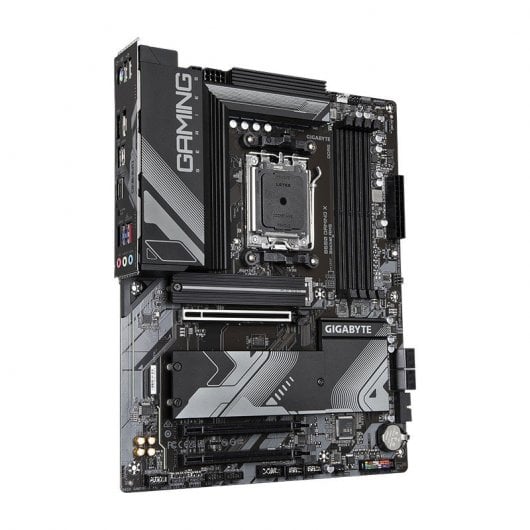

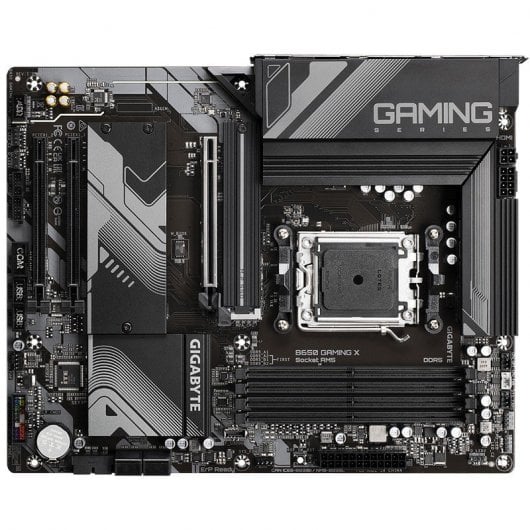

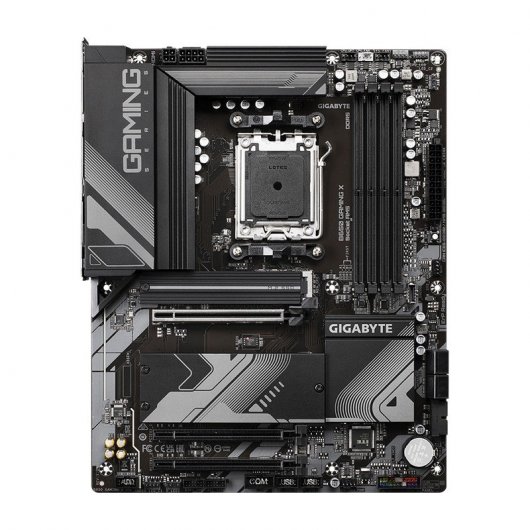

Placa Base Gigabyte B650 GAMING X

Con los rápidos cambios tecnológicos, GIGABYTE siempre sigue las últimas tendencias y brinda a los clientes funciones avanzadas y las últimas tecnologías. Las placas base GIGABYTE están equipadas con una solución de energía mejorada, los últimos estándares de almacenamiento y una conectividad excepcional para permitir un rendimiento optimizado para juegos.

Características:

• AMD Socket AM5: compatible con procesadores AMD Ryzen™ serie 7000
• Rendimiento incomparable: solución VRM digital directa de 8+2+1 fases
• DDR5 de dos canales: 4 DIMM SMD con compatibilidad con módulos de memoria AMD EXPO™ e Intel® XMP
• Almacenamiento SuperSpeed: 3 conectores PCIe 4.0 x4 M.2
• Diseño térmico avanzado y protección térmica M.2: para garantizar la estabilidad de energía VRM y el rendimiento SSD 25110 M.2
• PCIe x16 EZ-Latch con liberación rápida y diseño sin tornillos
• Redes rápidas: LAN de 2,5 GbE
• Conectividad extendida: DP, HDMI, USB-C® posterior de 10 Gb/s, USB-C® frontal de 20 Gb/s
• Smart Fan 6: cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

• Procesador
  • AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD B650
• Memoria
  • Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Gráficos Integrados
  • Integrated Graphics Processor:
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • * Support for DisplayPort 1.4 version and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version and HDCP 2.3.
  • ** Support native HDMI 2.1 TMDS compatible ports.
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Puertos de Expansión
  • CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
  • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
  • Interfaz de Almacenamiento
  • CPU:
  • 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU)
  • Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
  • CPU:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 1 x USB 3.2 Gen 1 port on the back panel
  • CPU + USB 2.0 Hub:
  • 3 x USB 2.0/1.1 ports on the back panel
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Conectores Internos de E/S
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 2 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

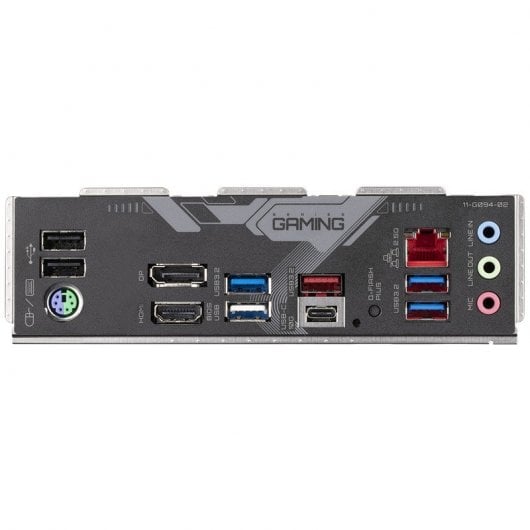

• Conectores del Panel Trasero
  • 1 x Q-Flash Plus button
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 3 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• Controlador de E/S
  • iTE® I/O Controller Chip
  • Monitorización H/W
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  • Support for GIGABYTE Control Center (GCC)
  • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Support for Q-Flash
  • Support for Q-Flash Plus
• Software Incluido
  • LAN bandwidth management software
• Sistema Operativo
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
• Diseño
  • ATX Form Factor; 30.5cm x 24.4cm
