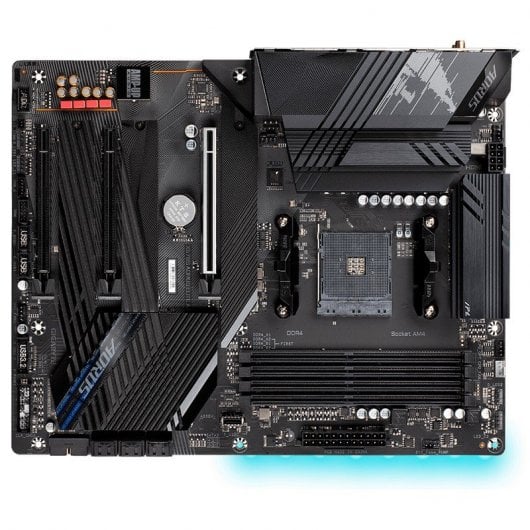

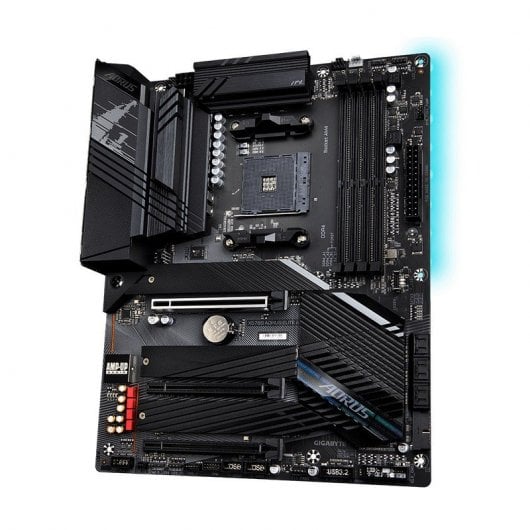

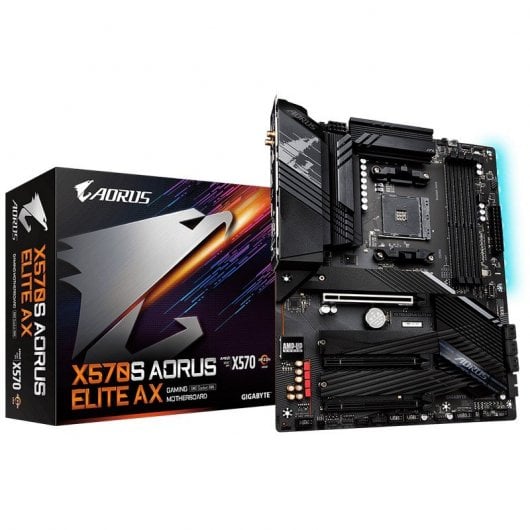

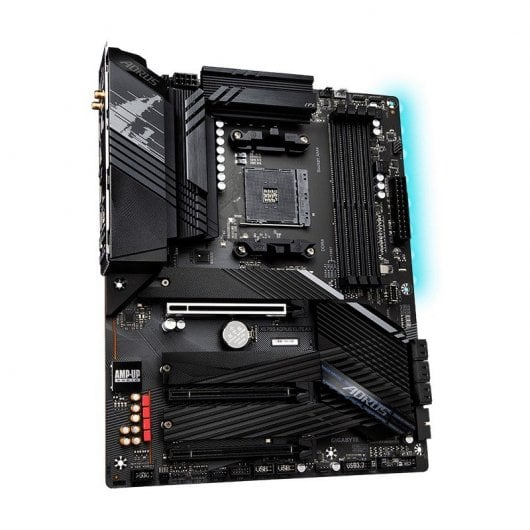

Placa Base Gigabyte X570S AORUS ELITE AX

Las placas base GIGABYTE X570S cuentan con una solución de energía mejorada, un diseño térmico pasivo y silencioso y componentes PCIe 4.0 para mantener su sistema de juego rápido y potente, incluso bajo cargas de trabajo pesadas.

Características:

• Admite procesadores AMD Ryzen ™ 5000 Series / Ryzen ™ 5000 G-Series / Ryzen ™ 4000 G-Series / Ryzen ™ 3000 Series / Ryzen ™ 3000 G-Series / Ryzen ™ 2000 Series / Ryzen ™ 2000 G-Series
• DDR4 sin búfer ECC / no ECC de doble canal, 4 DIMM
• Solución VRM digital gemela de 12 + 2 fases con DrMOS de 60 A
• Diseño térmico totalmente cubierto con disipadores de calor MOSFET de alta cobertura
• AMD WiFi 6E 802.11ax y BT 5.2
• Triple ultrarrápido NVMe PCIe 4.0 / 3.0 x4 M.2 con protectores térmicos
• LAN rápida de 2,5 GbE con gestión de ancho de banda
• SuperSpeed USB 3.2 Gen 2x2 TYPE-C® ofrece velocidades de transferencia de hasta 20 Gb / s
• Audio AMP-UP con condensadores de audio ALC1220-VB y WIMA
• Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras de LED direccionables y RGB
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones:

• Procesador
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • AMD X570
• Memoria
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  • * ECC memory (ECC mode) support varies by CPU
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Gráficos Integrados
  • Integrated Graphics Processor:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  • AMD Wi-Fi 6E RZ608 (MT7921K)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
  • (Actual data rate may vary depending on environment and equipment.)
• Puertos de Expansión
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
  • AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode
  • AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
  • Supporting PCIe 4.0(Note)/3.0 x4 mode
  • 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
  • Supporting PCIe 4.0(Note)/3.0 x2 mode
  • * The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode.
  • (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
• Tecnología Multi-Gráficos
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • (Note) For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only
• Interfaz de Almacenamiento
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
  • AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 2 x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
  • Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
  • 6 x SATA 6Gb/s connectors, integrated in the Chipset:
  • Support for RAID 0, RAID 1, and RAID 10
  • * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
• USB
  • CPU:
  • 4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • Chipset:
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • Chipset+2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos de E/S
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 3 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Thunderbolt™ add-in card connector
  • 1 x Clear CMOS jumper
  • ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

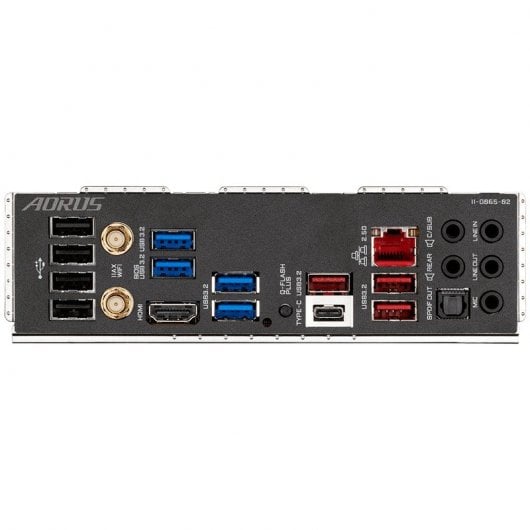

• Conectores del Panel Trasero
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 1 x Q-Flash Plus button
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 3 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• Controlador de E/S
  • iTE® I/O Controller Chip
  • Monitorización H/W
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Software Incluido
  • Norton® Internet Security (OEM version)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility
• Sistema Operativo
  • Support for Windows 10 64-bit
• Diseño
  • ATX Form Factor; 30.5cm x 24.4cm
