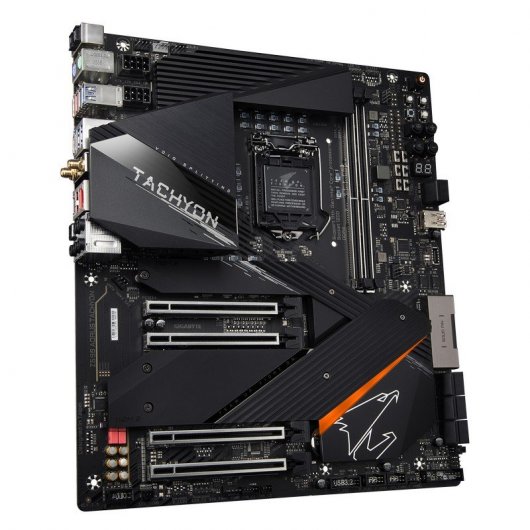

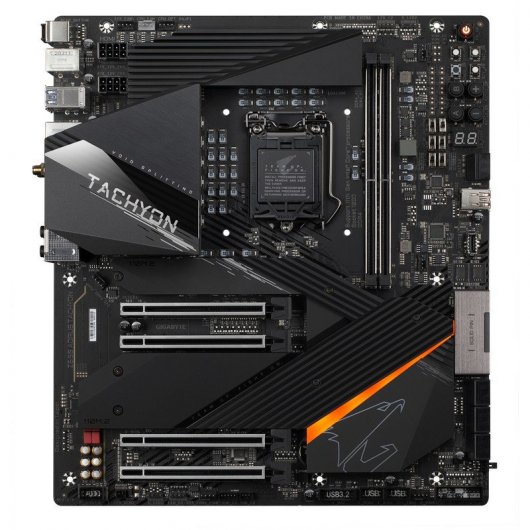

Placa Base Gigabyte Z590 AORUS TACHYON

Z590 AORUS TACHYON es el pináculo de la placa base de overclocking completamente diseñada por y para overclockers, que buscan continuamente romper el límite de rendimiento inimaginable. Su diseño VRM especializado, seguimiento de distribución de memoria y botones e interruptores de overclocking integrados permiten a los entusiastas del overclocking liberar todo el potencial del procesador Intel Core de última generación.

Características:

• Admite procesadores Intel® Core ™ Series de 11.a y 10.a generación
• DDR4 sin búfer no ECC de doble canal, 2 DIMM
• Solución VRM digital de 12 + 1 fases con matriz de condensadores de polímero de tantalio y DrMOS de 100 A
• MEMORIA XTREME con diseño 2-DIMM y enrutamiento de memoria blindado
• Exclusivo kit de overclocking integrado para overclocking extremo
• Intel® WiFi 6E 802.11ax 2T2R y BT 5 integrados con antena AORUS
• Amplificador de audio con condensadores de audio ALC1220 y WIMA
• LAN ultrarrápida Intel® 2.5GbE con cFosSpeed
• Triple ultrarrápido NVMe PCIe 4.0 * / 3.0 x4 M.2 con protectores térmicos
• SuperSpeed USB 3.2 Gen2x2 TYPE-C® ofrece velocidades de transferencia de hasta 20 Gb / s
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras de LED direccionables y RGB
• Smart Fan 6 cuenta con múltiples sensores de temperatura, cabezales de ventilador híbridos con FAN STOP y detección de ruido
• Q-Flash Plus actualiza el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

Especificaciones

• CPU
  • LGA1200 package:
  • 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  • 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
  • * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  • L3 cache varies with CPU
  • (Please refer to "CPU Support List" for more information.)
• Chipset
  • Intel® Z590 Express Chipset
• Memory
  • 11th Generation Intel® Core™ i9/i7/i5 processors:
  • Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel® Core™ i9/i7 processors:
  • Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  • Support for DDR4 2666/2400/2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.0 version and HDCP 2.3.
  • (Graphics specifications may vary depending on CPU support.)
• Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • Support for DTS:X® Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module
  • Intel® Wi-Fi 6E AX210
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  • * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  • (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
  • * Supported by 11th Generation processors only.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x16 slot, running at x1 (PCIEX1)
  • (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  • Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
  • CPU:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
  • * Supported by 11th Generation processors only.
  • Chipset:
  • 2 x M.2 connectors (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)(M2M_SB)
  • 6 x SATA 6Gb/s connectors (SATA3 0~5)
  • * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • Intel® Optane™ Memory Ready
  • ASMedia® ASM1061 chip:
  • 2 x SATA 6Gb/s connectors (SATA3 6,7), supporting IDE/AHCI mode only
• USB
  • Chipset:
  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  • 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • ASMedia® USB 3.2 Gen 2 controller:
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) onboard
  • Chipset+Realtek® USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back panel
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 8 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x noise detection header
  • 2 x Thunderbolt™ add-in card connectors
  • 1 x Clear CMOS jumper
  • 1 x power button (PW_SW)
  • 1 x reset button (RST_SW)
  • 1 x Clear CMOS button (CMOS_SW)
  • 2 x BIOS switches (BIOS_SW)(SB)
  • 1 x Cold Reset button (RTY_SW)
  • 1 x Protection Mode button (LIMP_MODE)
  • 1 x CPU Ratio up button (RATIO_UP)
  • 1 x CPU Ratio down button (RATIO_DW)
  • 1 x Profile A button (PROFILE_A)
  • 1 x Profile B button (PROFILE_B)
  • 1 x OC Trigger switch (TGR)
  • 1 x LN2 Mode switch (LN2_SW)
  • 1 x Enhanced LN2 Mode switch (LN2_OFFSET)
  • 1 x Reserved switch (RSV_SW)
  • ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

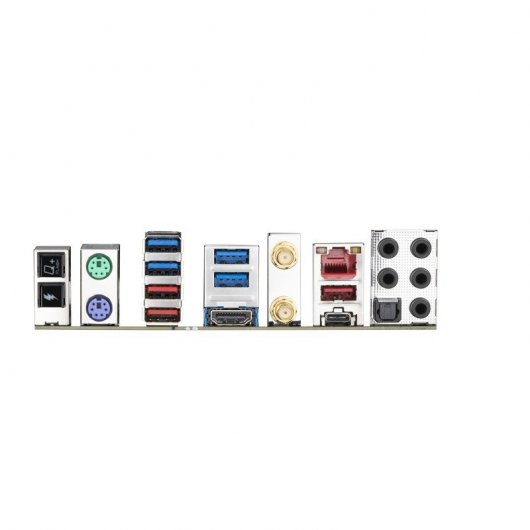

• Back Panel Connectors
  • 1 x Q-Flash Plus button
  • 1 x OC Ignition button
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  • 3 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
  • I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • Noise detection
• BIOS
  • 2 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • E-ATX Form Factor; 30.5cm x 27cm
