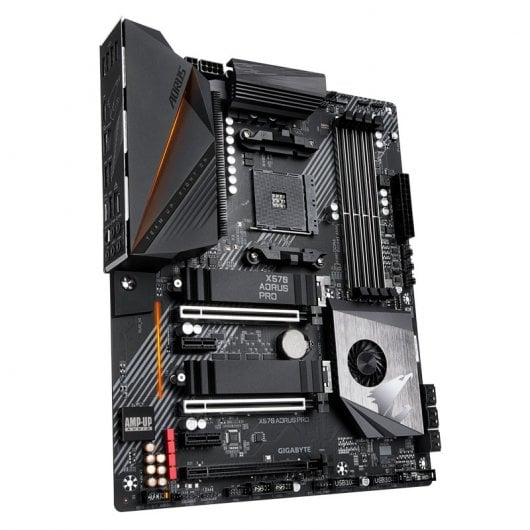

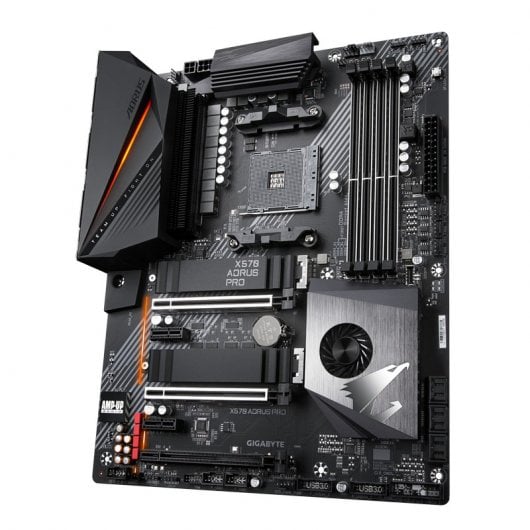

Gigabyte X570 Aorus Pro

Placa base AMD X570 AORUS con 12 + 2 fases VRM digital IR, disipador de calor de matrices y tubos de calor de contacto directo, doble PCIe 4.0 M.2 con protectores térmicos, LAN Intel® GbE con cFosSpeed, USB tipo C, RGB Fusion 2.0

En la noche oscura y sin estrellas, el halcón golpea el miedo en el corazón de su presa. Incluso con una visibilidad mínima, el halcón señala a su presa y anticipa pacientemente el momento perfecto para atacar y matar. El halcón, con su láser afilado, domina la oscuridad de la noche de la misma manera que AORUS Core Lighting ilumina el vasto ecosistema de AORUS.

Características:

• Soporta AMD 3ra generación Ryzen ? / 2da generación Ryzen ? / 2da generación Ryzen ? con Radeon ? Vega Graphics / Ryzen ? con Radeon ? Vega Graphics Processors
• DDR4 sin búfer sin canalización ECC de doble canal, 4 DIMM
• 12 + 2 Phases IR Digital VRM Solution con PowIRstage
• Diseño térmico avanzado con disipador de calor de matriz de aletas y tubo de calor de contacto directo
• NVMe PCIe 4.0 / 3.0 x4 M.2 ultrarrápido con doble protección térmica
• ALC1220-VB Mejora 114dB (trasero) / 110dB (delantero) SNR en micrófono con capacitores de audio WIMA
• Intel® Gigabit LAN con cFosSpeed Internet Accelerator
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionable multizona, compatible con LED direccionable y tiras de LED RGB
• Smart Fan 5 cuenta con varios sensores de temperatura, cabeceras de ventilador híbridas con parada de ventilador.
• Soporte para USB 3.1 Gen2 Type-C ? frontal y posterior y compatibilidad con HDMI 2.0
• Armadura de protección de E / S integrada
• Q-Flash Plus actualiza el BIOS sin instalar CPU, memoria y tarjeta gráfica

Especificaciones Gigabyte X570 Aorus Pro

• CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen? processors/ 2nd Generation AMD Ryzen? processors/ 2nd Generation AMD Ryzen? with Radeon? Vega Graphics processors/ AMD Ryzen? with Radeon? Vega Graphics processors
• Chipset: AMD X570
• Memory:
  • 3rd Generation AMD Ryzen? processors:
  • Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 2nd Generation AMD Ryzen? processors/AMD Ryzen? with Radeon? Vega Graphics processors:
  • Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • * ECC is only supported with AMD Ryzen? PRO-series CPU.
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
  • Maximum shared memory of 16 GB
  • Note: For 2nd Generation AMD Ryzen? with Radeon? Vega Graphics processors/AMD Ryzen? with Radeon? Vega Graphics processors only.
• Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN
  • Intel® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  • Integrated in the CPU (PCIEX16/PCIEX8):
  • · 3rd Generation AMD Ryzen? processors:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
  • · 2nd Generation AMD Ryzen? processors:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen? processors/2nd Generation AMD Ryzen? processors, the PCIEX16 slot operates at up to x8 mode.
  • · 2nd Generation AMD Ryzen? with Radeon? Vega Graphics processors/AMD Ryzen? with Radeon? Vega Graphics processors:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
  • Integrated in the Chipset (PCIEX4/PCIEX1):
  • 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
  • * For 3rd Generation AMD Ryzen? processors only.
  • 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
  • * For 3rd Generation AMD Ryzen? processors only.
• Multi-Graphics Technology
  • Support for NVIDIA® Quad-GPU SLI? and 2-Way NVIDIA® SLI? technologies
  • Support for AMD Quad-GPU CrossFire? and 2-Way AMD CrossFire? technologies
  • For 3rd Generation AMD Ryzen? processors/2nd Generation AMD Ryzen? processors only.
• Storage Interface
  • Integrated in the CPU (M2A_SOCKET):
  • · 3rd Generation AMD Ryzen? processors:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
  • · 2nd Generation AMD Ryzen? processors/2nd Generation AMD Ryzen? with Radeon? Vega Graphics processors/AMD Ryzen? with Radeon? Vega Graphics processors:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  • Integrated in the Chipset (M2B_SOCKET):
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
  • * For 3rd Generation AMD Ryzen? processors only.
  • 6 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• USB
  • Integrated in the CPU:
  • 3 x USB 3.2 Gen 1 ports on the back panel
  • 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel
  • * For 3rd Generation AMD Ryzen? processors only.
  • Chipset:
  • 1 x USB Type-C? port with USB 3.2 Gen 2 support, available through the internal USB header
  • 1 x USB Type-C? port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • Chipset+USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C? port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • 1 x Q-Flash Plus button
• Back Panel Connectors
  • 1 x HDMI port
  • 1 x USB Type-C? port, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red)
  • * For 3rd Generation AMD Ryzen? processors only.
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 3 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS?
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • Smart Keyboard
  • Smart Survey
  • System Information Viewer
  • USB Blocker
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
  • XSplit Gamecaster + Broadcaster (12 months license)
• Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm
