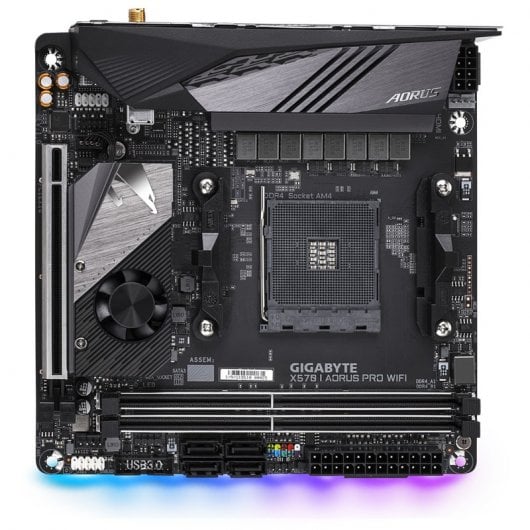

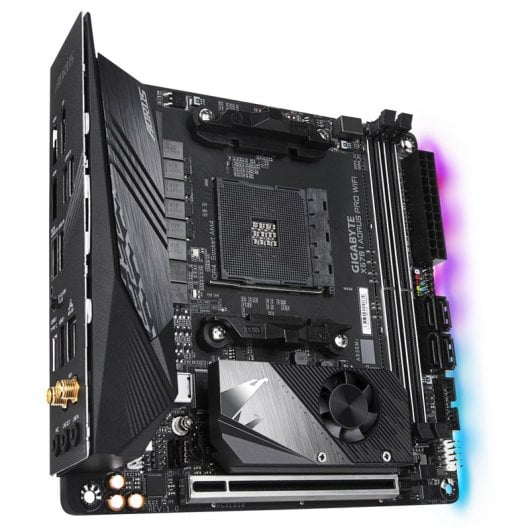

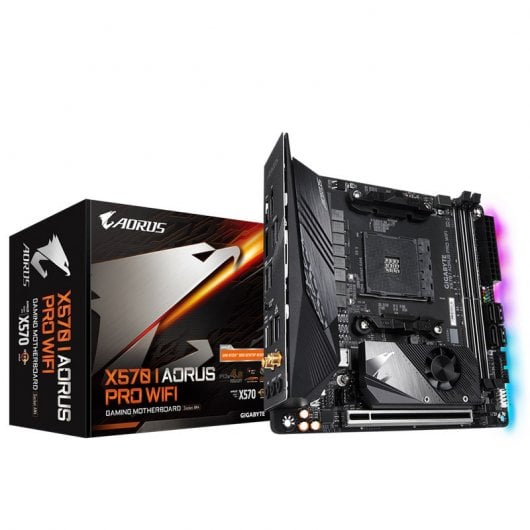

Gigabyte X570 I Aorus Pro WIFI

Placa base AMD X570 AORUS con Direct 8 Phases IR Digital VRM, diseño térmico avanzado con disipador de calor de múltiples capas y extendido, doble PCIe 4.0 M.2, protector térmico M.2, Intel® WiFi 6 802.11ax, LAN Intel GbE con cFosSpeed, USB 3.1 Gen2 Tipo-C, RGB Fusion 2.0

En la noche oscura y sin estrellas, el halcón golpea el miedo en el corazón de su presa. Incluso con una visibilidad mínima, el halcón señala a su presa y anticipa pacientemente el momento perfecto para atacar y matar. El halcón, con su láser afilado, domina la oscuridad de la noche de la misma manera que AORUS Core Lighting ilumina el vasto ecosistema de AORUS.

Características:

• Soporta AMD 3ra generación Ryzen ™ / 2da generación Ryzen ™ / 2da generación Ryzen ™ con Radeon ™ Vega Graphics / Ryzen ™ con Radeon ™ Vega Graphics Processors
• Doble canal ECC / sin ECC DDR4 sin búfer, 2 módulos DIMM
• Solución VRM digital IR de 8 fases directa con PowIRstage
• Diseño térmico avanzado con disipador de calor extendido y de múltiples capas
• NVMe PCIe 4.0 / 3.0 x4 M.2 ultrarrápido con una protección térmica
• Intel® WiFi 6 802.11ax 2T2R y BT 5
• ALC1220-VB Mejora 114dB (trasero) / 110dB (delantero) SNR en micrófono con capacitores de audio Nichicon
• Intel® GbE LAN con cFosSpeed Internet
• RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionable multizona, compatible con LED direccionable y tiras de LED RGB
• Smart Fan 5 cuenta con varios sensores de temperatura y cabeceras de ventilador híbridas con parada de ventilador.
• Compatible con USB 3.1 Gen2 Type-C ™ Header y HDMI 2.0
• Placa base integrada y blindaje de blindaje de E / S
• Q-Flash Plus actualiza el BIOS sin instalar CPU, memoria y tarjeta gráfica

Especificaciones Gigabyte X570 I Aorus Pro WIFI

• CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
• Chipset: AMD X570
• Memory:
  • 3rd Generation AMD Ryzen™ processors:
  • Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
  • Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  • * ECC is only supported with AMD Ryzen™ PRO-series CPU.
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor:
  • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  • * Support for DisplayPort 1.2 version.
  • 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
  • Support for up to 3 displays at the same time
  • Maximum shared memory of 16 GB
  • * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
• Audio
  • Realtek® ALC1220-VB codec
  • * The back panel line out jack supports DSD audio.
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  • Intel® GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication
  • Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5.0
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  • Integrated in the CPU (PCIEX16):
  • 3rd Generation AMD Ryzen™ processors:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • 2nd Generation AMD Ryzen™ processors:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
  • 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
  • Integrated in the Chipset:
  • 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
• Storage Interface
  • Integrated in the CPU (M2A_SOCKET):
  • 3rd Generation AMD Ryzen™ processors:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support)
  • 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
  • 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
  • Integrated in the Chipset (M2B_SOCKET):
  • 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support)
  • * For 3rd Generation AMD Ryzen™ processors only.
  • 4 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• USB
  • Integrated in the CPU:
  • 4 x USB 3.2 Gen 1 ports on the back panel
  • Integrated in the Chipset:
  • 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 2 x USB 2.0/1.1 ports available through the internal USB header
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x speaker header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper
• Back Panel Connectors
  • 1 x DisplayPort
  • 2 x HDMI ports
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 2 x SMA antenna connectors (2T2R)
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • AutoGreen
  • Cloud Station
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • Smart Keyboard
  • Smart Survey
  • System Information Viewer
  • USB Blocker
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • cFosSpeed
  • XSplit Gamecaster + Broadcaster (12 months license)
• Form Factor
  • Mini-ITX Form Factor; 17.0cm x 17.0cm
