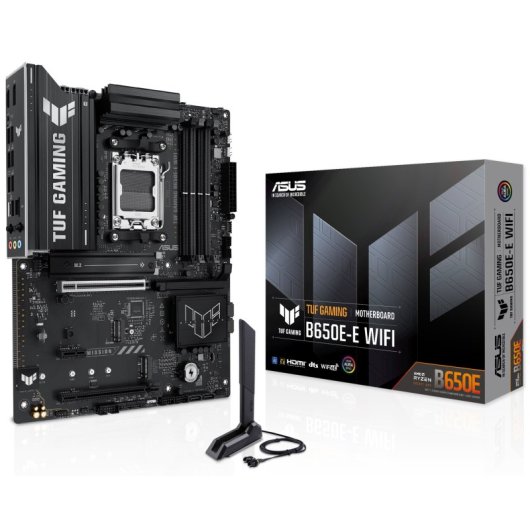

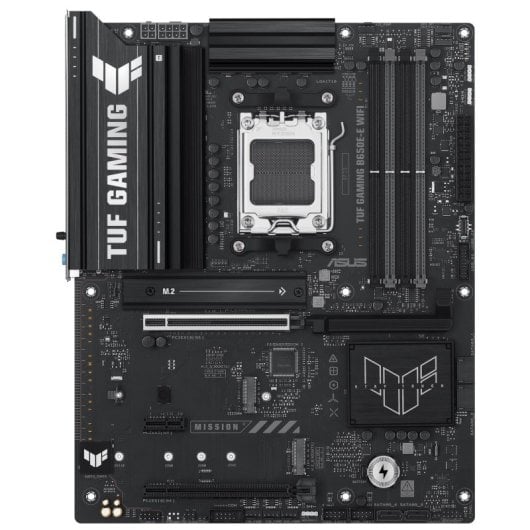

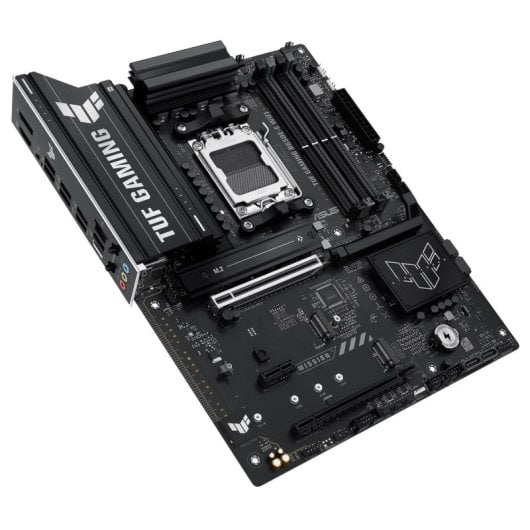

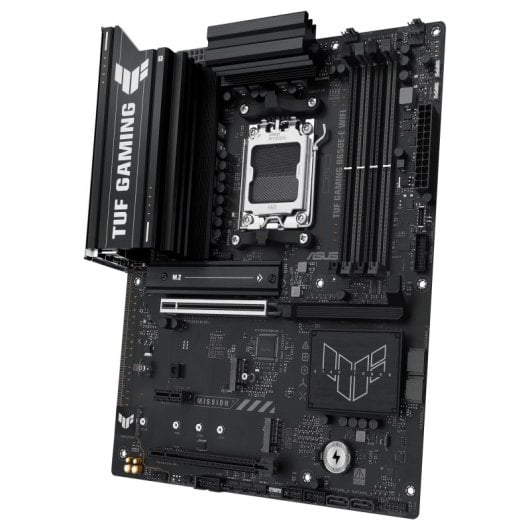

Placa Base ASUS TUF GAMING B650E-E WIFI PCIe 5.0

ASUS TUF GAMING B650E-E WIFI toma todos los elementos esenciales del último zócalo AM5 para procesadores de sobremesa AMD Ryzen™ y los combina con funciones listas para jugar y una durabilidad probada. Diseñada con componentes de grado militar, una solución de alimentación mejorada y un completo sistema de refrigeración, esta placa base supera las expectativas con un rendimiento sólido como una roca y estable para juegos maratonianos. Las placas base TUF GAMING también se someten a rigurosas pruebas de resistencia para garantizar que pueden soportar condiciones en las que otras podrían fallar. Estéticamente, este modelo incorpora resistentes elementos de diseño geométrico y negro apagado para reflejar la fiabilidad y estabilidad que definen a la serie TUF GAMING. Esta plataforma ofrece la potencia y la conectividad que exigen las aplicaciones informáticas avanzadas de IA.

Especificaciones ASUS TUF GAMING B650E-E WIFI

• CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Chipset     AMD B650 Chipset
• Memoria
  • 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Gráficos
  • 1 x DisplayPort**
  • 1 x HDMI™ port***
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
• Expansión
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  • AMD B650 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)
  • 1 x PCIe 4.0 x1 slot
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • ** Specifications vary by CPU types.
• Almacenamiento
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
  • AMD B650 Chipset
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
  • * Specifications vary by CPU types.
  • AMD RAIDXpert2 Technology
  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  • Ryzen™ 8000 Series Processors: RAID 0/1
  • Ryzen™ 7000 Series Processors: RAID 0/1/10
• Redes
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard

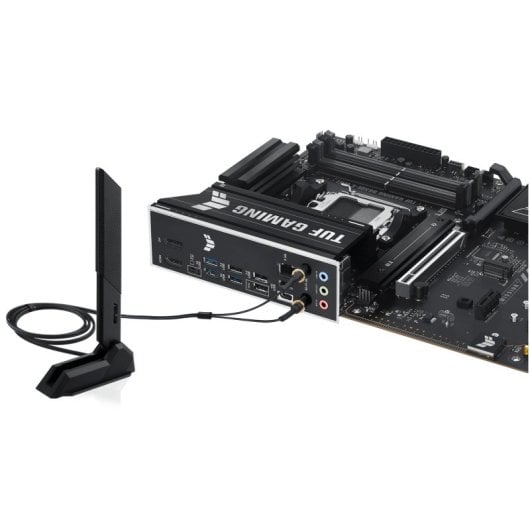

  • WIFI 6E 2x2
  • Bluetooth 5.3

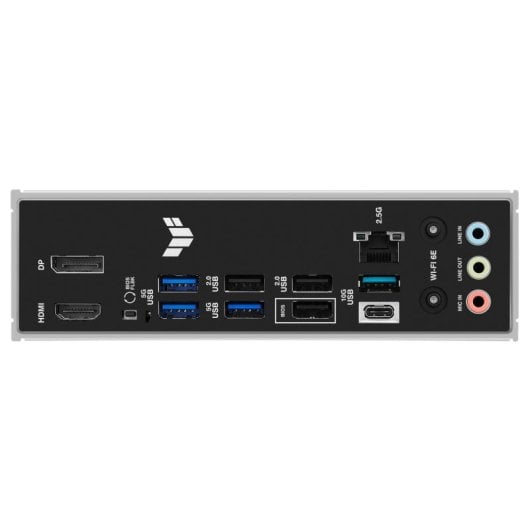

• Puertos Traseros
  • 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 3 x USB 2.0 ports (3 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Puertos Internos
  • Fan and Cooling Related

    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 4 x 4-pin Chassis Fan header
  • Power Related

    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V CPU Power connectors
    • 1 x 4-pin +12V CPU Power connectors
  • Storage Related

    • 3 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB

    • 1 x USB 20Gbps connector (supports USB Type-C® )
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous

    • 3 x Addressable RGB Gen 2 headers
    • 1 x Clear CMOS header
    • 1 x Chassis Intrusion header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x 10-1 pin Front Panel System header
• Generales
  • ASUS TUF PROTECTION
  • DIGI+ VRM
  • TUF LANGuard
  • Overvoltage protection
  • SafeSlot
  • Stainless-steel back I/O
  • ASUS Q-Design
  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-Antenna
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
  • ASUS Thermal Solution
  • Flexible M.2 heatsink
  • VRM heatsink design
  • ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Pre-mounted I/O shield
  • SafeDIMM
  • Aura Sync
  • Addressable RGB Gen 2 headers
• Físicas
  • ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Dimensiones: 305mm*244mm*48mm
  • Peso: 1.21kg
