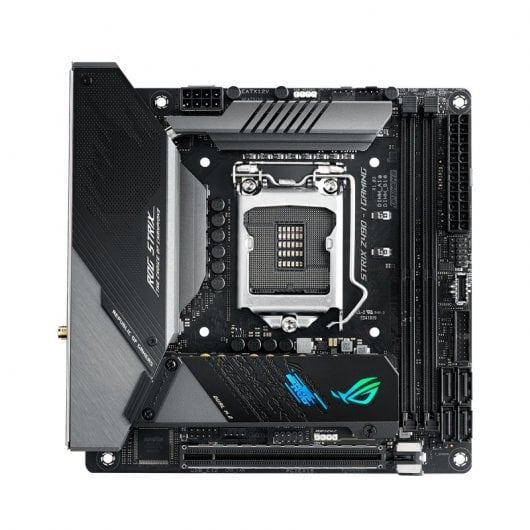

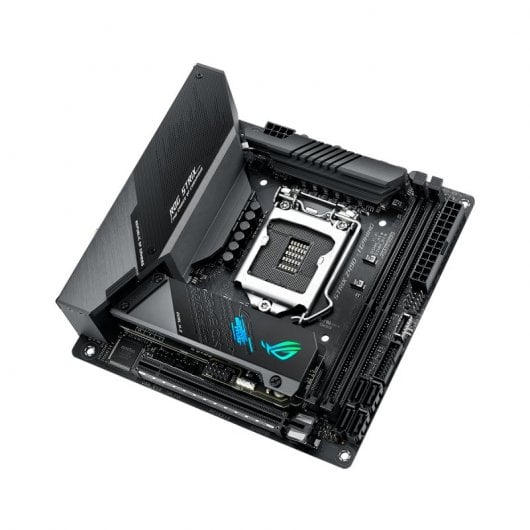

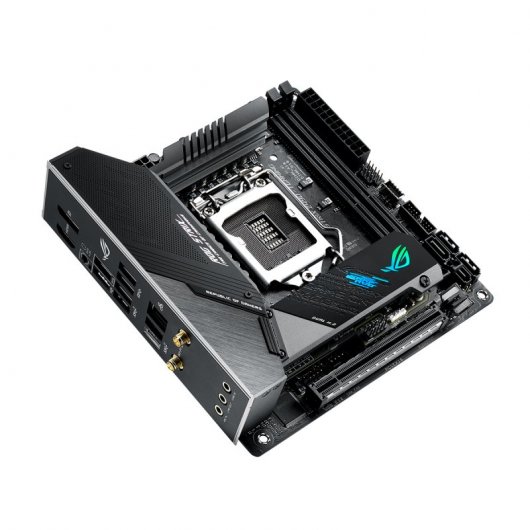

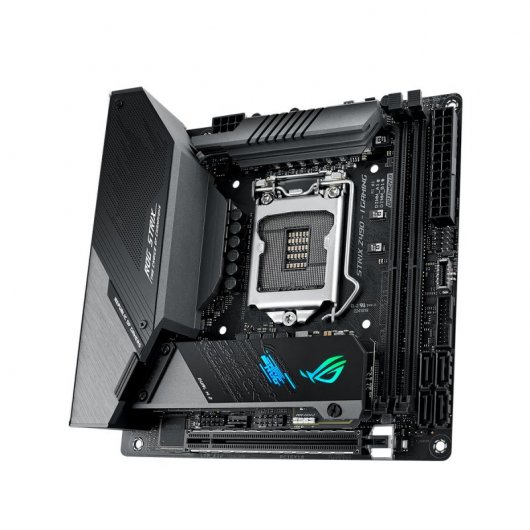

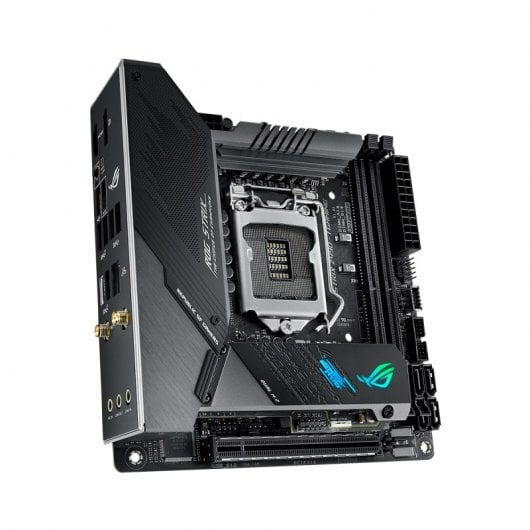

Asus ROG STRIX Z490-I GAMING

Placa base de gaming mini-ITX Intel® Z490 LGA 1200 con 10 etapas de potencia, DDR4 4800, overclocking, refrigeración y redes asistidas por IA, Wi-Fi 6 (802.11ax), Ethernet Intel® 2.5 Gb, USB 3.2 Gen. 2, SATA e iluminación AURA Sync RGB

Características:

• Zócalo LGA 1200 para la 10.ª Gen. de procesadores Intel® Core™.
• Suministro energético optimizado: 8+2 etapas de potencia con tomas de alimentación ProCool II, bobinas choke y condensadores de alta calidad para los nuevos procesadores de múltiples núcleos.
• Diseño térmico optimizado: Ventilador Delta Superflo, Disipador MOS con caloducto en forma de L y un disipador de tres pisos para optimizar la refrigeración.
• Redes de alto rendimiento: Intel® Wi-Fi 6 AX201 (802.11 ax) y Ethernet Intel® 2,5 Gb con ASUS LANGuard.
• La mejor conectividad gaming: Salidas HDMI 2.0 y DisplayPort 1.4 y conectores USB 3.2 Gen. 2 de tipo A y C.
• Control inteligente: Las herramientas asistidas por IA de overclocking, refrigeración y redes te ayudan a configurar tu sistema sin complicaciones.
• DIY fácil: Cajetín de E/S, BIOS FlashbackTM, Q-LEDs y SafeSlot.
• Personalización sin igual: Iluminación Aura Sync RGB con conectores RGB y direccionables de 2.ª Gen.
• El sonido líder de la industria gaming: SupremeFX S1220A de alta fidelidad, DTS® Sound Unbound y Sonic Studio II para que te sumerjas en la acción como nunca antes.

Especificaciones:

• CPU
  • Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list
  • **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z490
• Memory
  • 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800(O.C.)/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  • Integrated Graphics Processor
  • 1 x DisplayPort 1.4 **
  • 1 x HDMI 2.0a
  • *Graphics specifications may vary between CPU types.
  • **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Expansion Slots
  • Intel® 10th Gen Processors
  • 1 x PCIe 3.0 x16 (x16 mode) *1
• Storage
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Z490 Chipset :
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  • 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
  • 4 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 5, 10
  • Intel® Optane™ Memory Ready
• LAN
  • Intel® I225-V 2.5Gb Ethernet
  • ASUS LANGuard
• Wireless Data Network
  • Intel® Wi-Fi 6 AX201
  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports CNVI interface
  • Bluetooth
  • Bluetooth v5.1*
  • *BT 5.1 function will be ready in Windows 10 build 19041 or later.
• Audio
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  • - Dual OP Amplifiers
  • - Impedance sense for front and rear headphone outputs
  • - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • - Supports up to 32-Bit/192kHz playback *
  • LED-illuminated audio jacks
  • Audio Feature :
  • - Audio Shielding
  • - Premium Japanese audio capacitors
  • * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports
  • Rear USB Port ( Total 8 )
  • 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®)
  • 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  • 2 x USB 2.0 port(s)(2 x Type-A)
  • Front USB Port ( Total 5 )
  • 1 x USB 3.2 Gen 2 front panel connector port(s)
  • 2 x USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 port(s)
• Software Features
  • ROG Exclusive Software
  • - RAMCache III
  • - ROG CPU-Z
  • - GameFirst VI
  • - Sonic Studio III + Sonic Studio Virtual Mixer
  • - Sonic Radar III
  • - DTS® Sound Unbound
  • - Overwolf
  • - Anti-virus software
• ASUS Exclusive Software
  • Armoury Crate
  • - Aura Creator
  • - Aura Sync
  • AI Suite 3
  • - 5-Way Optimization with AI Overclocking
  • TPU
  • EPU
  • Digi+ VRM
  • Xpert 4
  • Turbo app
  • - EZ update
  • WinRAR
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • FlexKey
  • ASUS Special Features
  • ASUS Q-Design
  • - ASUS Q-DIMM
  • - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green])
  • - ASUS Q-Slot
  • ASUS Thermal Solution
  • - Aluminum M.2 heatsink
  • ASUS EZ DIY
  • - BIOS FlashBack™ button
  • - BIOS FlashBack™ LED
  • - Procool II
  • - Pre- mounted I/O shield
  • - SafeSlot
  • AURA Sync
  • - Standard RGB header
  • - Addressable Gen 2 RGB header

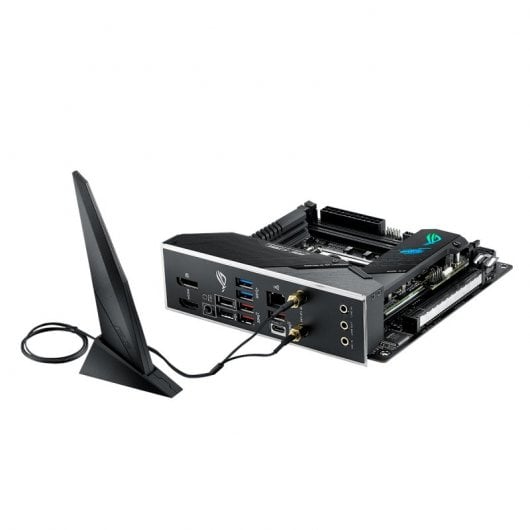

• Back I/O Ports
  • 1 x Intel® I225-V 2.5Gb Ethernet
  • 1 x DisplayPort
  • 1 x HDMI
  • 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
  • 2 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
  • 1 x USB BIOS FlashBack™ Button(s)
  • 1 x ASUS Wi-Fi Module
  • 3 x LED-illuminated audio jacks
• Internal I/O Ports
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x Aura RGB Strip Header
  • 1 x Addressable Gen 2 header(s)
  • 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 4 x SATA 6Gb/s connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x Internal speaker connector(s)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt)
  • 1 x Clear CMOS jumper(s)
  • 1 x Thermal sensor connector
  • 1 x USB 3.2 Gen 2 front panel connector
  • 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

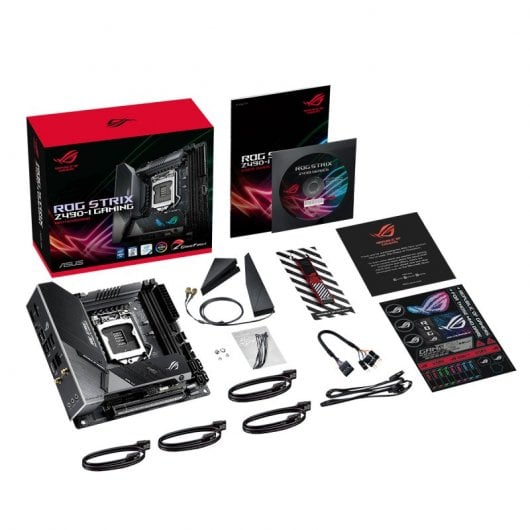

• Accessories
  • User's manual
  • 4 x SATA 6Gb/s cable(s)
  • 2 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x CABLE TIE BLACK
  • 1 x ROG Strix stickers
  • 1 x Extension cable for Addressable LED
  • 1 x Panel cable
  • 1 x ROG Thank you card
  • 1 x Wi-Fi moving antenna
  • 1 ROG key chain
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 10 64-bit
• Form Factor
  • Mini ITX Form Factor
  • 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
