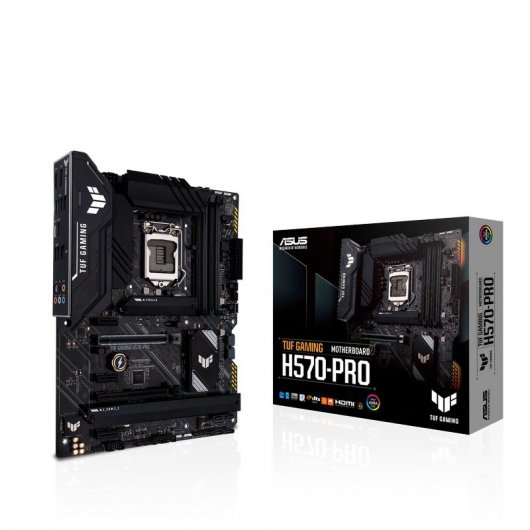

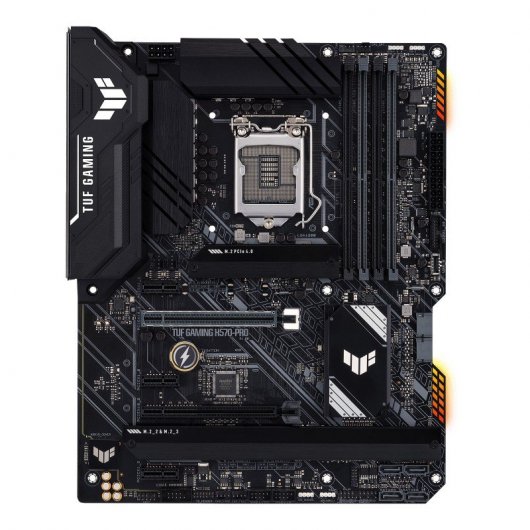

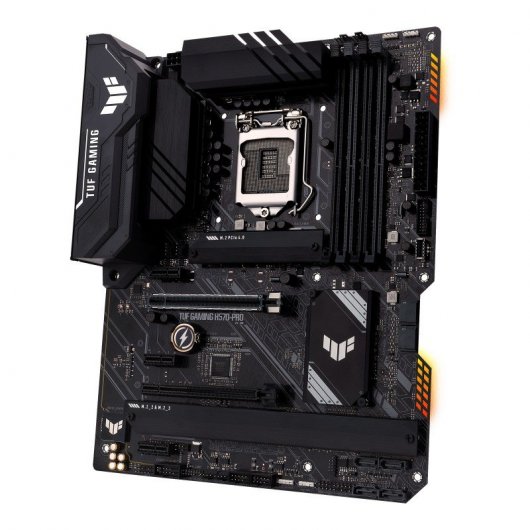

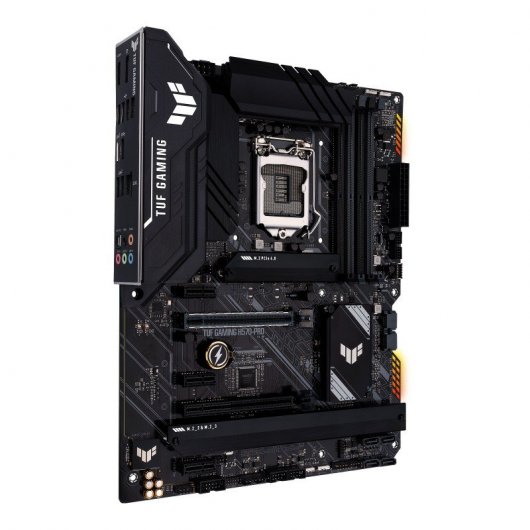

Asus TUF GAMING H570-PRO

ASUS TUF GAMING H570-PRO toma todos los elementos esenciales de los últimos procesadores Intel® y los combina con características listas para juegos y durabilidad comprobada. Diseñada con componentes de grado militar, una solución de energía mejorada y un sistema de enfriamiento integral, esta placa base ofrece un rendimiento estable y sólido como una roca para juegos de maratón. Estéticamente, TUF GAMING H570-PRO luce el nuevo logotipo de TUF Gaming e incorpora elementos de diseño geométrico simples para reflejar la confiabilidad y estabilidad que define la serie TUF Gaming.

Características:

• Zócalo Intel® LGA 1200: listo para procesadores Intel® Core ™ de 11.a y 10.a generación
• Solución de potencia mejorada: 8 + 1 etapas de potencia DrMOS, PCB de seis capas, toma ProCool, componentes TUF de grado militar y Digi + VRM para una máxima durabilidad
• Refrigeración completa: disipador de calor VRM ampliado, disipador de calor sin ventilador PCH, disipadores de calor M.2, cabezales de ventilador híbridos y utilidad Fan Xpert 4
• Conectividad de próxima generación: PCIe 4.0, USB 3.2 Gen 2x2 Type-C® trasero, cabezal de panel frontal para USB 3.2 Gen 1 Type-C® y compatibilidad con Thunderbolt 4 ™
• Hecho para juegos en línea: Realtek 2.5 Gb Ethernet, TUF LANGuard y tecnología TurboLAN
• Cancelación de ruido bidireccional AI: reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias
• Códec Realtek S1200A: calidad de audio impecable con una relación señal-ruido sin precedentes de 108 dB para salida de línea estéreo y SNR de 103 dB para entrada de línea

Especificaciones:

• CPU
  • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® H570 Chipset
• Memory
  • Memory Channels:4DDR4 (Dual channel)
  • Max Memory Size:128GB
  • DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
  • * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Graphics
  • 1 x DisplayPort 1.4**
  • 1 x HDMI™ 2.0**
  • * Graphics specifications may vary between CPU types.
  • ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
  • *** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
• Expansion Slots
  • 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
  • Intel® 11th & 10th Gen Processors
  • 1 x PCIe 4.0/3.0 x16 slot*
  • - Intel® 11th processors support PCIe 4.0 x16
  • - Intel® 10th processors support PCIe 3.0 x16
  • Intel® H570 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 3 x PCIe 3.0 x1 slots
  • * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
• Storage
  • Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
  • Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel®11th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
  • - Only Intel® 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  • Intel® H570 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  • 6 x SATA 6Gb/s ports
  • * Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
  • ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
  • *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
• USB
  • Rear USB:Total 8 ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio
  • Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Rear optical S/PDIF out port
  • - Premium Japanese audio capacitors
  • - Dedicated audio PCB layers
  • - Audio cover

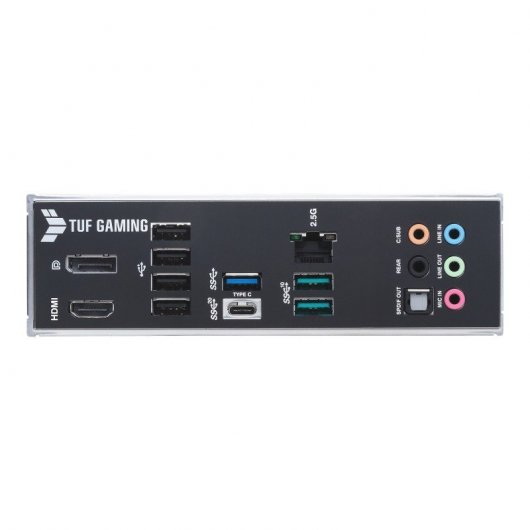

• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 2 x USB 3.2 Gen 2 ports (2 x Type-A)
  • 1 x USB 3.2 Gen 1 port (1 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
• Internal I/O Connectors
  • 1 x Thunderbolt 4 header
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
  • 2 x AURA Addressable Gen 2 headers
  • 2 x AURA RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude functionpasting
  • 1 x Thunderbolt™  header
• Special Features
  • ASUS TUF PROTECTION
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - Enhanced DRAM Overcurrent Protection
  • - TUF LANGuard
  • - Overvoltage Protection
  • ASUS Q-Design
  • - M.2 Q-Latch
  • - Q-DIMM
  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • - Q-Slot
  • ASUS Thermal Solution
  • - M.2 heatsink
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • - Pre-mounted I/O shield
  • - SafeSlot
  • AURA Sync
  • - AURA RGB headers
  • - Addressable Gen 2 RGB headers
  • Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Creator
  • - AURA Sync
  • - Two-Way AI Noise Cancelation
  • AI Suite 3
  • - Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • Fan Xpert 4
  • - EZ update
  • TUF GAMING CPU-Z
  • AI Charger
  • ASUS Turbo LAN
  • DAEMON Tools
  • DTS Custom for GAMING Headsets
  • MyASUS
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 2 x M.2 Rubber Packages
  • 2 x M.2 SSD screw packages
  • 1 x TUF Gaming sticker
  • Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x TUF Certification card
  • 1 x User manual
• Operating System
  • Windows 10 64bit
• Form Factor
  • ATX
  • 30.5cm x 24.4cm
