Gigabyte H410M H

Placa madre Intel® H410 Ultra Durable con LAN de juegos GIGABYTE 8118, resistencia anti-azufre, ventilador inteligente 5

Características:

• Admite procesadores Intel®Core ™ de décima generación
• DDR4 sin búfer sin ECC de doble canal, 2 DIMM
• Audio HD de 8 canales con condensadores de audio de alta calidad
• LAN exclusiva para juegos 8118 de GIGABYTE con gestión de ancho de banda
• Smart Fan 5 presenta múltiples sensores de temperatura y encabezados de ventilador híbridos con FAN STOP
• Centro de aplicaciones GIGABYTE, uso simple y fácil
• Diseño de resistencias anti-azufre

Especificaciones:

• CPU
  • Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
  • L3 cache varies with CPU
  • (Please refer "CPU Support List" for more information.)
• Chipset
  • Intel® H410 Express Chipset
• Memory
  • Intel® Core™ i9/i7 processors:
  • Support for DDR4 2933/2666/2400/2133 MHz memory modules
  • Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  • Support for DDR4 2666/2400/2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  • Integrated Graphics Processor-Intel® HD Graphics support:
  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
  • * Support for HDMI 1.4 version and HDCP 2.3.
  • Maximum shared memory of 512 MB
• Audio
  • Realtek® ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
  • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots
  • 1 x PCI Express x16 slot, running at x16
  • 2 x PCI Express x1 slots
  • (The PCI Express slots conform to PCI Express 3.0 standard.)
  • Storage Interface
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
  • 4 x SATA 6Gb/s connectors
  • * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• USB
  • Chipset:
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 1 x M.2 Socket 3 connector
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper

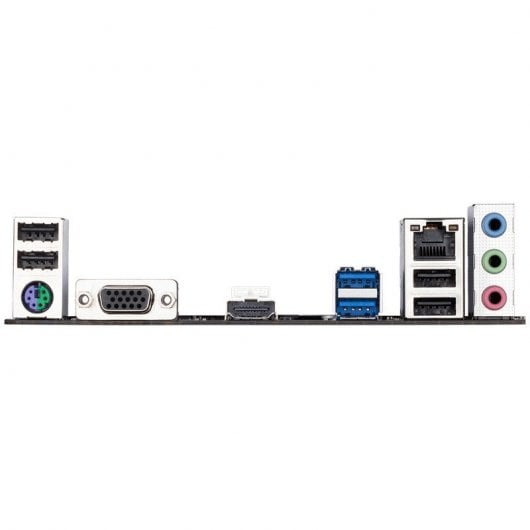

• Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • Ambient LED
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
• Operating System
  • Support for Windows 10 64-bit
• Form Factor
  • Micro ATX Form Factor; 22.6cm x 17.4cm
